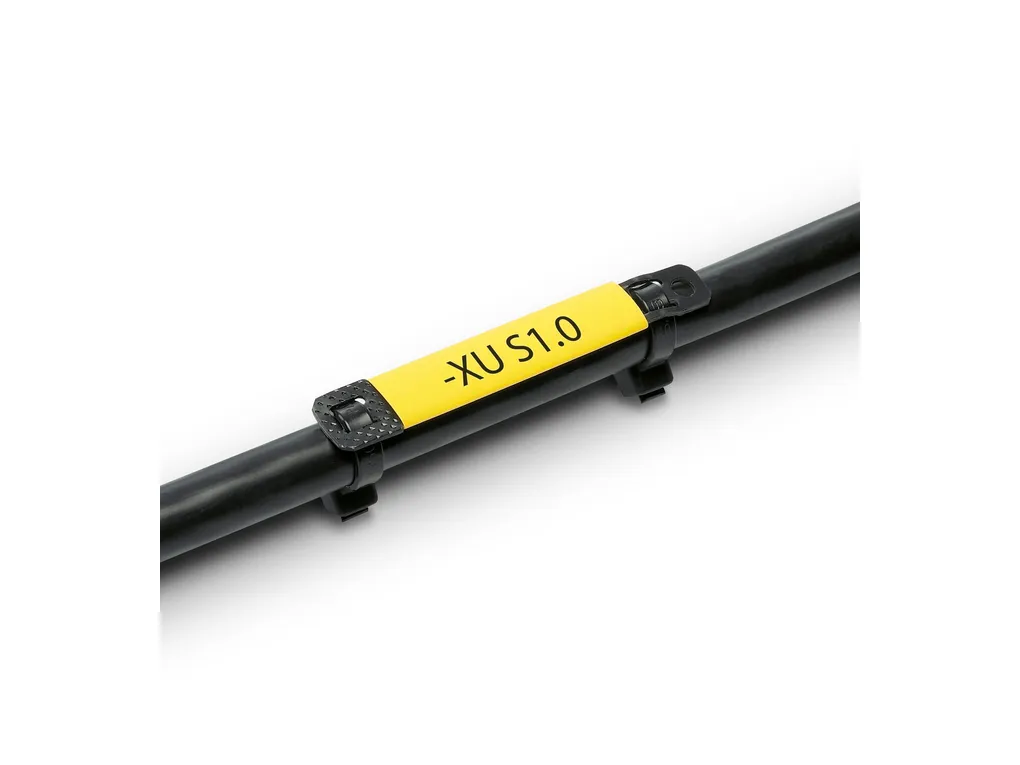

| Product properties | Product type: Labeled conductor marker Type: Marking strip/label Marking Printing direction: horizontal Printing: Symbols |
| Mounting | Mounting type: slide-on |
| Material specifications | Color: yellow Material: Stainless steel Flammability rating according to UL 94: V2 Components: Free from silicone and cadmium |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 2.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -30°C ... 60°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Dimensions | Width: 4.3 mm Length: 11.3 mm External dimensions Outside diameter: > 16 mm ... 305 mm |
| Standards and regulations | Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1) |
| Notes | General: Please specify the required marking with order: Minimum order per imprint: 1 packing unit |
