0830936 PHOENIX CONTACT -

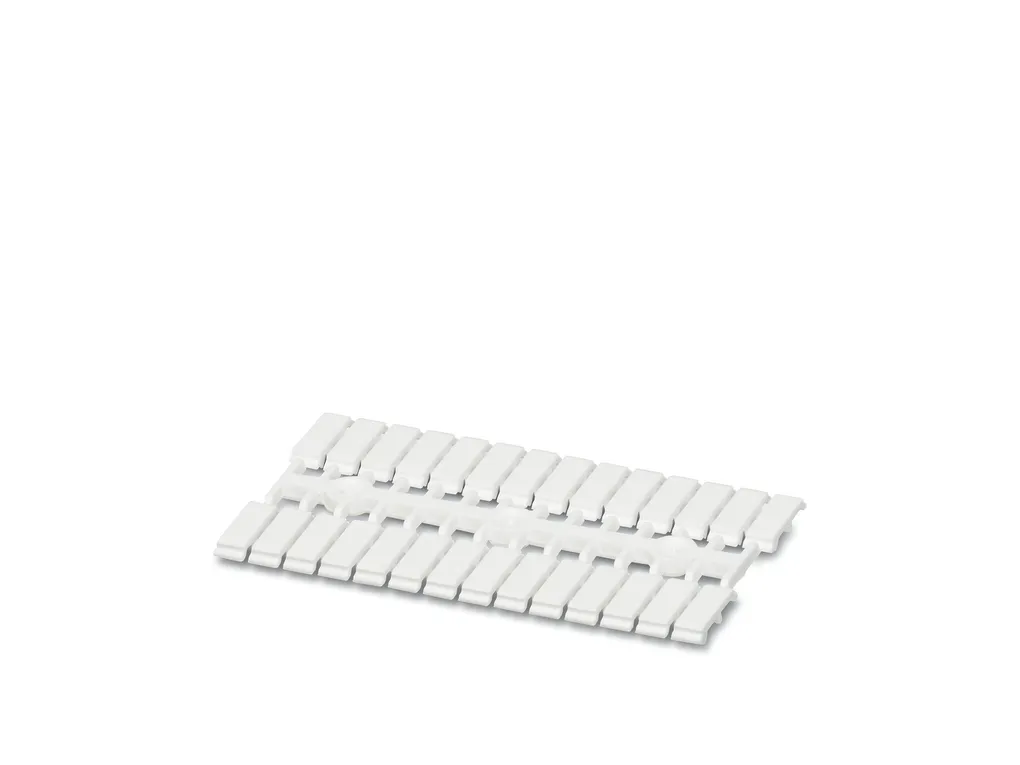

UM2-TM (3,5X10) - Marker for terminal blocks

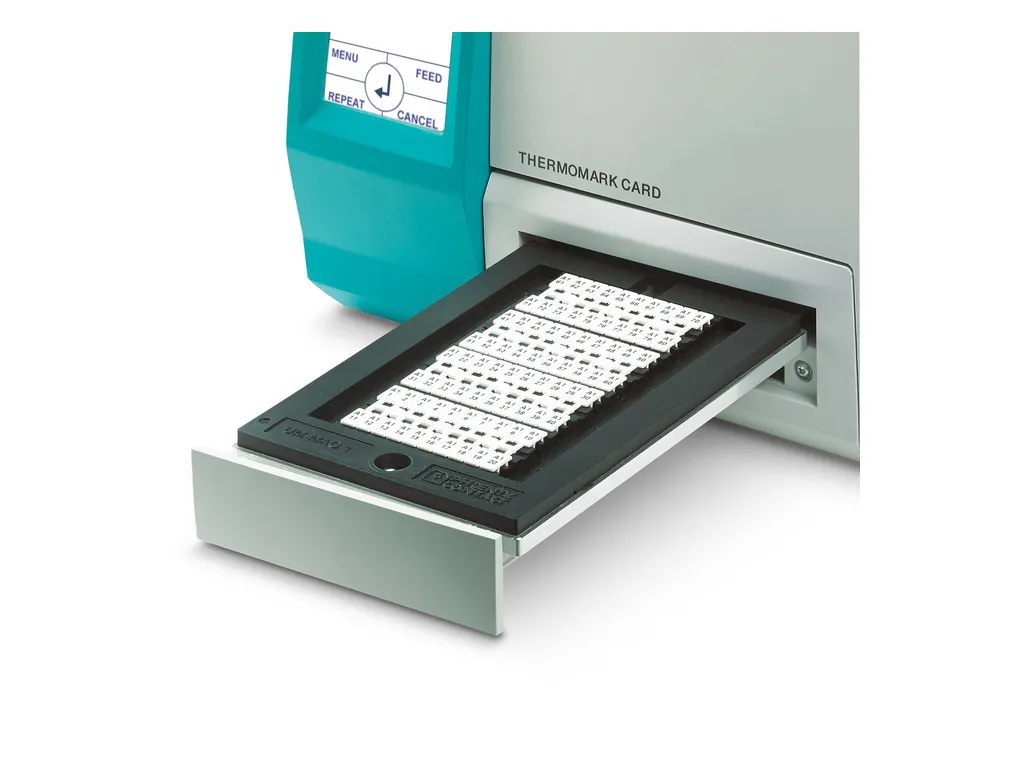

Marker for terminal blocks, Strip, white, unlabeled, can be labeled with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 3.5 mm, lettering field size: 3.5x10mm, Number of individual labels: 34

Cod. Articolo: 0830936 copia - copy

Cod. Fornitore: 0830936 copia - copy

PHOENIX CONTACT

Product properties	Product type: Terminal marking Pitch: 3.5 mm Type: high Area of application: Wago Marking Number of individual labels: 34 Number of individual labels per row: 17 Number of marker strips: 2
Dimensions	Width: 3.5 mm Length: 10 mm Pitch: 3.5 mm
Material specifications	RoHS compliant: yes Color: white Material: PC Flammability rating according to UL 94: V2 Components: free from silicone, halogen, and cadmium
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: IEC 61010-1:2010-06 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 %
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: snapped
