0831206 PHOENIX CONTACT -

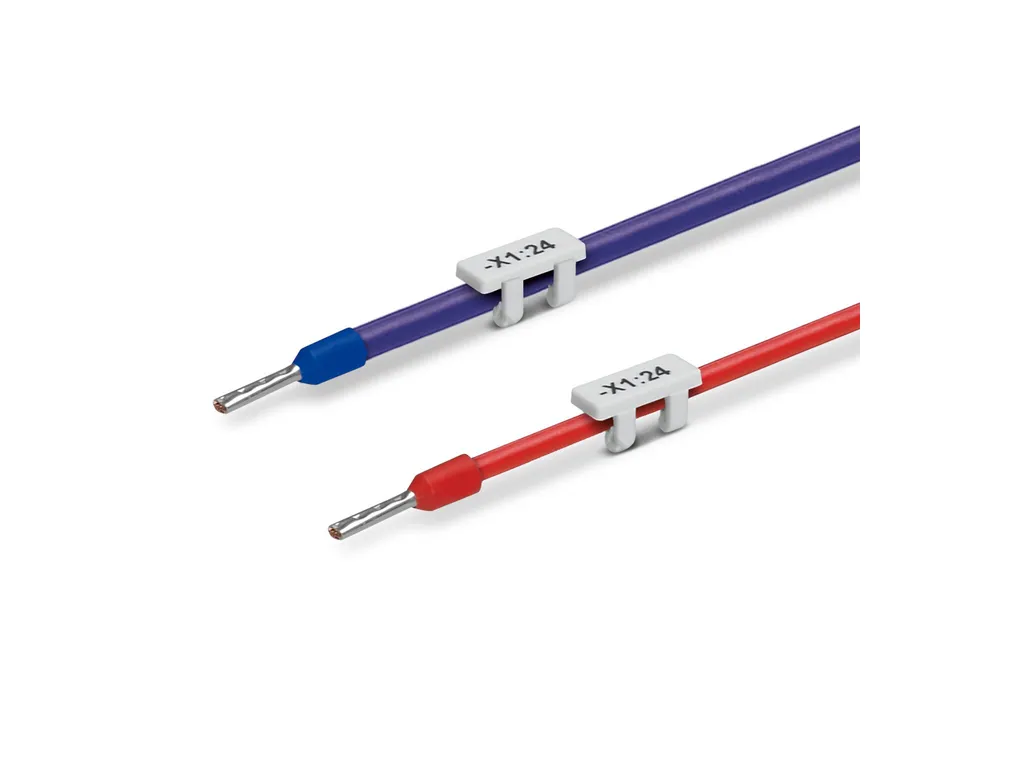

UCT-WMCO 3,5 (12X4) YE - Wire marking

Wire marking, Sheet, yellow, unlabeled, can be labeled with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: clip on, cable diameter range: 2.9 ... 3.5 mm, lettering field size: 12x4mm, Number of individual labels: 32

Cod. Articolo: 0831206 copia - copy

Cod. Fornitore: 0831206 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Card form Marking Number of individual labels: 32 Number of individual labels per row: 8
Dimensions	Width: 4 mm Length: 12 mm External dimensions Outside diameter: 2.9 mm ... 3.5 mm
Material specifications	RoHS compliant: yes Color: yellow Material: PC Flammability rating according to UL 94: V0 Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Components: free from silicone, halogen, and cadmium
Cable/line	External cable diameter: 2.9 mm ... 3.5 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended storage conditions: 23Ã°C/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 %
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: clip on
