Disponibile

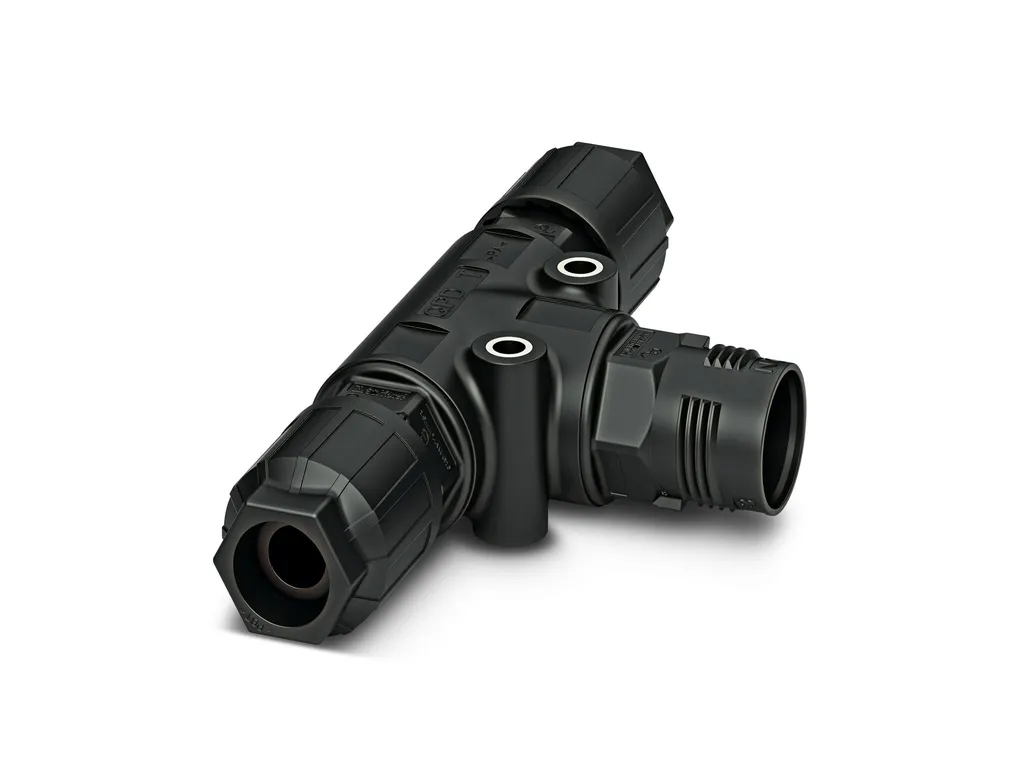

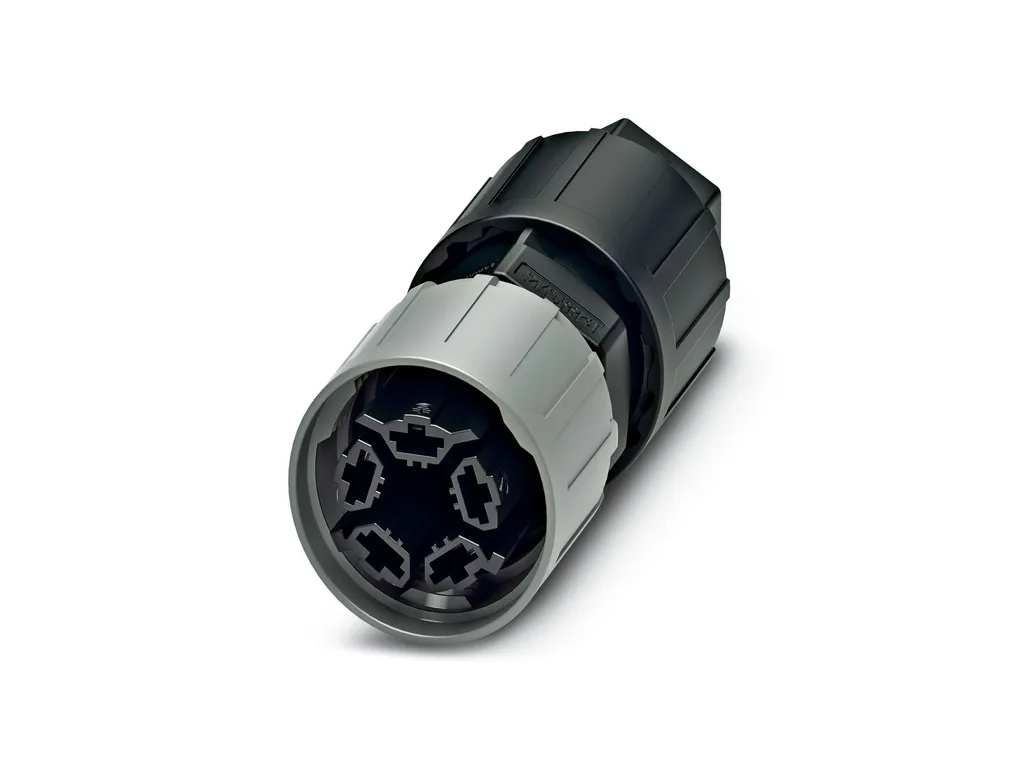

| Product properties | Product type: Installation connector Product family: QPD Type: QPD 5x2,5 Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Number of connections: 10 Number of connections per position: 1 Data management status Article revision: 02 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 20 A Contact resistance: < 4 mé rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage UN: 690 V Nominal current IN: 20 A |

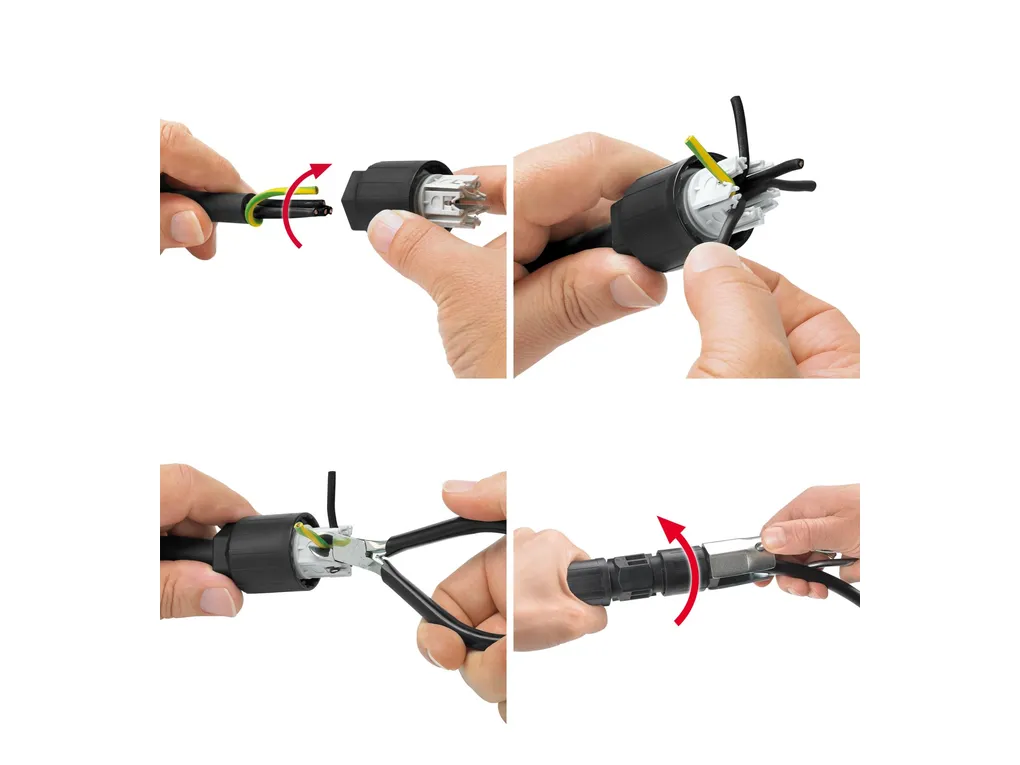

| Connection data | Connection technology Connection method On the field side: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 1 mm² ... 2.5 mm² Conductor cross section solid: 1 mm² ... 2.5 mm² Connection cross section AWG: 16 ... 14 Tightening torque Union nut: 10 Nm Wrench size Union nut: 27 mm |
| Dimensions | Width: 34.6 mm Height: 39.1 mm Length: 87.8 mm Diameter: 39.1 mm |
| Material specifications | Color: black (RAL 9005) Material Housing: PA Material Contact: Cu Material Contact surface: silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC/PE/TPE/rubber |
| Cable/line | Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter: 9 mm ... 16 mm Wire diameter including insulation: 2 mm ... 3.8 mm Position marking: 1, 2, 3, N, PE Material wire insulation: PVC/PE/TPE/rubber |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: max. 50 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2 m / 24 h) IP69K Touch-proof when not plugged in (IP2X) Impact strength: IK07 Ambient temperature (operation): -40 °C ... 100 °C Temperature when conductor connected: -5 °C ... 50 °C Ambient temperature (storage/transport): -40 °C ... 100 °C |
