1002940 PHOENIX CONTACT -

ST 4-QUATTRO OG - Feed-through terminal block

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 4, connection method: Spring-cage connection, 1 level, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: orange

Cod. Articolo: 1002940 copia - copy

Cod. Fornitore: 1002940 copia - copy

PHOENIX CONTACT

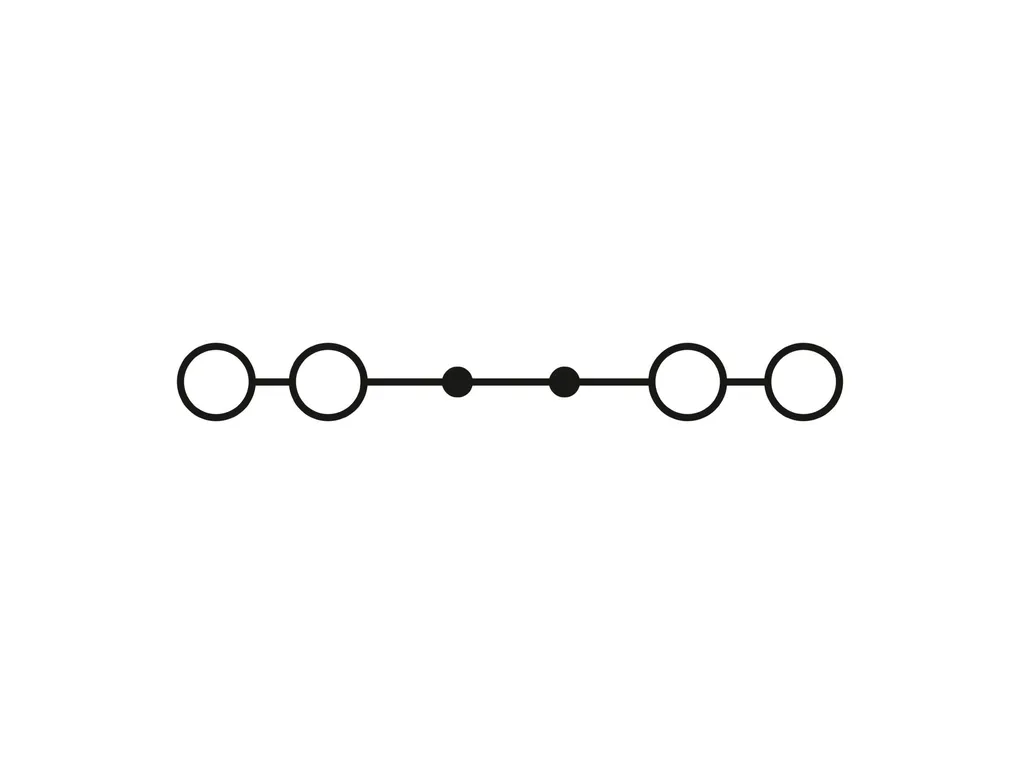

Product properties	Product type: Multi-conductor terminal block Area of application: Railway industry Machine building Plant engineering Process industry Number of connections: 4 Number of rows: 1 Potentials: 1 Data management status Article revision: 04 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.02 W
Connection data	Number of connections per level: 4 Nominal cross section: 4 mm² 1 level Stripping length: 8 mm ... 10 mm Internal cylindrical gage: A4 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.08 mm² ... 6 mm² Cross section AWG: 28 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.08 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 28 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 4 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Nominal current: 32 A (with 6 mm² conductor cross section) Maximum load current: 40 A (In the case of a 6 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors) Nominal voltage: 800 V Nominal cross section: 4 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯Ã II 2 GD Ex eb IIC Gb Operating temperature range: -60 °C ... 110 °C Ex-certified accessories: 3030527 D-ST 4-QUATTRO 3030815 ATP-ST QUATTRO 3036615 DS-ST 4 1204517 SZF 1-0,6X3,5 3022276 CLIPFIX 35-5 3022218 CLIPFIX 35 List of bridges: Plug-in bridge / FBS 2-6 / 3030336 Plug-in bridge / FBS 3-6 / 3030242 Plug-in bridge / FBS 4-6 / 3030255 Plug-in bridge / FBS 5-6 / 3030349 Plug-in bridge / FBS 10-6 / 3030271 Plug-in bridge / FBS 20-6 / 3030365 Bridge data: 28 A / 4 mm² Ex temperature increase: 40 K (31.6 A / 4 Ã¼Ã¼²) Rated voltage: 550 V for bridging with bridge: 550 V - At bridging between non-adjacent terminal blocks: 352 V - At bridging between non-adjacent terminal blocks via PE terminal block: 352 V - At cut-to-length bridging with cover: 220 V - At cut-to-length bridging with partition plate: 275 V Rated insulation voltage: 500 V output: (Permanent) Ex level General Rated current: 27.5 A Maximum load current: 34.5 A Contact resistance: 0.78 mÃ© Ex connection data General Nominal cross section: 4 mm² Rated cross section AWG: 12 Connection capacity rigid: 0.08 mm² ... 6 mm² Connection capacity AWG: 28 ... 10 28 ... 12 Connection capacity flexible: 0.08 mm² ... 4 mm²
Dimensions	Width: 6.2 mm End cover width: 2.2 mm Height: 87 mm Depth on NS 35/7,5: 36.5 mm Depth on NS 35/15: 44 mm
Material specifications	Color: orange (RAL 2003) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NS 35/15
