| Product properties | Product type: Sensor/actuator cable Number of positions: 4 Application: External areas No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Number of positions: 4 Coding type: A |

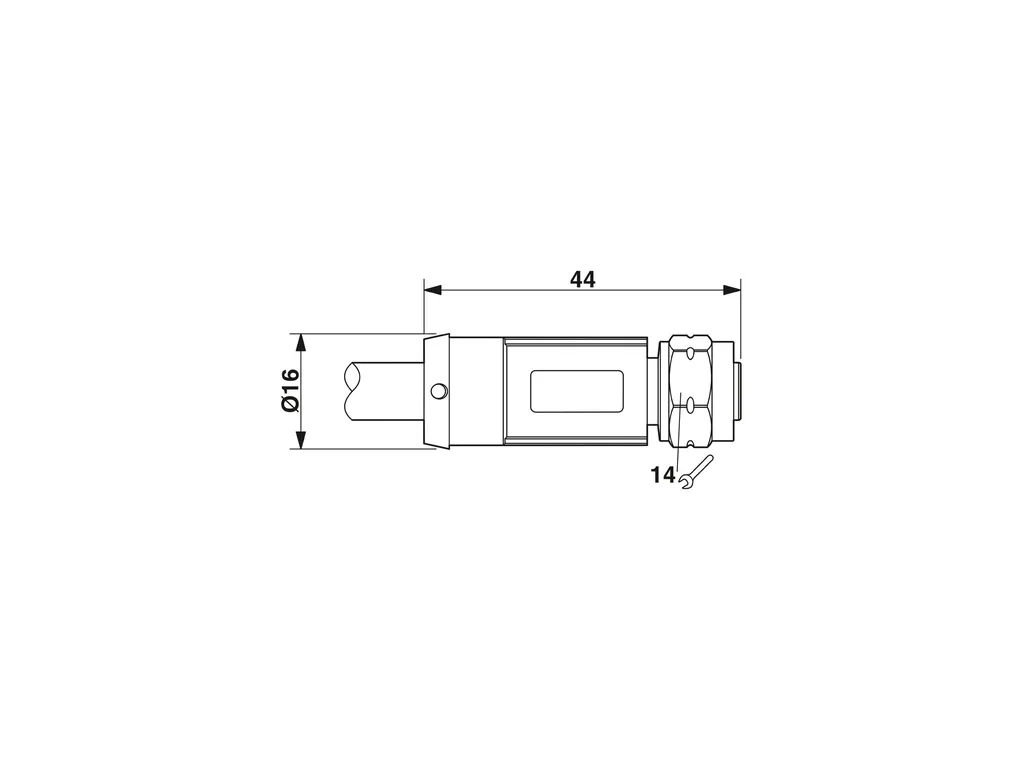

| Cable/line | Cable length: 40 m PE-X blackÃ[28X] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/35d5603bd215894c9b5cab8d64a37164/-S204x204-FJPG Cable weight: 74 kg/km Number of positions: 4 Shielded: yes Cable type: PE-X blackÃ[28X] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 4x 0.5 mm² (Signal line) Wire diameter incl. insulation: 1.6 mm ñ0.05 mm (Signal line) External cable diameter: 6.8 mm ñ0.2Ãmm Outer sheath, material: PE-X External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PE-X Single wire, color: brown, white, blue, black Thickness, insulation: approx. 0.3 mm (Core insulation) approx. 0.7 mm (Outer cable sheath) approx. 0.45 mm (Inner sheath) Overall twist: 4 wires, twisted Length of twist, overall twist: 108.8 mm Optical shield covering: 85 % Max. conductor resistance: ââ°¤ 39 é/km (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Cable capacity: ââ°¤ 100 nF/km (Conductor-conductor, asymmetrical/touching) ââ°¤ 85 nF/km (Conductor-conductor, symmetrical/star quad) ââ°¤ 150 nF/km (Wire/shield) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 68 mm Max. bending cycles: 1000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: according to DINÃ60332-1-2 according to DINÃENÃ50266-2-5 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: UV resistant according to DINÃVDEÃ0276-605 Special properties: Irradiated Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -15°C ... 105°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP68 Ambient temperature (operation): -40°C ... 105°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
