1012273 PHOENIX CONTACT -

MCC 0,5/ 9-ST-2,54 - PCB connector

PCB connector, nominal cross section: 0.75 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact connection type: Socket, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MCC 0,5/..-ST, pitch: 2.54 mm, connection method: Crimp connection, conductor/PCB connection direction: 0°, plug-in system: COMBICON FMC 0,5, locking: without, mounting: without, type of packaging: packed in cardboard

Cod. Articolo: 1012273 copia - copy

Cod. Fornitore: 1012273 copia - copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Connectors XS Product type: PCB connector Product family: MCC 0,5/..-ST Number of positions: 9 Pitch: 2.54 mm Number of connections: 9 Number of rows: 1 Number of potentials: 9
Electrical properties	Nominal current I_N: 6 A Nominal voltage U_N: 160 V Degree of pollution: 3 Contact resistance: 2.1 mÃ© Rated voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 320 V Rated surge voltage (II/2): 2.5 kV
Connection data	Connection technology Type: Standard Connector system: COMBICON FMC 0,5 Nominal cross section: 0.75 mm² Contact connection type: Socket Interlock Locking type: without Mounting flange: without Conductor connection Connection method: Crimp connection Conductor/PCB connection direction: 0° Conductor cross section flexible: 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9Ãmm) Conductor cross section AWG: 26 ... 18 (Maximum external diameter of the insulation 1.9Ãmm) Stripping length: 4.1 mm ... 4.5 mm
Material specifications	Material data - housing Color (Housing): black (9005) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG Pitch: 2.54 mm Width [w]: 36.36 mm Height [h]: 3.95 mm Length [l]: 16 mm
Mounting	Connection method: Crimp connection
Notes	Note on the contact: The information on the basic material and the finish properties of the crimp contacts is to be found in the E-Shop in the technical data for the respective crimp contact. Note on application: All laboratory tests are performed in combination with the crimp contacts specified as accessories. The current depends on the crimp contact and conductor cross section used. The corresponding crimp contacts are to be found in the "Accessories" tab. The crimp contacts may only be processed with approved crimping tools.
Mechanical tests	Tensile strength of crimp connections Result: Test passed Conductor cross section/conductor type/tractive force setpoint/actual value: 0.14 mm² / flexible / > 18 N Insertion and withdrawal forces Result: Test passed No. of cycles: 100 Insertion strength per pos. approx.: 2 N Withdraw strength per pos. approx.: 3 N Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed

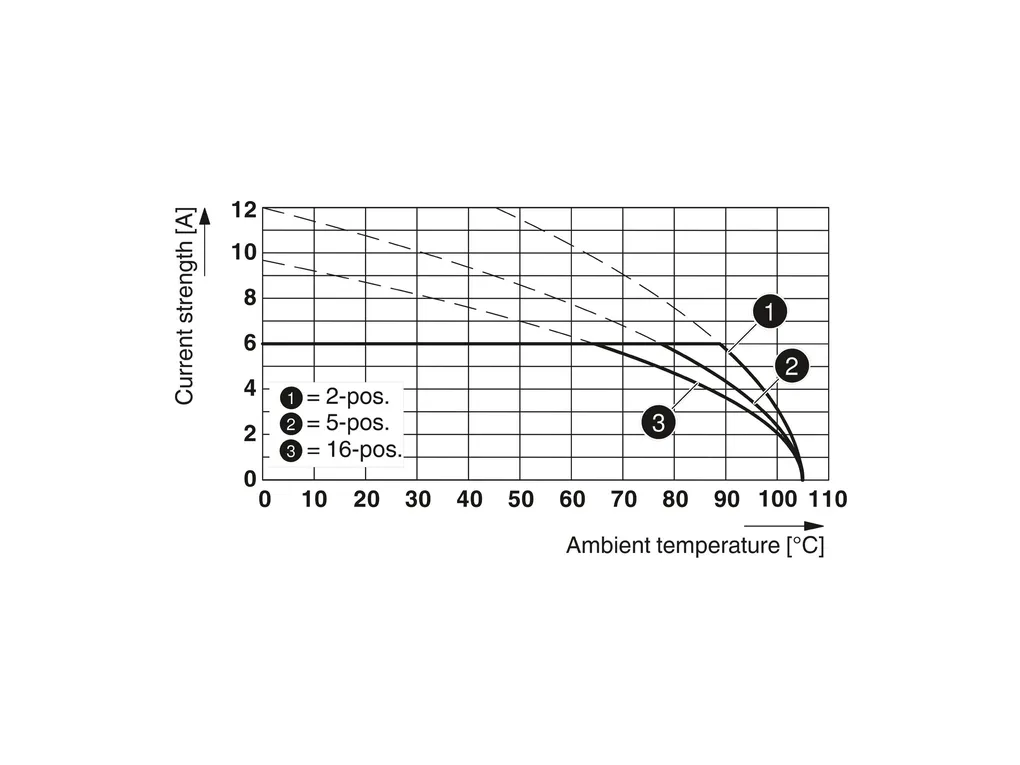

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 500 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã500ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 2.1 mÃ© Contact resistance R₂: 2.1 mÃ© Insertion/withdrawal cycles: 100 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Climatic test Specification: DINÃ50018:2013-05 Corrosive stress: 1.0 dm³ SO₂ on 300 dm³/40°C/1 cycle Thermal stress: 105Ã°C/168Ãh Power-frequency withstand voltage: 1.39 kV Ambient conditions Ambient temperature (operation): -40°C ... 100°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 16 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 2 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 0.8 mm Rated insulation voltage (II/2): 320 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 1.6 mm
Packaging specifications	Type of packaging: packed in cardboard
