PHOENIX CONTACT 1013418
PHOENIX CONTACTNon disponibile

MCC 0,5-MP AU 0,34-0,75 R - Crimp contact

Crimp contact, nominal current: 6 A, contact connection type: Socket, connection method: Crimp connection, contact surface: Gold, type of packaging: Belt
Cod. Articolo: 1013418 copia - copy
Cod. Fornitore: 1013418 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
MountingConnection method: Crimp connection
Product propertiesProduct type: Crimp contact
Product family: MCC 0,5-MP
Pitch: 0 mm
Connection dataConnection method: Crimp connection
Contact connection type: Socket
Stripping length: 4.1 mm ... 4.5 mm
Conductor cross section flexible: 0.34 mm² ... 0.75 mm²
Conductor cross section AWG: 22 ... 18
Material specificationsContact surface: Gold Au
Contact surface material: Gold
Metal surface terminal point (top layer): Tin (3 - 6 µm Sn)
Metal surface contact area (top layer): Gold (0.25 Au)
DimensionsPitch: 0 mm
Electrical propertiesNominal current IN: 6 A
Packaging specificationsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5c9d0417f989e646afbbef42108ede86/-S204x204-FJPG
Type of packaging: Belt
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05483.pdf

Package_slip_00903.pdf

Package_slip_01582.pdf

Technical_drawing_05366.pdf

Altri prodotti correlati

Di seguito alcuni articoli correlati a quello che stai vedendo

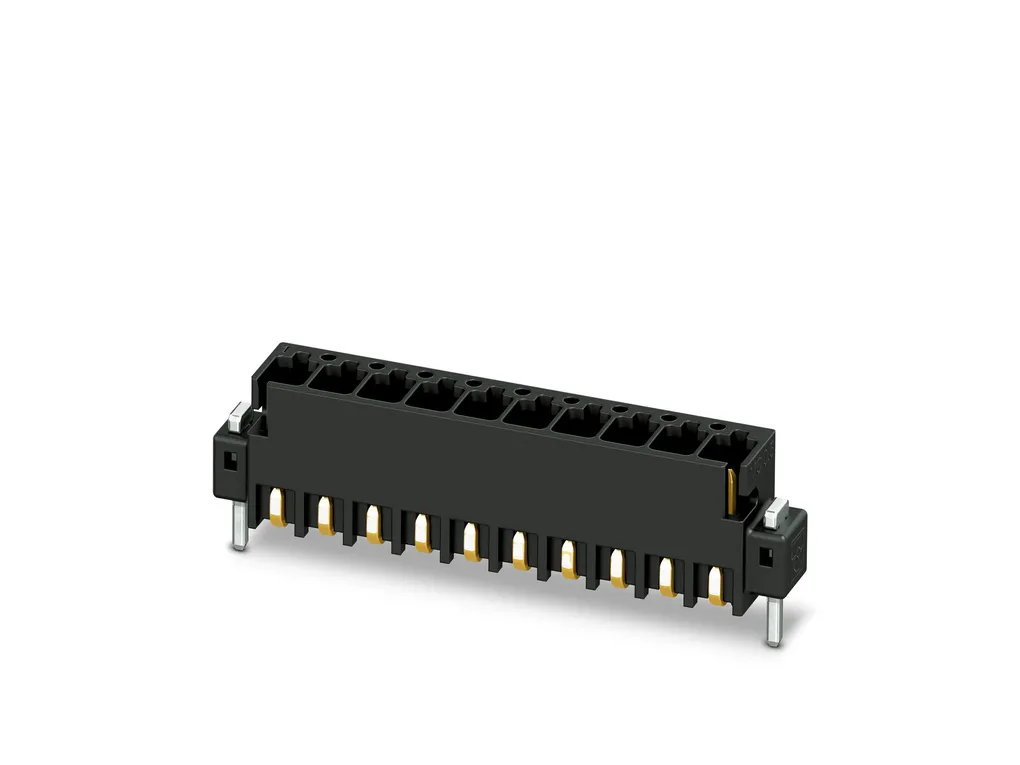

PHOENIX CONTACT 1821779
