| Notes | General: Can be labeled with CMS |
| Product properties | Product type: Conductor marking Marking Number of individual labels: 20 Number of individual labels per row: 1 |

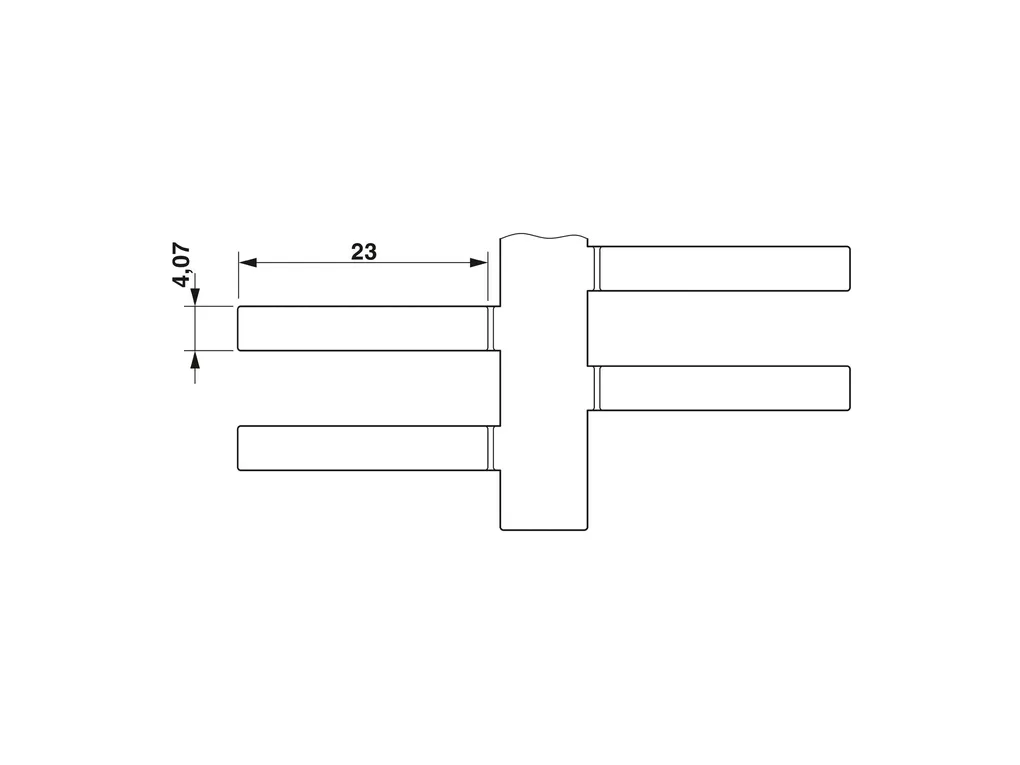

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/27d3b3290f79784e8fd7622788939ec7/-S204x204-FJPG Width: 23 mm Length: 4 mm |
| Material specifications | Color: white Material: ABS Flammability rating according to UL 94: V0 |
| Cable/line | External cable diameter: 1.5 mm ... 35 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed Scratch test for the determining scratch resistance Specification: DINÃENÃISOÃ1518-1:2019-10 (following) Requirements: ââ°¥Ã5ÃN Result: Test passed Tesafilm test Specification: DINÃENÃISOÃ2409:2013 (following) Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) ISOÃ175:2010 (following) Test duration: 240 h 168 h Rating 80ðC (105ðC): Test passed Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -15°C ... 65°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Standards and regulations | Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1) |
| Mounting | Mounting type: slide-on |
