Non disponibile

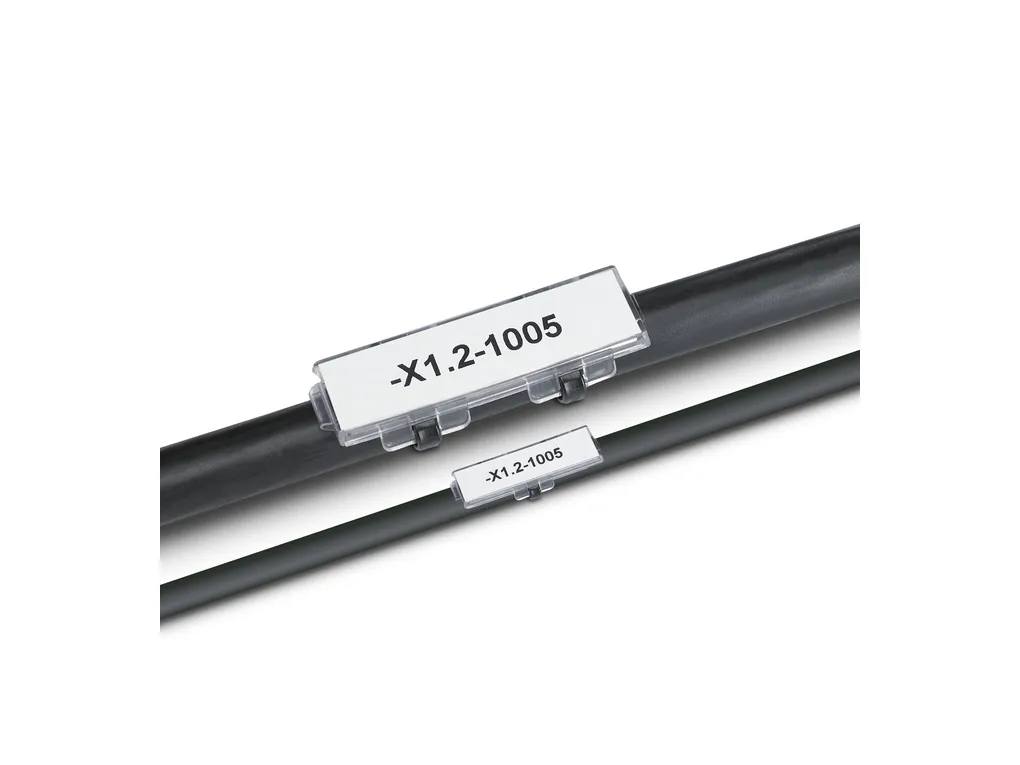

| Product properties | Product type: Marker carrier cable Type: Mounting set Area of application: Outdoors |
| Dimensions | Width: 6 mm Height: 25 mm Length: 25 mm External dimensions Outside diameter: 6 mm ... 50 mm |
| Material specifications | Color: transparent Material: PA Flammability rating according to UL 94: HB Components: halogen-free UV Exposure and Water Immersion according to UL 746C: f1 |
| Cable/line | External cable diameter: ââ°¥ 6 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 30000 h Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) ISOÃ175:2010 (following) Test duration: 240 h 168 h Rating 100ðC (121ðC): Test passed Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h High pressure test Specification: IEC 60529:2001-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 100°C Ambient temperature (assembly): -40°C Resistance to UV radiation: yes Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % |
| Standards and regulations | Resistance to UV radiation: yes Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1) |
| Mounting | Mounting type: Assembly with cable ties |
