1014304 PHOENIX CONTACT -

PMM (EX20)R SR - Magnetic label

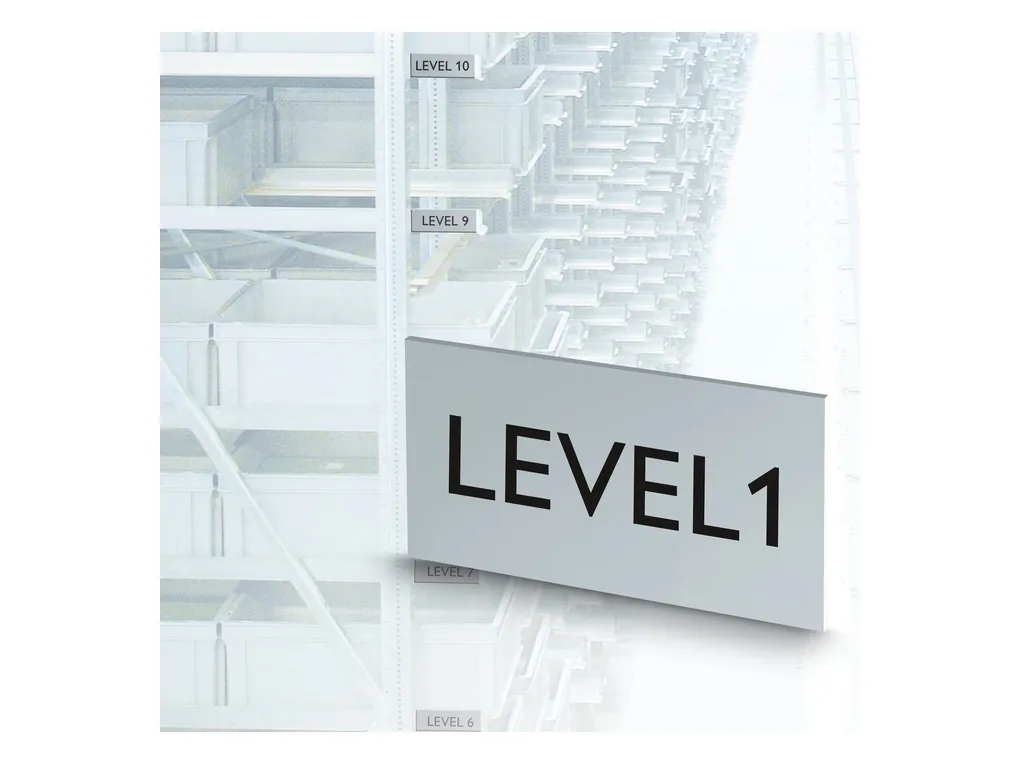

Magnetic label, Roll, silver, unlabeled, can be labeled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: magnetic adhesion, lettering field size: 15000x20mm, Number of individual labels: 1

Cod. Articolo: 1014304 copia - copy

Cod. Fornitore: 1014304 copia - copy

PHOENIX CONTACT

Product properties	Product type: System marking Area of application: Magnetic labels Warehousing/logistics Product property: magnetic Marking Number of individual labels: 1 Number of individual labels per row: 1 Identification technology: Thermal transfer for rolls
Dimensions	Width: 20 mm Length: 15000 mm Material strength: 0.56 mm
Material specifications	RoHS compliant: yes Foil strength: 50 Ãµm Adhesive strength: 24 Ãµm Adhesive: Acrylic Color: silver Material: Magnetic tape Coating: Polyester foil
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -30°C ... 55°C Recommended storage conditions: 23Ã°C/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 2Ãyears
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: magnetic adhesion
