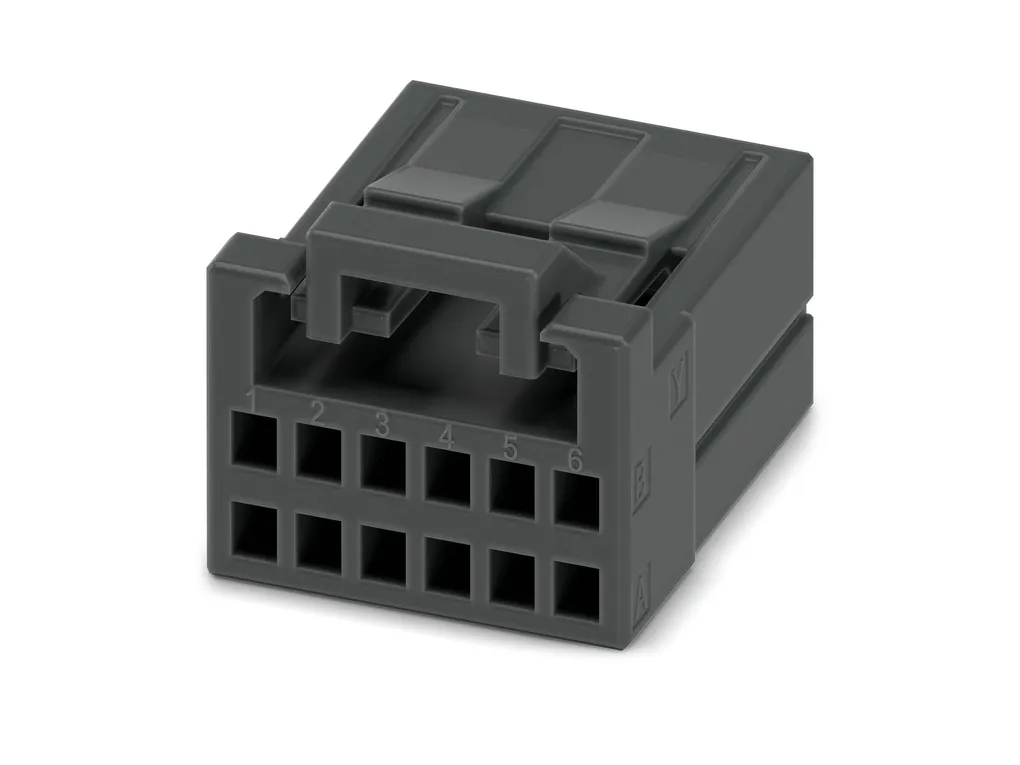

1027606 PHOENIX CONTACT -

DMCC 0,5/ 4-ST-2,54 - PCB connector

PCB connector, nominal cross section: 0.75 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact connection type: Socket, number of potentials: 8, number of rows: 2, number of positions: 4, number of connections: 8, product range: DMCC 0,5/..-ST, pitch: 2.54 mm, connection method: Crimp connection, conductor/PCB connection direction: 0°, plug-in system: COMBICON DFMC 0,5, locking: without, mounting: without, type of packaging: packed in cardboard

Cod. Articolo: 1027606 copia - copy

Cod. Fornitore: 1027606 copia - copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Connectors XS Product type: PCB connector Product family: DMCC 0,5/..-ST Number of positions: 4 Pitch: 2.54 mm Number of connections: 8 Number of rows: 2 Number of potentials: 8
Electrical properties	Nominal current I_N: 6 A Nominal voltage U_N: 160 V Degree of pollution: 3 Contact resistance: 2.2 mÃ© Rated voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 320 V Rated surge voltage (II/2): 2.5 kV
Connection data	Connection technology Type: Standard Connector system: COMBICON DFMC 0,5 Nominal cross section: 0.75 mm² Contact connection type: Socket Interlock Locking type: without Mounting flange: without Conductor connection Connection method: Crimp connection Conductor/PCB connection direction: 0° Conductor cross section flexible: 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9Ãmm) Conductor cross section AWG: 26 ... 18 (Maximum external diameter of the insulation 1.9Ãmm) Stripping length: 4.1 mm ... 4.5 mm
Material specifications	Material data - housing Color (Housing): black (9005) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG Pitch: 2.54 mm Width [w]: 10.66 mm Height [h]: 6.49 mm Length [l]: 16 mm
Mounting	Connection method: Crimp connection
Mechanical tests	Tensile strength of crimp connections Result: Test passed Conductor cross section/conductor type/tractive force setpoint/actual value: 0.14 mm² / flexible / > 18 N Insertion and withdrawal forces Result: Test passed No. of cycles: 100 Insertion strength per pos. approx.: 2 N Withdraw strength per pos. approx.: 2 N Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed

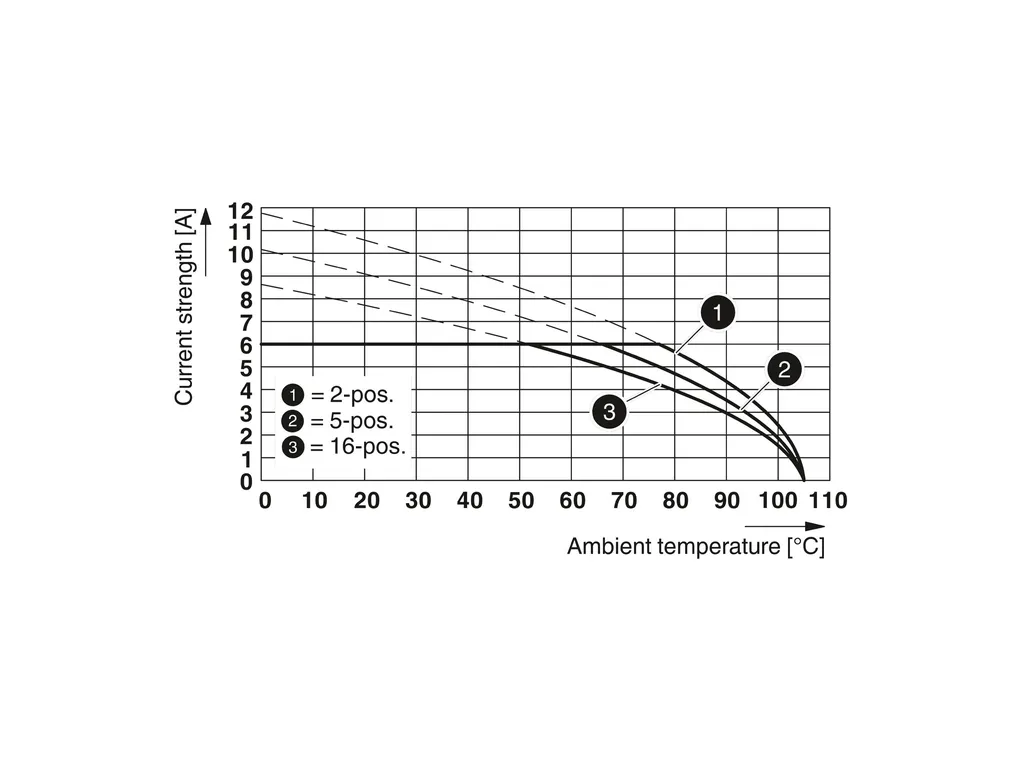

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 50Ãm/s² (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 2.2 mÃ© Contact resistance R₂: 2.2 mÃ© Contact resistance R₂ 2nd level: 2.4 mÃ© Insertion/withdrawal cycles: 100 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Climatic test Specification: DINÃ50018:2013-05 Corrosive stress: 1.0 dm³ SO₂ on 300 dm³/40°C/1 cycle Thermal stress: 105Ã°C/168Ãh Power-frequency withstand voltage: 1.39 kV Ambient conditions Ambient temperature (operation): -55°C ... 100°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 16 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 2 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.5 mm Rated insulation voltage (II/2): 320 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 1.6 mm
Packaging specifications	Type of packaging: packed in cardboard
