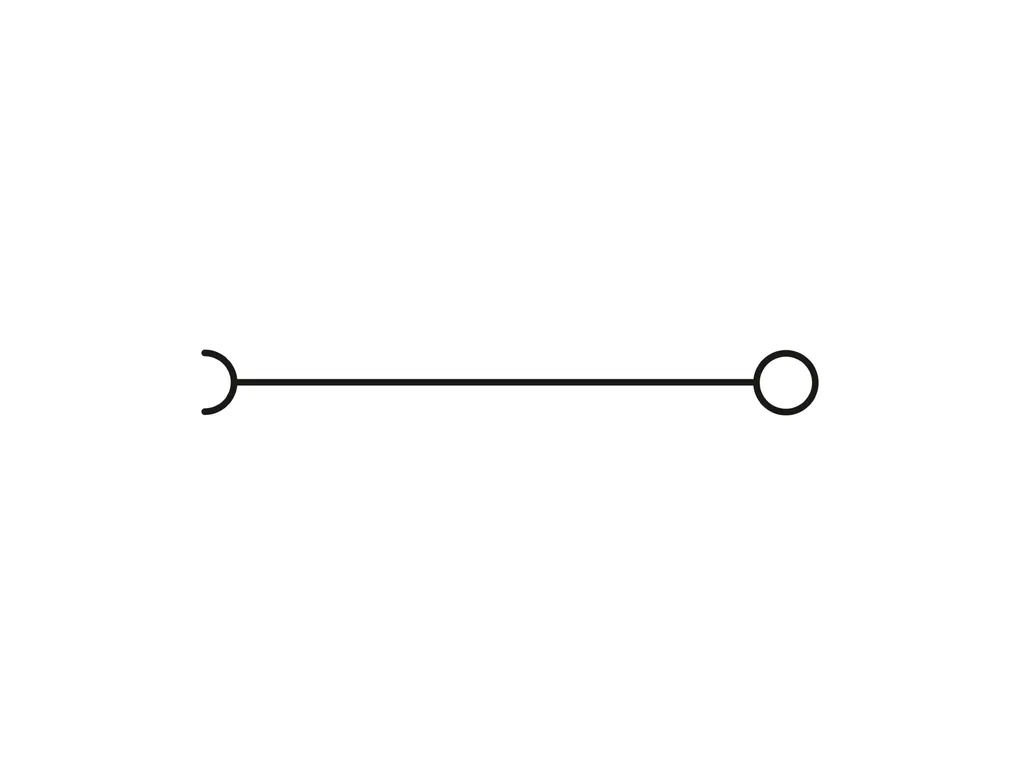

| Notes | Note on application: with end bracket function |
| Product properties | Product type: Installation terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Data management status Article revision: 01 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 2.43 W Current carrying capacity of the neutral busbar: 140 A |
| Connection data | Number of connections per level: 2 Nominal cross section: 16 mm² 1 level Stripping length: 18 mm ... 20 mm Internal cylindrical gage: A7 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 25 mm² Cross section AWG: 20 ... 4 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 16 mm² Conductor cross section, flexible [AWG]: 20 ... 6 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 16 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² ... 4 mm² Nominal current: 70 A (for 16 mm² conductor cross section) Maximum load current: 76 A Nominal voltage: 1000 V Nominal cross section: 16 mm² 1 level Connection cross sections directly pluggable Conductor cross section rigid: 2.5 mm² ... 25 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 16 mm² |
| Dimensions | Width: 12.2 mm Height: 81.9 mm Depth: 46.8 mm Depth on NS 35/7,5: 48.5 mm Depth on NS 35/15: 56 mm |
| Material specifications | Color: gray (RAL 7042) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NS 35/15 |

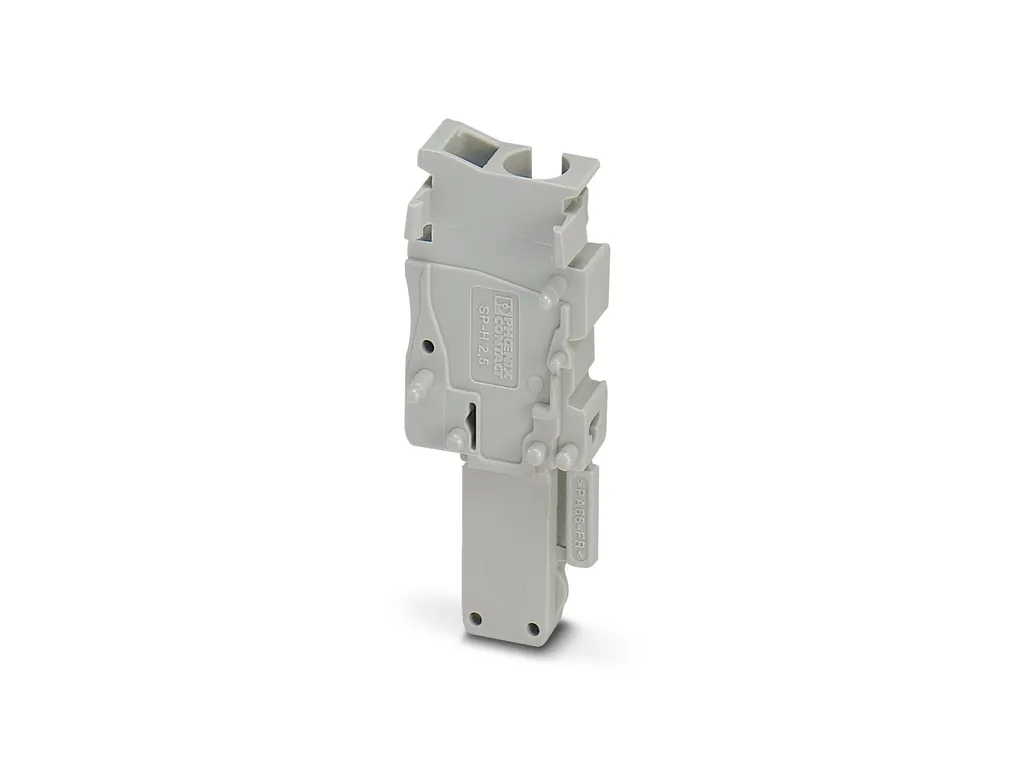

Di seguito alcuni articoli correlati a quello che stai vedendo
