| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: MSTB flexible coding Product type: Data cable preassembled Sensor type: Universal Number of positions: 5 Connection profile: MSTB Cable outlet: straight Insulation characteristics Degree of pollution: 3 |
| Electrical properties | Nominal voltage UN: 24 V Nominal current IN: 16 A |
| Material specifications | Material: Metal Flammability rating according to UL 94: V0 Seal material: NBR Housing surface material: nickel-plated Cable seal material: TPE Contact material: Copper alloy Contact surface material: Gold over nickel Contact carrier material: PA Housing material: Zinc die-cast |

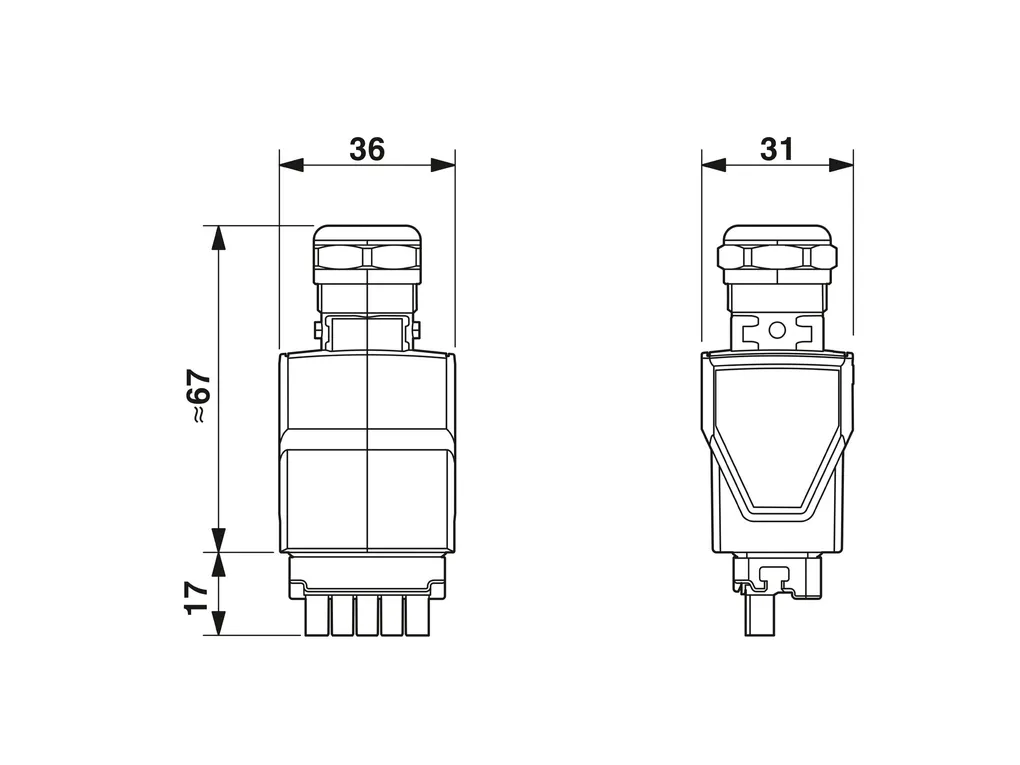

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fce2acc79d2c2c429851965f764bbfac/-S204x204-FJPG Width: 31 mm Height: 36 mm Length: 67 mm |
| Cable/line | External cable diameter: 9 mm ... 13 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (assembly): -10°C ... 40°C |
