| Notes | General: without assembled modules |
| Product properties | Product type: Patch panel Set comprises: 1100077 NBC-PP-J1PGY-S/R4IDC8 Number of module slots: 1 Number of slots: 1 |
| Electrical properties | Contact resistance per contact pair: ââ°¤ 5 mé Contact resistance: ââ°¤ 5 mé (Shield-ground, optional) |

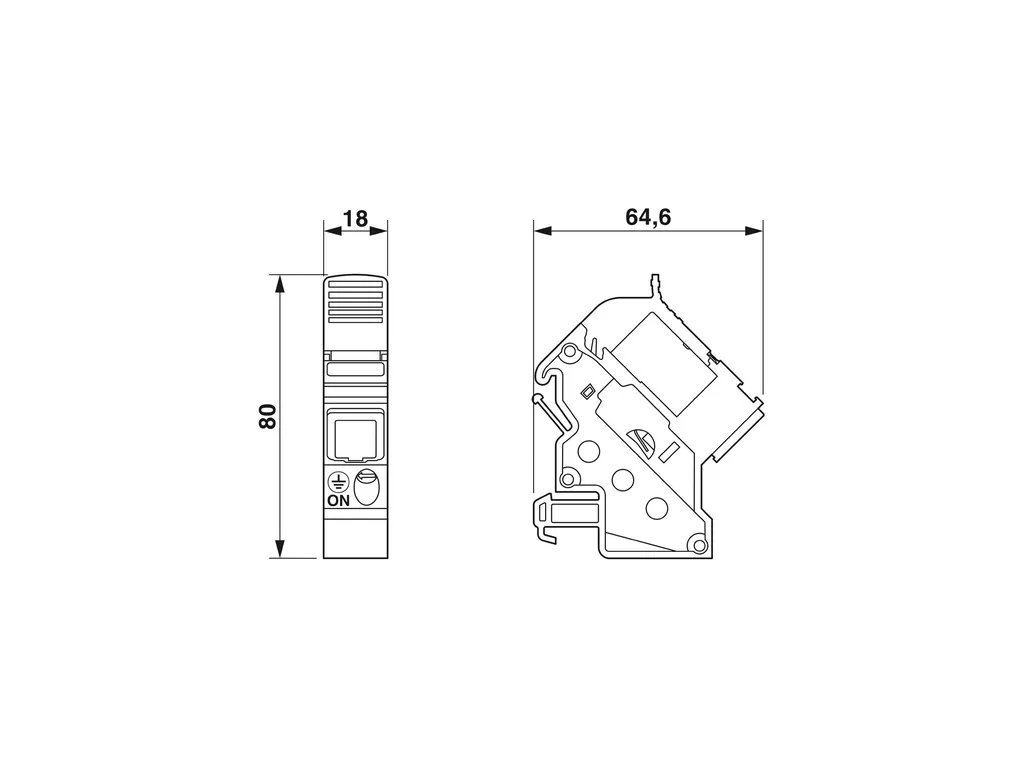

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fe682e9e9dd1b34680e6b3d7498fc3c0/-S204x204-FJPG Width: 18 mm Height: 80 mm Depth: 64.6 mm |
| Material specifications | Material: PP Flammability rating according to UL 94: V0 Contact material: CuSn6 Contact surface material: Tin Housing material: PC-GF10 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: Dust cover not compatible with FO module inserts Connection method: Quick connection |
