PHOENIX CONTACT 1051222
PHOENIX CONTACT 1051222
PHOENIX CONTACTNon disponibile

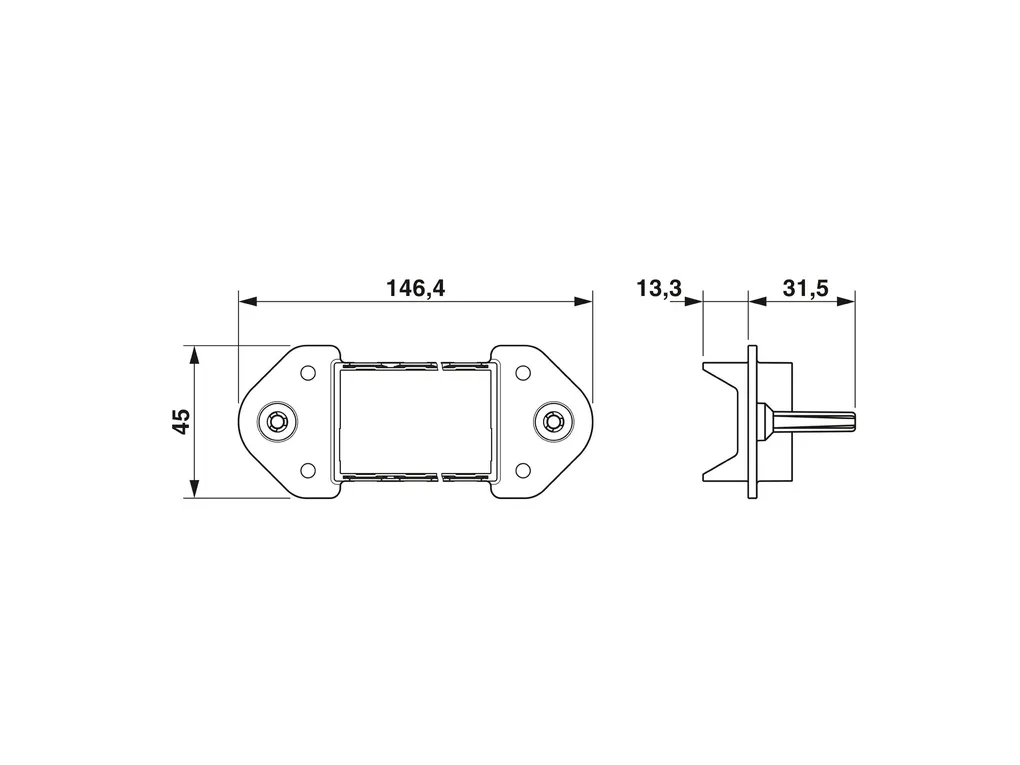

HC-M-B24-DOCK-H - Docking frame

Docking frame for 6modules, fixed assembly, rack compensation of ±2.0mm in the x/y-axis
Cod. Articolo: 1051222 copia - copy
Cod. Fornitore: 1051222 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: B24
Product type: Docking frame
Application: Modular docking frame
Number of module slots: 6
Series: HC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
Frame type: Docking frames
Material specificationsMaterial: die-cast aluminum
MountingMounting type: Direct mounting with flange
Assembly instructions: When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_01472.pdf

Manufacturer_declaration_02478.pdf

Technical_drawing_06705.pdf
