1054338 PHOENIX CONTACT -

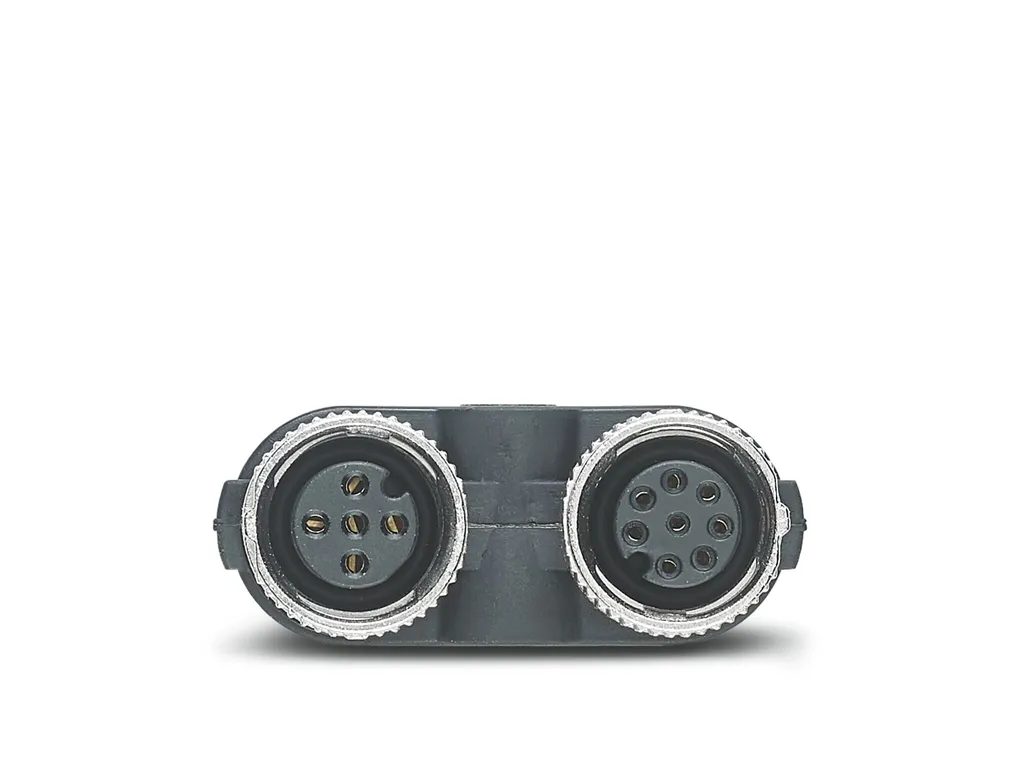

SAC-8PY-M/2XF BK 1-PSR - Y distributor

Y distributor for PSR-CT series RFID transponder switches, M12 male/female, 5- and 8-pos., for safe series connection of up to 30devices

Cod. Articolo: 1054338 copia - copy

Cod. Fornitore: 1054338 copia - copy

PHOENIX CONTACT

Product properties	Product type: Y-distributor Number of positions: 8 No. of cable outlets: 2 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 30 VÃAC 30 VÃDC Nominal current I_N: 2 A
Signaling	Status display: No Status display present: No
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8c286d47b4579748b02eaef3737a9c34/-S204x204-FJPG Width: 39 mm Height: 16 mm Length: 52.5 mm Center distance: 21 mm
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Connector	Connection 1 Type: Plug straight M12 SPEEDCON Coding type: A Locking type: SPEEDCON Connection 2 Type: Socket straight M12 SPEEDCON Coding type: A Locking type: SPEEDCON
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
