| Product properties | Product type: Data front plate Number of positions: 8 Country ID: France |
| Electrical properties | Rated voltage (III/3): 250 V (Socket) max. 30 VÃAC (RJ45) max. 42.4 VÃDC (RJ45) Rated current: 16 A (Socket) Nominal current IN: max. 175 mA (RJ45) Transmission speed: 10 Gbps |

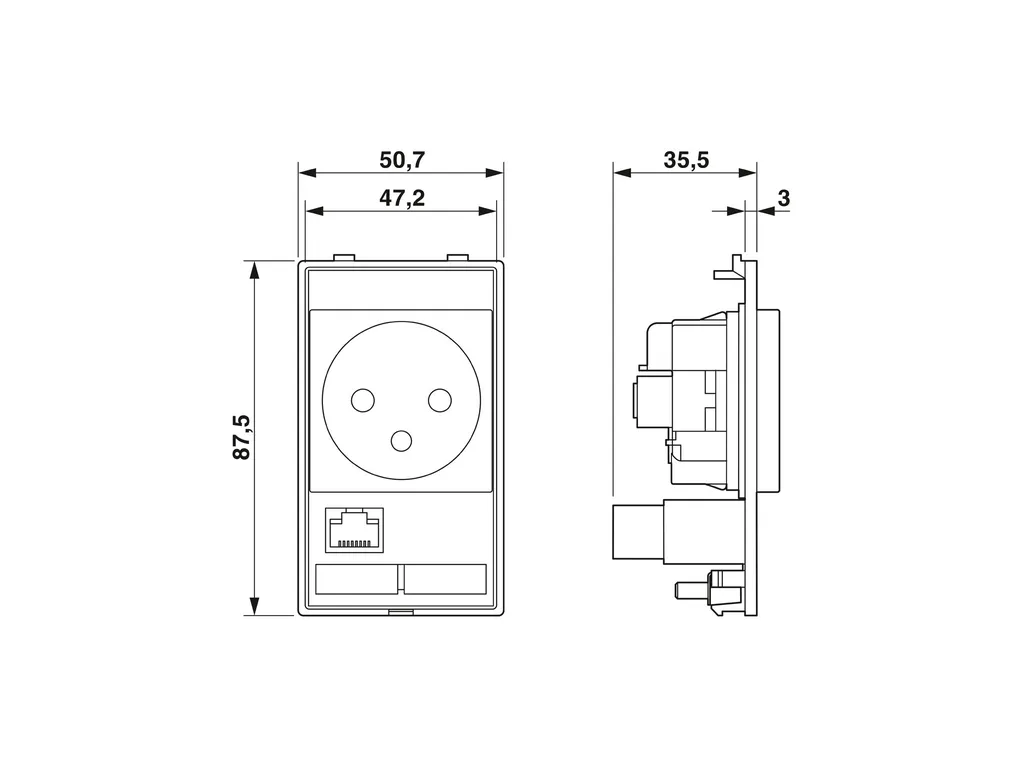

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/54d963819dd9e247af2a8dd17d2beec7/-S204x204-FJPG Width: 50.7 mm Height: 43 mm Length: 87.5 mm |
| Material specifications | Material: Zinc die-cast, nickel-plated PBT PC |
| Connector | Contact insert design: with 1x RJ45 Socket/socket, Cat 6, classEA (ISO/IEC 11801:2002), (EN 50173-1) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: >= 750 (RJ45) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (Front) Ambient temperature (operation): -5°C ... 50°C |
| Mounting | Assembly instructions: Shroud connection: M4 threaded pin, tightening torque: 0.8 Nm ... 1.0 Nm Connection method: Screw connection |
