1056231 PHOENIX CONTACT -

SACC-E-M 8FS-3CON-M8/3,0 - Device connector front mounting

Device connector front mounting, 3-position, Socket, straight, M8, Front mounting, M8 x 0.5, Individual wires, 0.25 mm², PVC litz wire

Cod. Articolo: 1056231 copia - copy

Cod. Fornitore: 1056231 copia - copy

PHOENIX CONTACT

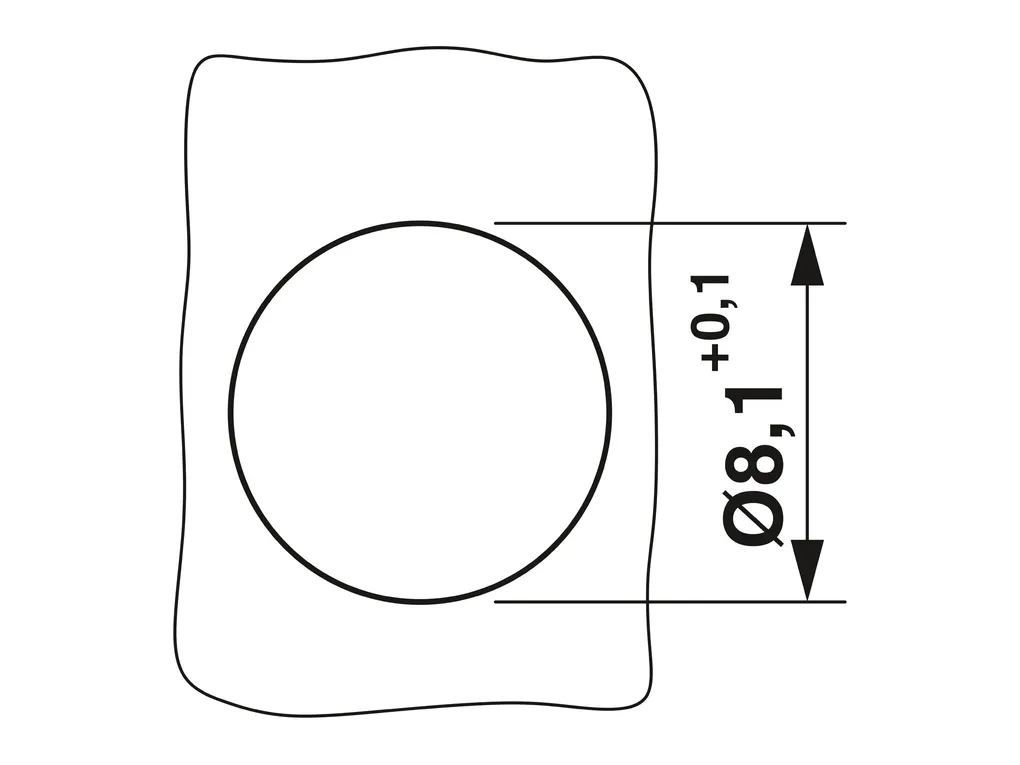

Mounting	Mounting type: Front mounting M8 x 0.5 Connection method: Individual wires
Product properties	Product type: Circular connectors (device side) Number of positions: 3 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: Viton Contact surface material: Au Contact carrier material: PUR Material for screw connection: Brass, nickel-plated
Electrical properties	Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A
Connection data	Conductor connection Connection method: Individual wires
Connector	Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M8
Cable/line	Cable type: PVC litz wire Cable cross section: 0.25 mm² Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -10°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 105°C (cable, fixed installation) -10°C ... 105°C (Cable, flexible installation)
Standards and regulations	M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104
