| Product properties | Product type: SMD male connector Product family: FP 0,8/...-MV 2,65 Number of positions: 80 Pitch: 0.8 mm Number of rows: 2 Number of potentials: 80 Pin layout: Linear pad geometry |
| Electrical properties | Nominal current IN: 1.7 A IEC 60512-5-2:2002-02 (atÃ20°C 80-pos.) Degree of pollution: 3 Contact resistance: 20 mé Test voltage: 500 VÃAC IEC 60512-4-1:2003 |
| Mounting | Mounting type: SMD soldering Pin layout: Linear pad geometry Processing notes Process: Reflow soldering Moisture Sensitive Level: MSL 1 Classification temperature Tc: 260°C |
| Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Selective coating Metal surface contact area (top layer): Gold (Au) Metal surface contact area (middle layer): Nickel (Ni) Metal surface soldering area (top layer): Tin (Sn) Metal surface soldering area (middle layer): Nickel (Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIb CTI according to IEC 60112: 150 Flammability rating according to UL 94: V0 |
| Notes | Notes on operation: The permissible voltage during operation depends on the application, taking into consideration the air clearances and creepage distances within the scope of insulation requirements in accordance with IEC 60664-1. Details for soldering processes: The items are suitable for assembly on both sides and for overhead soldering. |

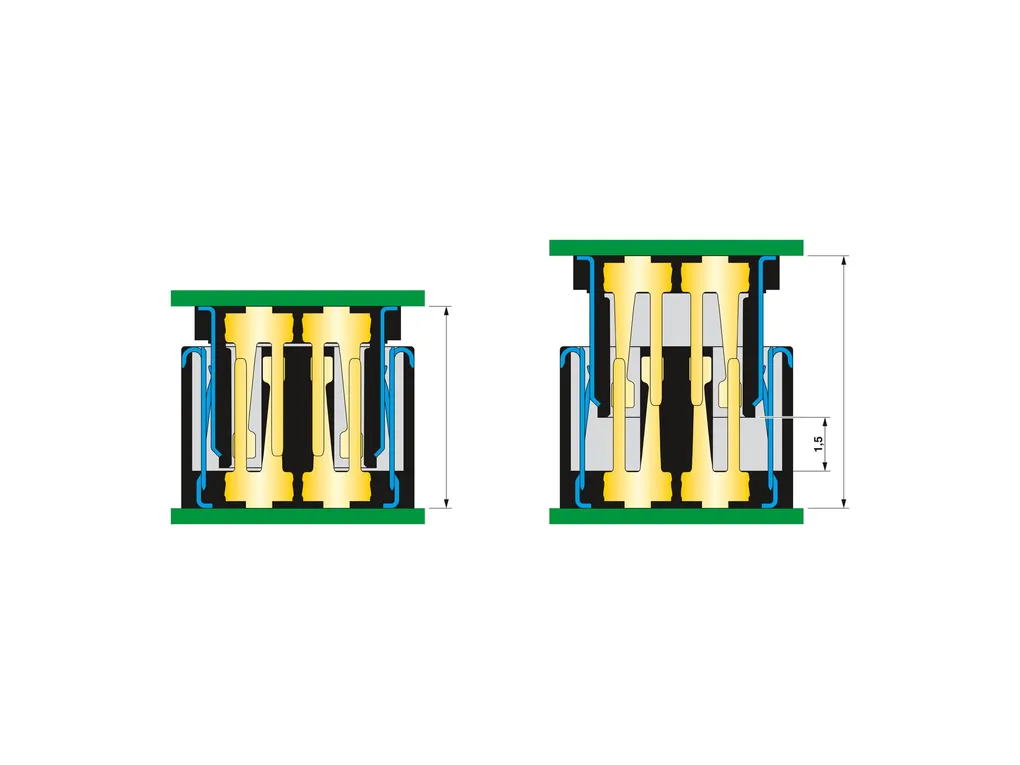

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70e0f23c282363459709fcfe7d5e7131/-S204x204-FJPG Pitch: 0.8 mm Width [w]: 35.9 mm Height [h]: 7.15 mm Length [l]: 6.1 mm Installed height: 6.55 mm Application Contact cover: 0.8 mm Center offset: ñ 0.7 mm in longitudinal and transverse direction Stack height: 7.5 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-FV 4,85) 10.5 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-FV 7,85) 13.5 mm Tolerance: +1,5Ãmm (in combination with Range of articles:FP 0,8/...-FV 10,85) Wipe length: 1.5 mm Angular tolerance: ñ 5° in longitudinal and transverse direction (when plugging in) ñ 5° in longitudinal and transverse direction (when plugged in) Axial offset in X direction (longitudinal): ñ 0.3 mm (Tolerance compensation when plugged in) Axial offset in Y direction (transversal): ñ 0.3 mm (Tolerance compensation when plugged in) PCB design Pad geometry: 0.5 x 2.4 mm |
| Electrical tests | Thermal test | Test group C Specification: IEC 60512-5-2:2002-02 Tested number of positions: 80 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: ââ°¥ 5 Gé Air clearances and creepage distances | Insulating material group: IIIb Minimum value for clearance and creepage distance: 0.25 mm |
| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 2000 - 10 Hz Sweep speed: 1Ãoctave/min 200Ãm/s² (58ÃHzÃ...Ã2000ÃHz) Amplitude: 1.5Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 (following) Contact resistance R1: 20 mé Contact resistance R2: 20 mé Insertion/withdrawal cycles: 500 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 490Ãm/s² Shock duration: 11Ãms Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation): -55°C ... 125°C Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
| Packaging specifications | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5c9d0417f989e646afbbef42108ede86/-S204x204-FJPG Type of packaging: 56 mm wide tape [W] tape width: 56.4 mm [W2] coil overall dimension: 60.4 mm [A] coil diameter: 330 mm Outer packaging type: Transparent-Bag ESD level: (D) electrostatically conductive Specification: DINÃENÃ61340-5-1 (VDEÃ0300-5-1): 2008-07 |
