1069842 PHOENIX CONTACT -

UK 10,3-HESI A 1500V - Fuse modular terminal block

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: gG / gPV / 10.3 x 85, nom. voltage: 1500 VDC, nominal current: 32 A, connection method: Screw connection, Rated cross section: 16 mm², cross section:2.5 mm²- 25 mm², mounting type: NS 35/7,5, NS35/15, color: black

Cod. Articolo: 1069842 copia - copy

Cod. Fornitore: 1069842 copia - copy

PHOENIX CONTACT

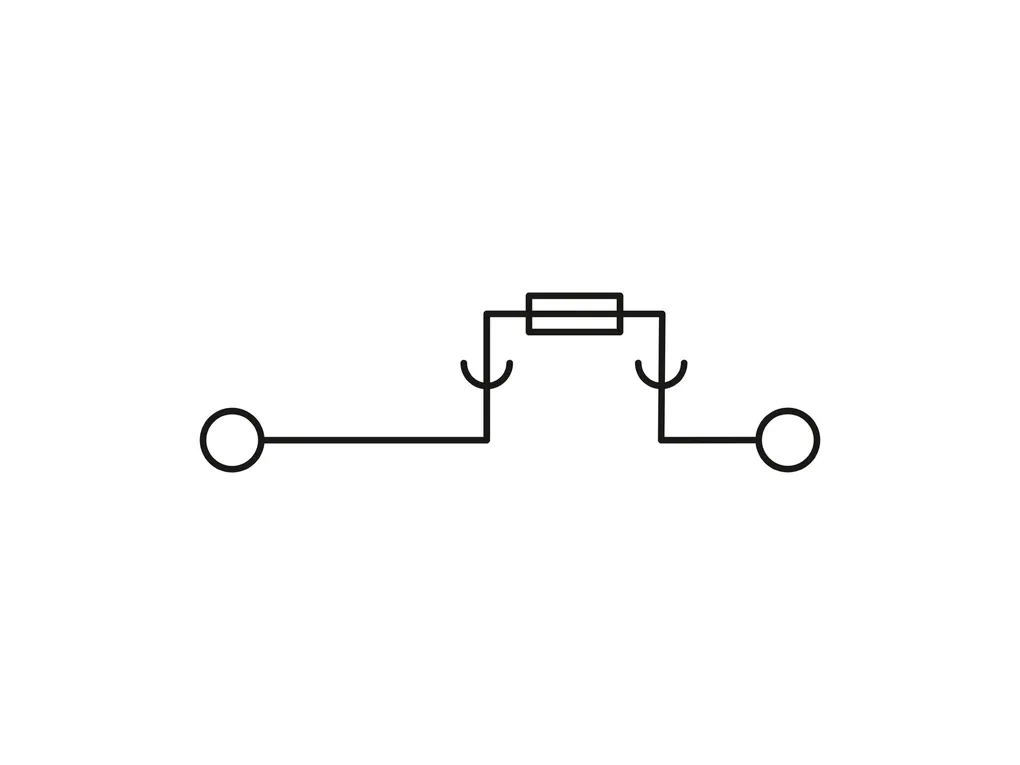

Product properties	Product type: Fuse terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Fuse type: Glass / ceramics / ... Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 6 W Fuse: gG / gPV / 10.3 x 85
Connection data	Number of connections per level: 2 Nominal cross section: 25 mm² Level 1 above 1 below 1 Screw thread: M5 Tightening torque: ... 2.5 Nm Stripping length: 14 mm Internal cylindrical gage: A7 Connection in acc. with standard: IEC 60269-1 / -2 IEC 60947-1 / -3 Conductor cross section rigid: 2.5 mm² ... 25 mm² Cross section AWG: 12 ... 4 (converted acc. to IEC) Conductor cross section flexible: 2.5 mm² ... 25 mm² Conductor cross section, flexible [AWG]: 12 ... 4 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 16 mm² 2 conductors with same cross section, solid: 0.75 mm² ... 10 mm² 2 conductors with same cross section, flexible: 0.75 mm² ... 10 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.75 mm² ... 10 mm² Nominal current: 32 A (the current and voltage are determined by the fuse) Maximum load current: 32 A (the current and voltage are determined by the fuse) Nominal voltage: 1500 VÃDC Nominal cross section: 16 mm²
Dimensions	Width: 23 mm Height: 130 mm Depth on NSÃ35/7,5: 65.5 mm Depth on NSÃ35/15: 73 mm
Material specifications	Color: black Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60269-1 / -2 IEC 60947-1 / -3
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
