1071101 PHOENIX CONTACT -

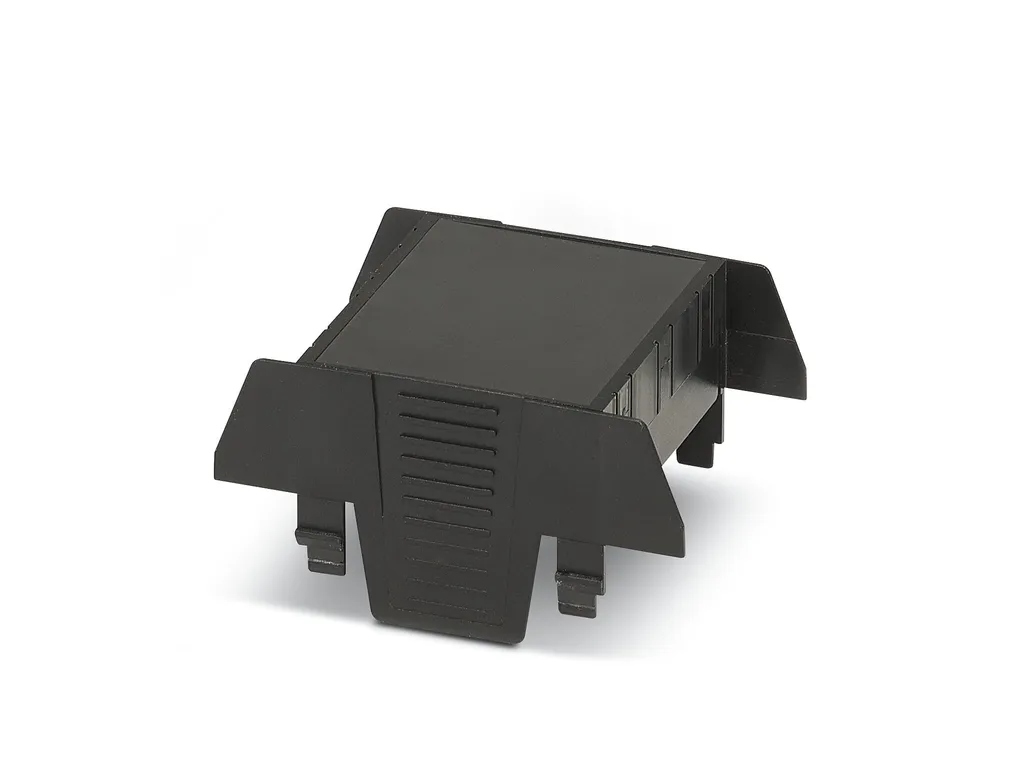

EH 52,5-C DS/ABS-PC BK9005 - Upper part of housing

DIN rail housing, Upper housing part, tall design, connection opening on both sides, width: 52.6 mm, height: 75 mm, depth: 36.95 mm, color: black (9005)

Cod. Articolo: 1071101 copia - copy

Cod. Fornitore: 1071101 copia - copy

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Product family: EH 52,5 Type: Upper housing part, tall design, connection opening on both sides Housing type: DIN rail housing Ventilation openings present: no Housing series: EH

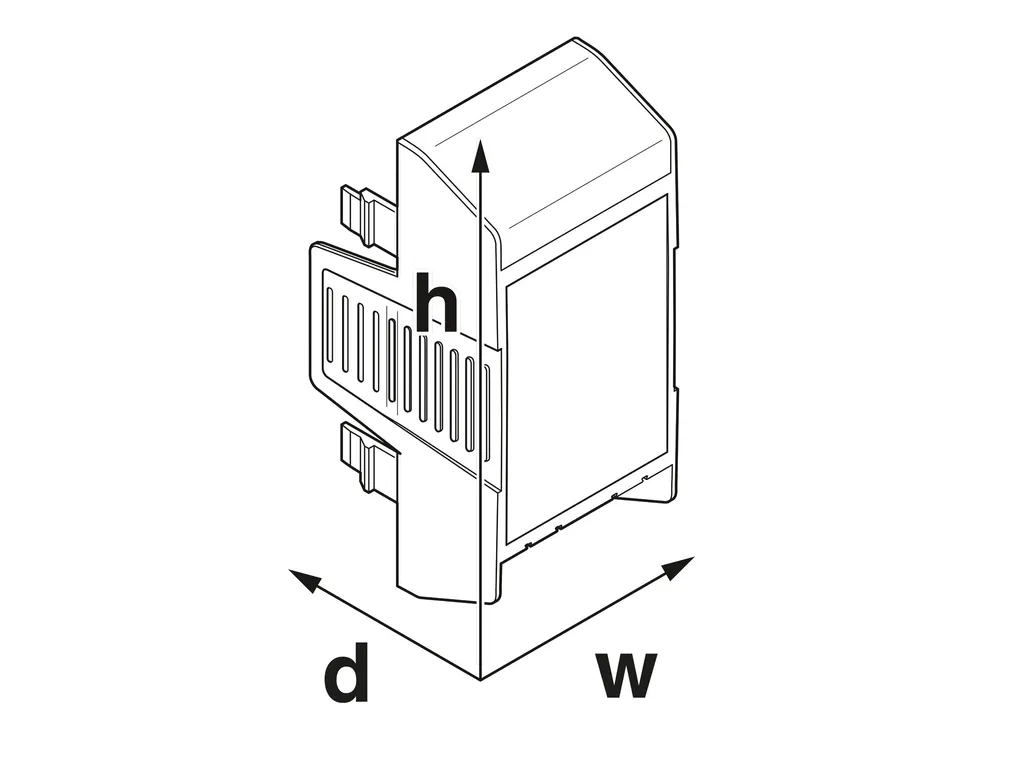

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0af0ef00338de04587d2a8bc62cf44b8/-S204x204-FJPG Width: 52.6 mm Height: 75 mm Depth: 36.95 mm Depth from base support surface: 19.95 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: ABS-PC
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 %
PCB data	Type of PCB mount: Latching
Mounting	Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail)
