1077075 PHOENIX CONTACT -

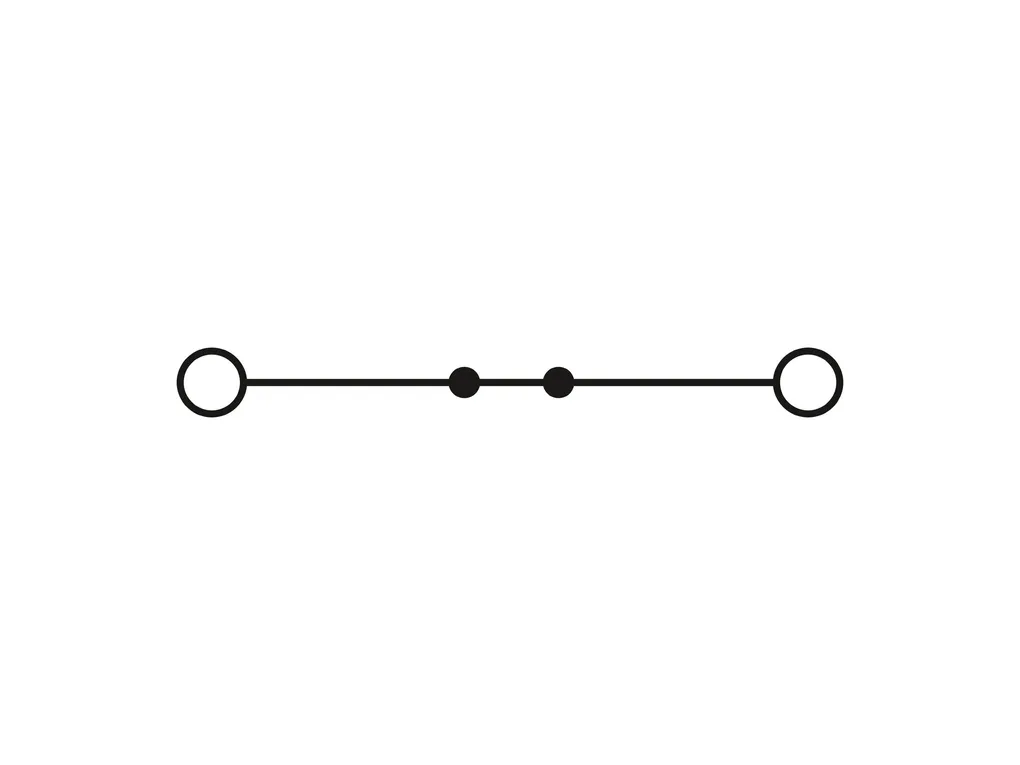

PT 1,5/S-FE - Feed-through terminal block

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 2, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm²-1.5 mm², mounting type: NS 35/7,5, NS35/15, color: black/yellow

Cod. Articolo: 1077075 copia - copy

Cod. Fornitore: 1077075 copia - copy

PHOENIX CONTACT

Product properties	Product type: Feed-through terminal block Area of application: Railway industry Machine building Plant engineering Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 0.56 W
Connection data	Number of connections per level: 2 Nominal cross section: 1.5 mm² 1 level Stripping length: 8 mm ... 10 mm Internal cylindrical gage: A1 / B1 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Cross section AWG: 26 ... 16 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section, flexible [AWG]: 26 ... 16 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 1.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 1 mm² Using the AI-S 1-8 TQ ferrule, Item No. 1200293, is recommended Nominal current: 17.5 A Maximum load current: 17.5 A Nominal voltage: 500 V Nominal cross section: 1.5 mm² 1 level Connection cross sections directly pluggable Conductor cross section rigid: 0.25 mm² ... 1.5 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 1.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 1 mm²
Dimensions	Width: 3.5 mm End cover width: 2.2 mm Height: 45 mm Depth: 30.5 mm Depth on NSÃ35/7,5: 32 mm Depth on NSÃ35/15: 39.5 mm
Material specifications	Color: black/yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
