| Mounting | Assembly instructions: Method 1 Cut the outer sheath, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring. Method 2 Push the braided shield back around 15 ... 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring. |
| Product properties | Product type: Full screw connection Manufacturer: BIMED Manufacturer Designation: BMEM-E1 Shielded: yes Execution of the strain relief: A |
| Characteristics | Category of shock impact: 6 Cable diameter without cable sheath: 4 mm (Diameter of braided shield) Design, Strain relief: A |

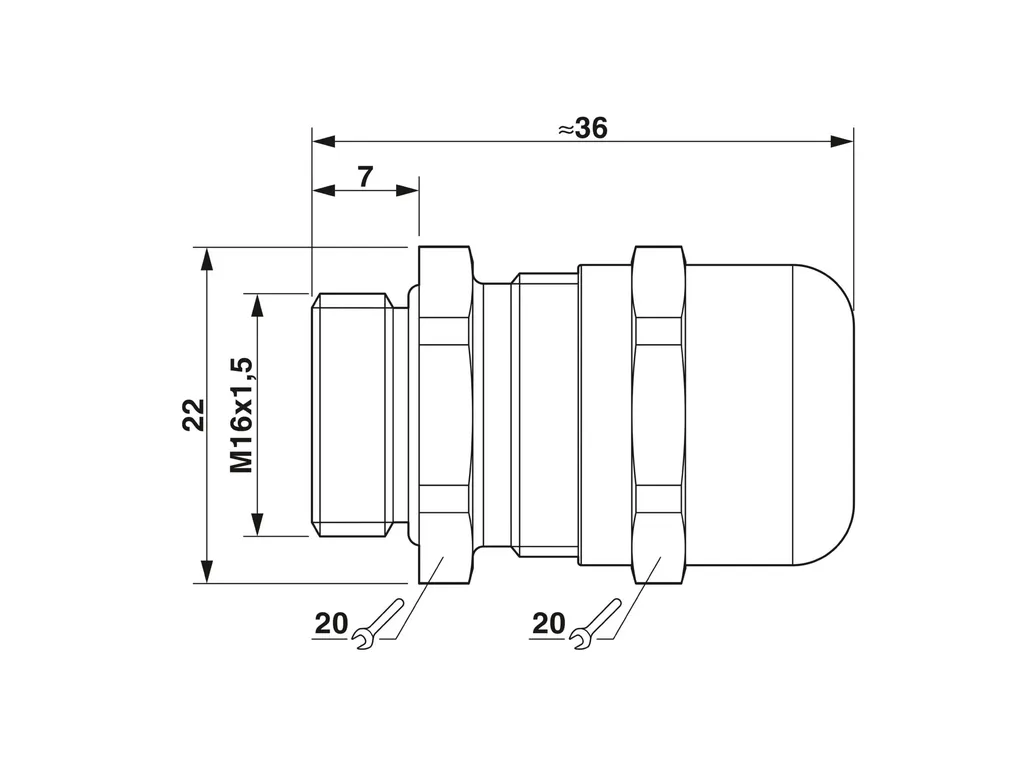

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22636/full/b250?format=jpg Length of the connecting thread: 7 mm Hole diameter: 16.1 mm ... 16.2 mm Wrench size, union nut: 20 mm Wrench size, support: 20 mm Clamping range of the strain relief clip: 6.00 mm ... 10.00 mm (for UL 514 B) Hexagon angular dimension: 22 mm Thread type connection side: M16 x 1.5 Thread pitch: 1.5 mm |
| Connection data | Tightening torque: 7 Nm (Union nut) 7 Nm (Support: EN 62444) 8 Nm (for UL514 B: union nut) |
| Material specifications | Color: Brass Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (): 5 mm ... 10 mm 5 mm ... 10 mm (for UL 514 B) Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (5Ãbar, 30Ãminutes) Enclosure rating (NEMA): 4X Ambient temperature (operation): -40°C ... 100°C (static) |
