1079402 PHOENIX CONTACT -

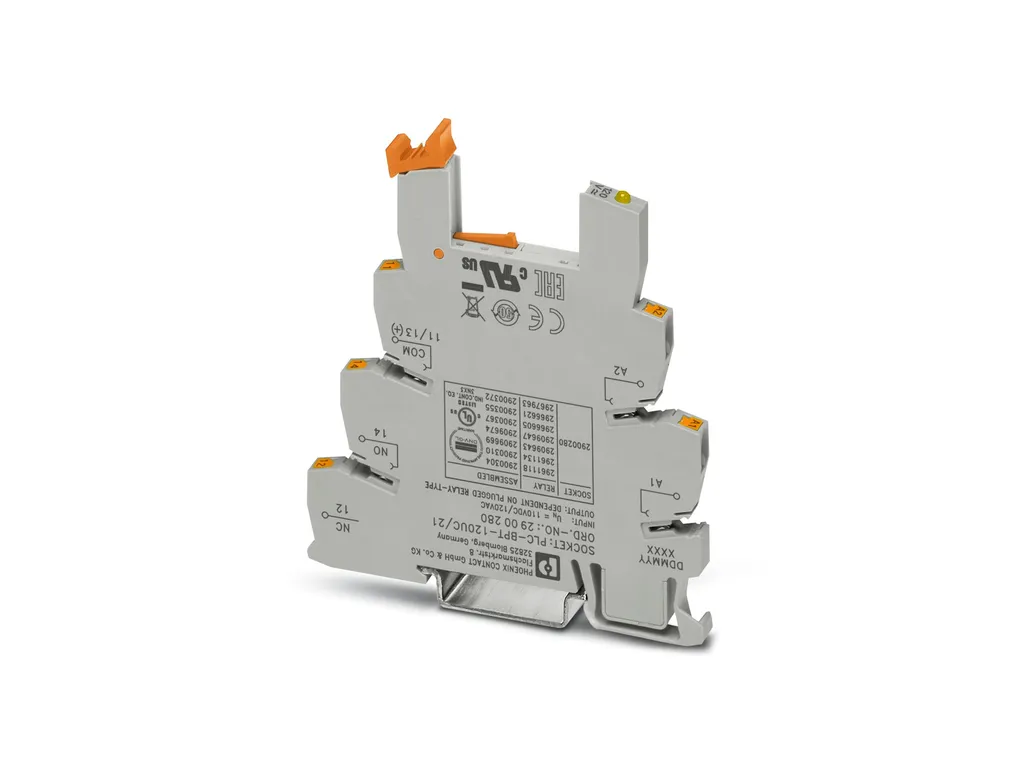

PLC-RSC-230AC/21HC/SO46/HI - Relay Module

PLC-INTERFACE consisting of PLC-BSC.../21HC/SO46/HI basic terminal block with screw connection and plug-in miniature relay for high continuous current, 1 changeover contact, nominal input voltage of 230VAC, with defined activation and deactivation thresholds

Cod. Articolo: 1079402 copia - copy

Cod. Fornitore: 1079402 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Filter to prevent interference Operating mode: 100% operating factor Mechanical service life: 3x 10⁷ cycles Insulation characteristics Insulation: Basic insulation Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 1.04 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact) Air clearances and creepage distances between the power circuits Rated surge voltage: 4 kV
Input data	Coil side Nominal input voltage U_N: 230 VÃAC Input voltage range: 190 VÃAC ... 264 VÃAC (20Ã°C) Switch-on threshold: 190 VÃAC Switch-off threshold: 170 VÃAC Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 14 mA (50ÃHz) Input power dissipation for U_N: 3 VA Typical response time: 10 ms Typical release time: 8 ms Coil voltage: 110 VÃDC Protective circuit: Bridge rectifier Input circuit: RC element with threshold value switch Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) Minimum switching voltage: 12 V (10ÃmA) Limiting continuous current: 10 A 6 A (value applies to connections 12. If connections 12 are bridged, the normal value applies.) Maximum inrush current: 30 A (300Ãms) Min. switching current: 10 mA (12ÃV) Interrupting rating (ohmic load) max.: 240 W (at 24 V DC) 58 W (at 48 V DC) 48 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 2500 VA (for 250 V AC) Interrupting rating (ohmic load) max. bridged: 144 W (for 24 V DC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.) 1500 VA (for 250 V AC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 6 A (at 24 V, AC15) 6 A (at 120 V, AC15) 6 A (at 250 V, AC15)
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Dimensions	Width: 14 mm Height: 80 mm Depth: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay): RT II (Relay) Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 50°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
