1080100 PHOENIX CONTACT -

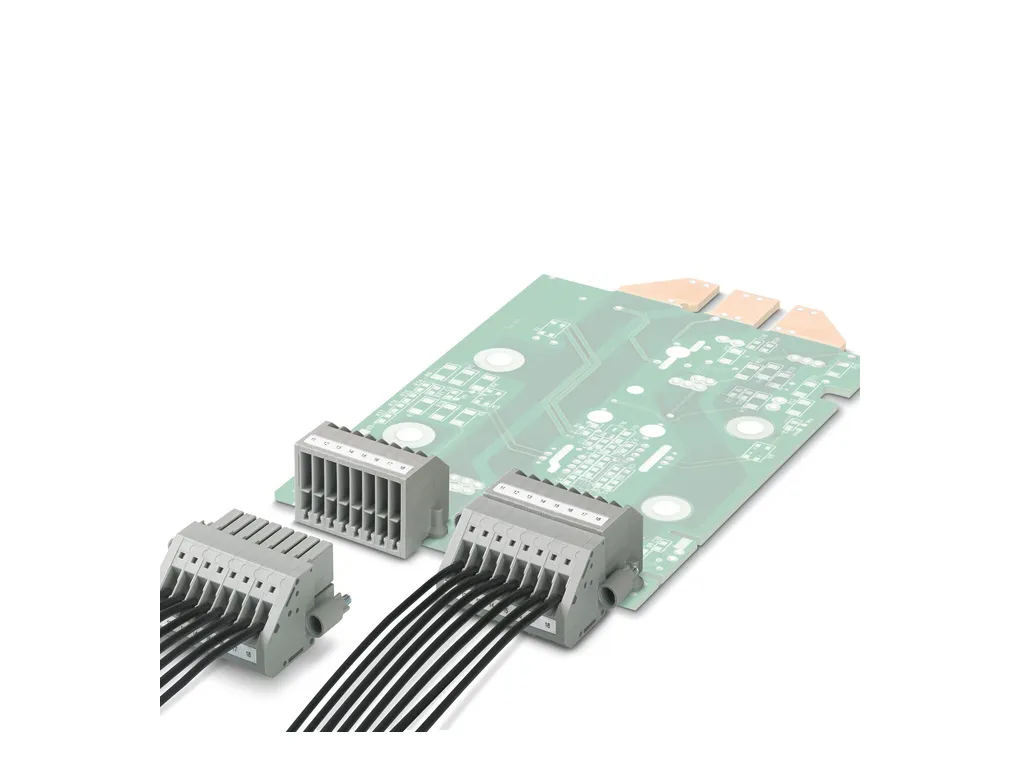

Product properties	Product type: Plug Number of positions: 6 Number of rows: 1 Potentials: 6 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 0.77 W
Connection data	Nominal cross section: 2.5 mm² Rated cross section AWG: 14 Level 1 Connection in acc. with standard: IEC 61984 Conductor cross section rigid: 0.5 mm² ... 2.5 mm² Cross section AWG: 20 ... 14 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 2.5 mm² Conductor cross section, flexible [AWG]: 20 ... 14 (converted acc. to IEC) Nominal current: 15 A Maximum load current: 15 A Nominal voltage: 320 V
Dimensions	Width: 53.4 mm Height: 29.1 mm Depth: 34.3 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical tests	Short-time withstand current 2.5 mm²: 0.01 kA Result: Test passed
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ60255-21-1:1996-05 (following) Frequency: 10ÃHzÃ...Ã150ÃHz Acceleration: 1g (84.2ÃHzÃ...Ã150ÃHz) Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ60255-21-1:1996-05 (following) Pulse shape: Half-sine Acceleration: 30g Shock duration: 11Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 61984
Mounting	Mounting type: PCB mounting
