1082389 PHOENIX CONTACT -

PTFIX 6X10/S RD - Distribution block

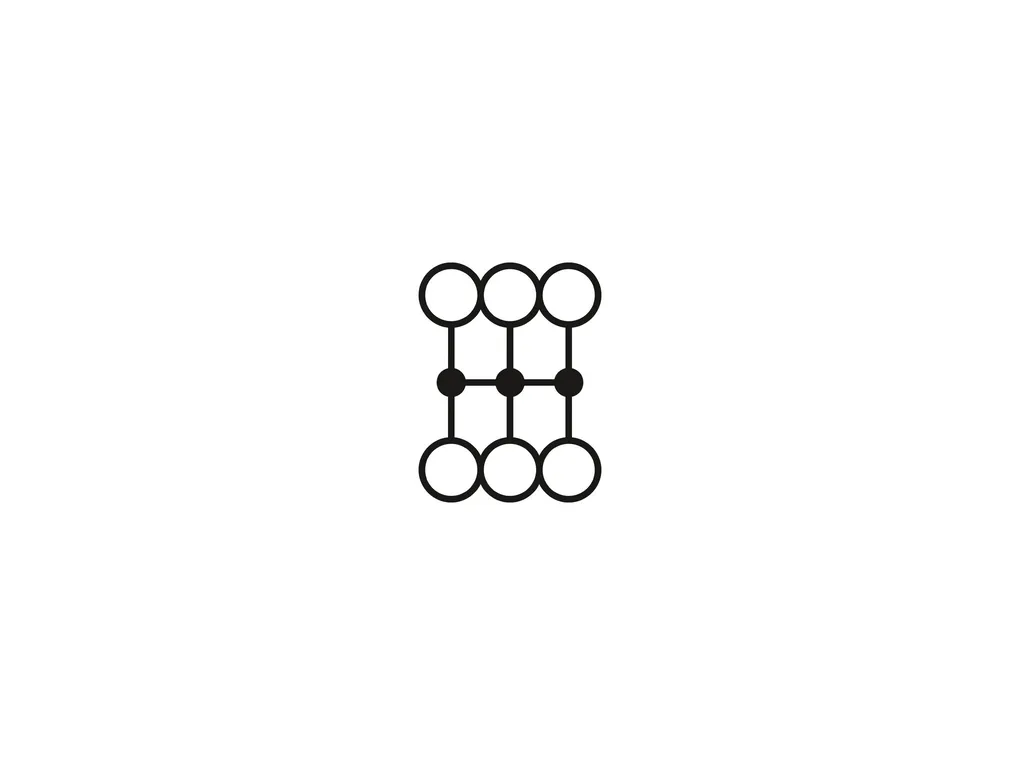

Distribution block, bridged internally, nom. voltage: 450 V, nominal current: 57 A, number of connections: 6, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: red

Cod. Articolo: 1082389 copia - copy

Cod. Fornitore: 1082389 copia - copy

PHOENIX CONTACT

Notes	General Note: For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen. When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half.
Product properties	Product type: Distributor terminal block Number of connections: 6 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 1.82 W
Connection data	Number of connections per level: 6 Nominal cross section: 10 mm² Stripping length: 12 mm ... 14 mm Internal cylindrical gage: A5 Connection in acc. with standard: IEC 60998-2-2 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Nominal current: 57 A Maximum load current: 76 A (with a 16Ãmm² conductor cross section, rigid) Maximum total current: 90 A (The load current of all connected conductors must not exceed the maximum total current.) Nominal voltage: 450 V Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 16 mm² Conductor cross section flexible: 1 mm² ... 10 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 1 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1 mm² ... 6 mm²
Dimensions	Width: 37 mm Height: 24.5 mm Depth: 25.1 mm
Material specifications	Color: red Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -40°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C
Mechanical properties	Mechanical data Open side panel: No
Mechanical tests	Attachment on the carrier DIN rail/fixing support: NSÃ35/NSÃ15 Result: Test passed Note: For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half.
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60998-2-2
Mounting	Mounting type: for snapping onto a DIN rail adapter Direct mounting with flange Free-hanging
