1082479 PHOENIX CONTACT -

PTFIX 6X10/S-NS35A GY - Distribution block

Distribution block, Block with horizontal alignment, nom. voltage: 800 V, nominal current: 57 A, number of connections: 6, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo: 1082479 copia - copy

Cod. Fornitore: 1082479 copia - copy

PHOENIX CONTACT

Notes	General: the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories

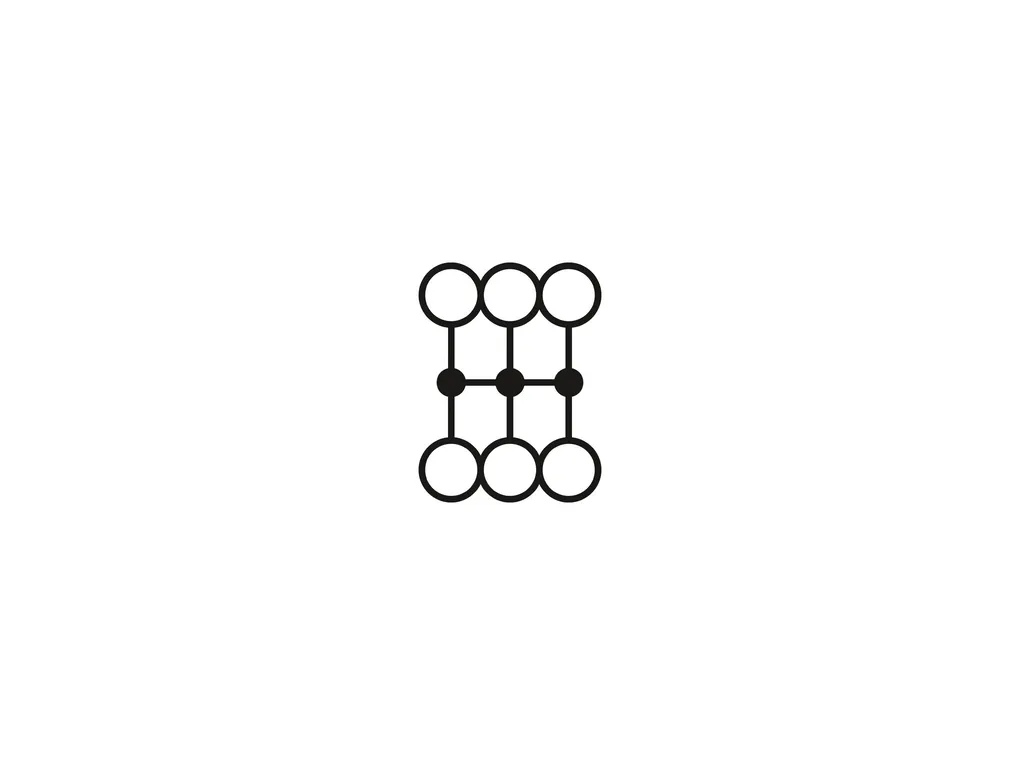

Product properties	Product type: Distributor terminal block Number of connections: 6 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.82 W
Connection data	Number of connections per level: 6 Nominal cross section: 10 mm² Stripping length: 12 mm ... 14 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 6 mm² Nominal current: 57 A Maximum load current: 76 A (with a 16Ãmm² conductor cross section, rigid) Maximum total current: 90 A (The maximum load current of the individual terminal point must not be exceeded.) Nominal voltage: 800 V Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 16 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 1 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1 mm² ... 6 mm²
Dimensions	Width: 37 mm Height: 45.7 mm Depth: 25.1 mm Depth on NSÃ35/7,5: 34.2 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical tests	Surge voltage test Result: Test passed Power-frequency withstand voltage Test voltage setpoint: 2 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: No
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NSÃ35 Result: Test passed Note: For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen. When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half. Test for conductor damage and slackening Rotation speed: 10Ãrpm Revolutions: 135 Conductor cross section/weight: 0.5 mm² / 0.3 kg 10 mm² / 2 kg 16 mm² / 2.9 kg Result: Test passed
Environmental and real-life conditions	Aging Temperature cycles: 192 Result: Test passed Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
