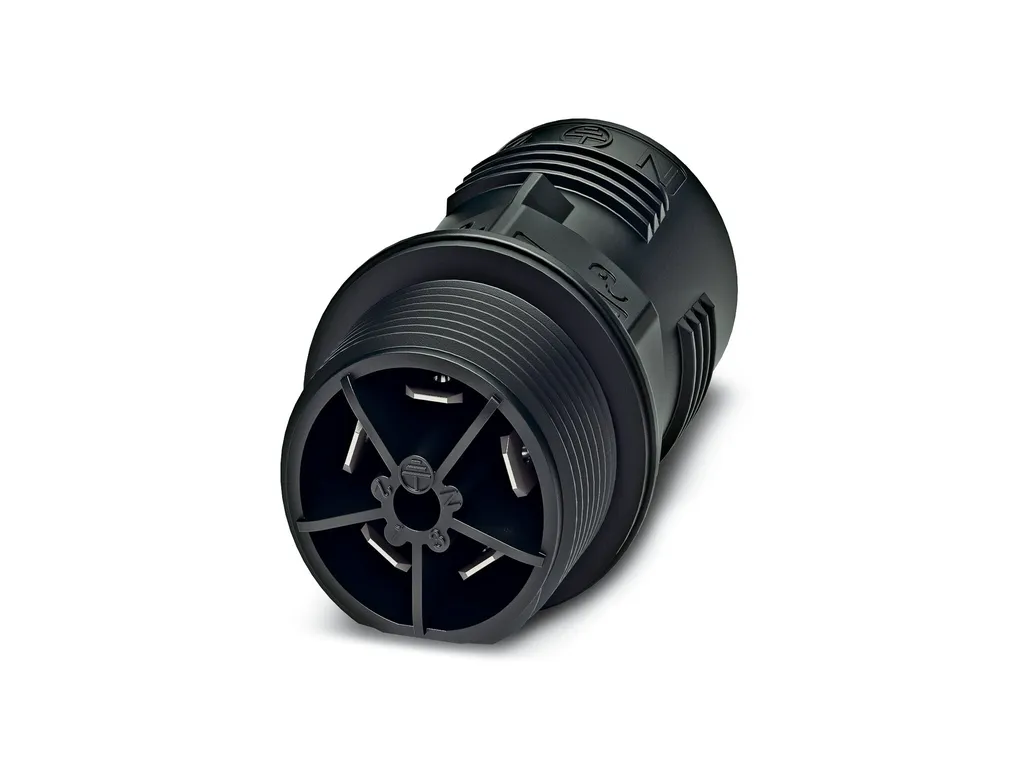

| Notes | General: NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product properties | Product type: Installation connector Product family: IPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Number of connections per position: 1 Coding: P Data management status Article revision: 00 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Rated voltage (III/3): 600 V Nominal voltage UN: 600 V AC 600 V DC Nominal current IN: 17.5 A |
| Connection data | Connection technology Connection method On the field side: Push-lock connection Conductor connection Conductor cross section flexibel: 0.5 mm² ... 2.5 mm² Conductor cross section solid: 0.5 mm² ... 2.5 mm² Conductor cross section with ferrule: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 20 ... 14 |

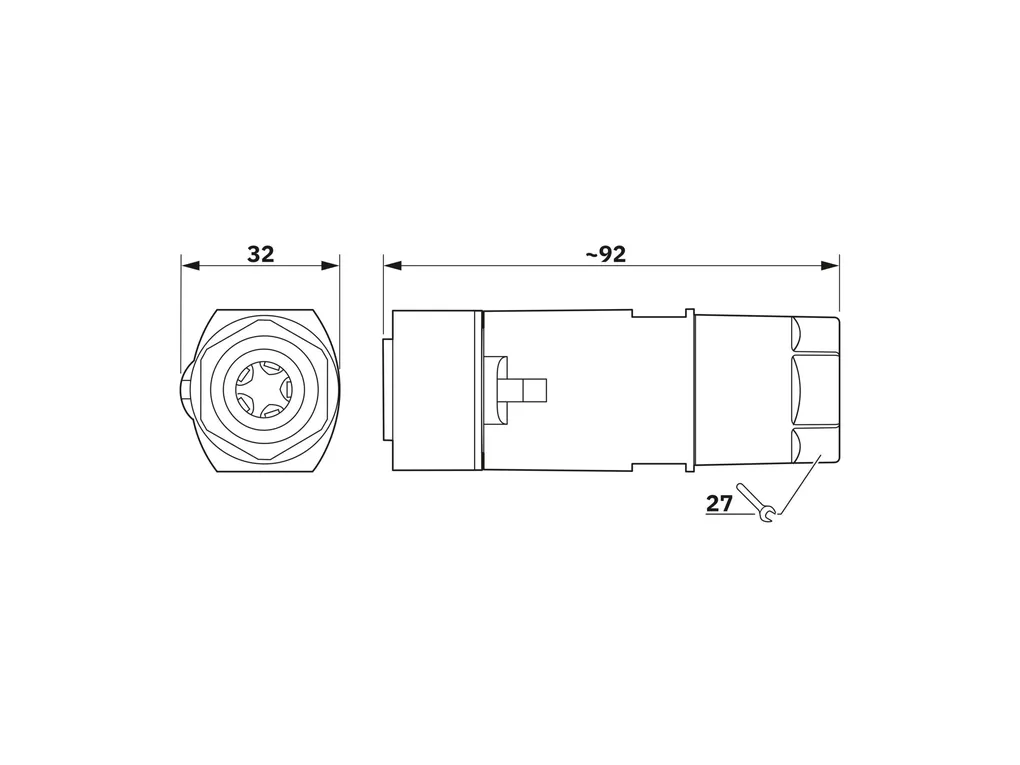

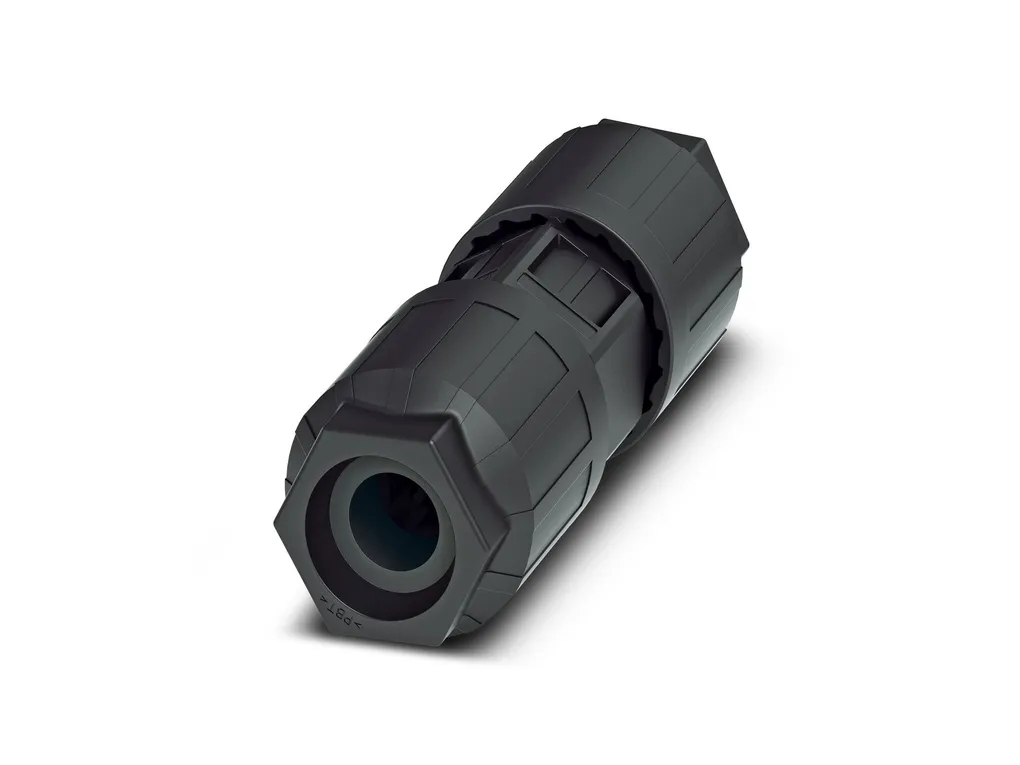

| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/5766/full/b1500?format=jpg Width: 32.5 mm Height: 32.1 mm Length: 91.7 mm |
| Material specifications | Color (Housing): black (RAL 9005) Material Housing: PA Material Seal: NBR Flammability rating according to UL 94: V0 Contact material: Cu Contact surface material: Ni/Ag/Sn |
| Cable/line | External cable diameter: 7 mm ... 11 mm 11 mm ... 16 mm Position marking: 1, 2, 3, N, PE |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: 50 (IP66/IP68/IP69K) 100 (IP66) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2 m / 24 h) IP69K Touch-proof when not plugged in (IP2X) Impact strength: IK07 Ambient temperature (operation): -30 °C ... 100 °C Temperature when conductor connected: -5 °C ... 50 °C Ambient temperature (storage/transport): -30 °C ... 100 °C Resistance to UV radiation: yes |
