1088685 PHOENIX CONTACT -

IPD W 5P2,5 M M25 BK - Panel feed-through

Panel feed-through, for connectors, product family: IPD, connection method: Push-in connection, number of positions: 4+PE, M25, Pin, 0.5 mm² ... 2.5 mm², 600 V, 17.5 A, PA, black, coding: P

Cod. Articolo: 1088685 copia - copy

Cod. Fornitore: 1088685 copia - copy

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.

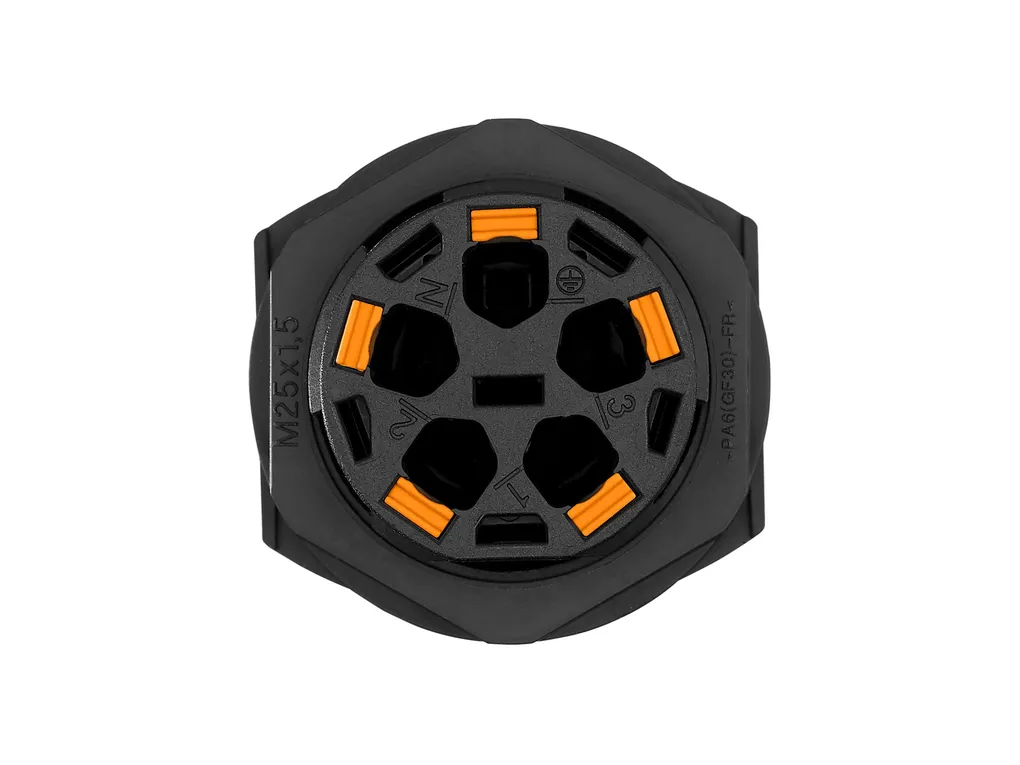

Product properties	Product type: Panel feed-through Product family: IPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Number of connections per position: 1 Type: for connectors Coding: P Data management status Article revision: 01 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection method On the device side: Push-in connection Conductor connection Conductor cross section flexibel: 0.5 mm² ... 2.5 mm² Conductor cross section solid: 0.5 mm² ... 2.5 mm² Conductor cross section with ferrule: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 20 ... 14
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/5762/full/b1500?format=jpg Width: 33 mm Height: 33 mm Length: 43.4 mm
Electrical properties	Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Rated voltage (III/3): 600 V Nominal voltage U_N: 600 V AC 600 V DC Nominal current I_N: 17.5 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50 (IP66/IP68/IP69K) 100 (IP66)
Material specifications	Color: black (RAL 9005) Material Housing: PA Material Seal: EPDM Flammability rating according to UL 94: V0 Contact material: Cu Contact surface material: Ni/Ag/Sn
Cable/line	Position marking: 1, 2, 3, N, PE
Mounting	Mounting type: M25
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2 m / 24 h) IP69K Touch-proof when not plugged in (IP2X) Impact strength: IK07 Ambient temperature (operation): -30 °C ... 100 °C Temperature when conductor connected: -5 °C ... 50 °C Ambient temperature (storage/transport): -30 °C ... 100 °C Resistance to UV radiation: yes
