1088688 PHOENIX CONTACT -

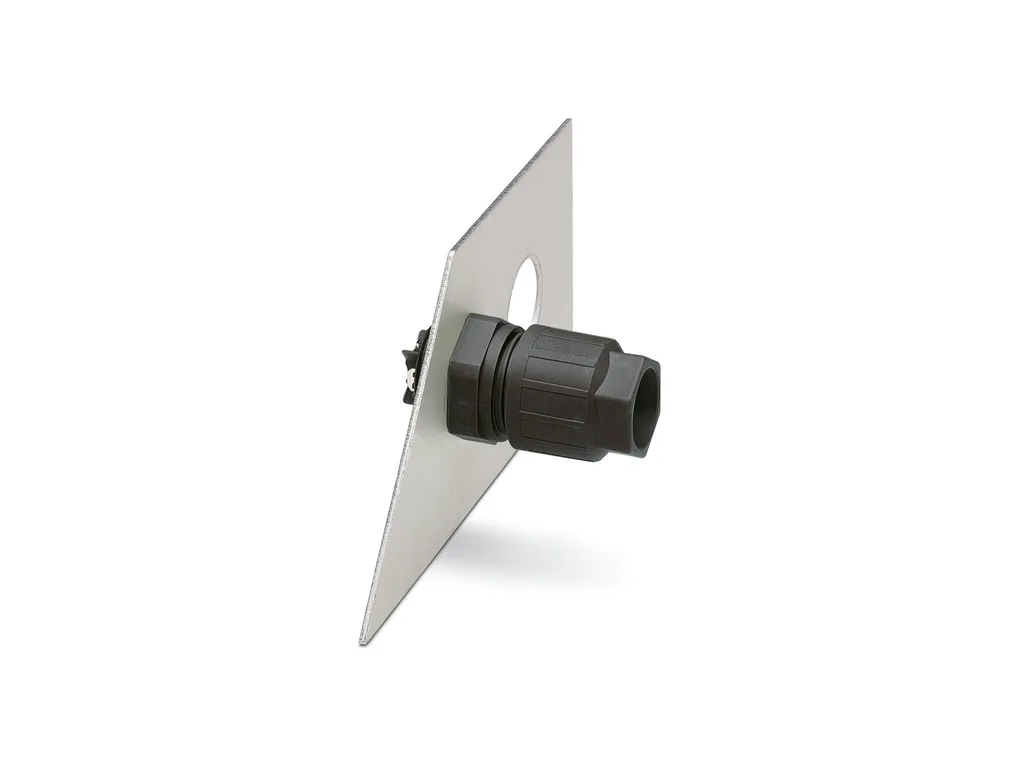

IPD W 3P2,5 M M25 GY - Panel feed-through

Panel feed-through, Push-in connection, number of positions: 2+PE, 500 V, 20 A, light grey, assembly thread: M25, Push-in connection

Cod. Articolo: 1088688 copia - copy

Cod. Fornitore: 1088688 copia - copy

PHOENIX CONTACT

Product properties	Product type: Panel feed-through Product family: IPD Number of positions: 3 Connection profile: 2+PE Position marking: L, N, PE Number of connections per position: 1 Series: IPD Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection technology: Push-in connection Conductor connection Conductor cross section flexibel: 0.5 mm² ... 2.5 mm² Conductor cross section solid: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 20 ... 14
Electrical properties	Rated surge voltage (III/3): 6 kV Rated current: 20 A Rated voltage (III/3): 500 V Nominal voltage U_N: 500 VÃAC 500 VÃDC Nominal current I_N: 20 A
Material specifications	Material: PA Cu Ni/Ag/Sn
Cable/line	Position marking: L, N, PE

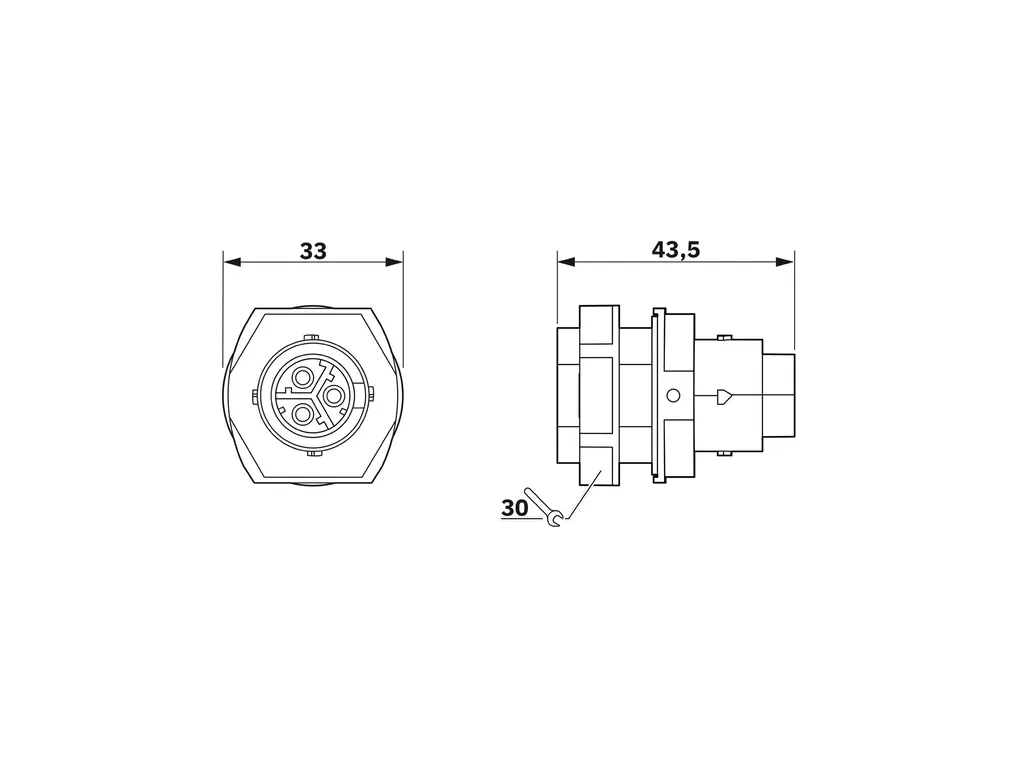

Mounting	Mounting type: M25 Connection method: Push-in connection
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -30°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -30°C ... 100°C Resistance to UV radiation: yes
Standards and regulations	Resistance to UV radiation: yes
