PTPOWER 95 P-3L/N/FE-F - High-current terminal block

High-current terminal block, blocked, with test socket, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 5, connection method: PowerTurn connection, 1 level, Rated cross section: 95 mm², cross section: 25 mm²-95 mm², mounting type: direct screw connection, color: gray/blue/black-yellow

Cod. Articolo: 1091230 copia - copy

Cod. Fornitore: 1091230 copia - copy

PHOENIX CONTACT

Product properties	Product type: High current terminal block Number of positions: 5 Pitch: 25 mm Area of application: Railway industry Machine building Plant engineering Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W

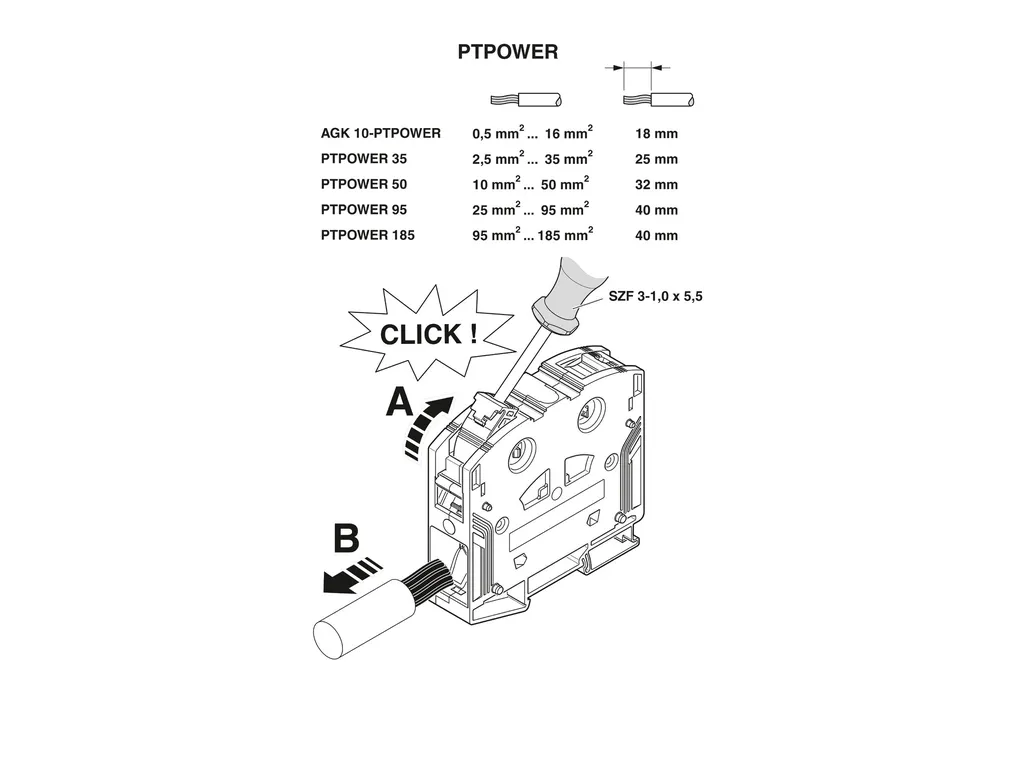

Connection data	Number of connections per level: 2 Nominal cross section: 95 mm² 1 level Stripping length: 40 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 25 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 2 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 25 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 25 mm² ... 95 mm² Cross-section with insertion bridge, rigid: 95 mm² Cross-section with insertion bridge, flexible: 70 mm² Nominal current: 232 A Maximum load current: 232 A (with 95 mm² conductor cross section) Nominal voltage: 1000 V Nominal cross section: 95 mm² 1 level Connection cross sections directly pluggable Conductor cross section rigid: 25 mm² ... 95 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 25 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 25 mm² ... 95 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯ÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1206612 SZF 3-1,0X5,5 List of bridges: Insertion bridge / EB 2-25/PT / 3260157 Insertion bridge / EB 3-25/PT / 3260160 Bridge data: 144 A / 50 mm² 174 A / 70 mm² 144 A / 50 mm² 174 A / 70 mm² Ex temperature increase: 40 K (237ÃAÃ/Ã95Ãmm²) Rated voltage: 1100 V at bridging with insertion bridge: 1100 V for bridging with bridge: 1100 V Rated insulation voltage: 1000 V output: (Permanent) Ex level General Rated current: 215 A Maximum load current: 215 A Contact resistance: 0.1 mÃ© Ex connection data General Ferrule length: 40 mm Stripping length: 40 mm Nominal cross section: 95 mm² Rated cross section AWG: 4/0 Connection capacity rigid: 25 mm² ... 95 mm² Connection capacity AWG: 4 ... 4/0 Conductor cross section flexible, with ferrule without plastic sleeve min.: 25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 95 mm² Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG: 4 ... 4/0
Dimensions	Width: 125 mm Height: 101 mm Depth on NSÃ35/15: 105 mm Drill hole spacing: 126.4 mm Hole diameter: 6.5 mm Pitch: 25 mm
Material specifications	Color: gray/blue/black-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No Technical data Drill hole spacing: 126.4 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: direct screw connection
