1091240 PHOENIX CONTACT -

PTPOWER 95 P-FE-F - High-current terminal block

High-current terminal block, with test socket, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 25 mm²-95 mm², mounting type: direct screw connection, color: black/yellow

Cod. Articolo: 1091240 copia - copy

Cod. Fornitore: 1091240 copia - copy

PHOENIX CONTACT

Product properties	Product type: High current terminal block Number of positions: 1 Pitch: 25 mm Area of application: Railway industry Machine building Plant engineering Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W

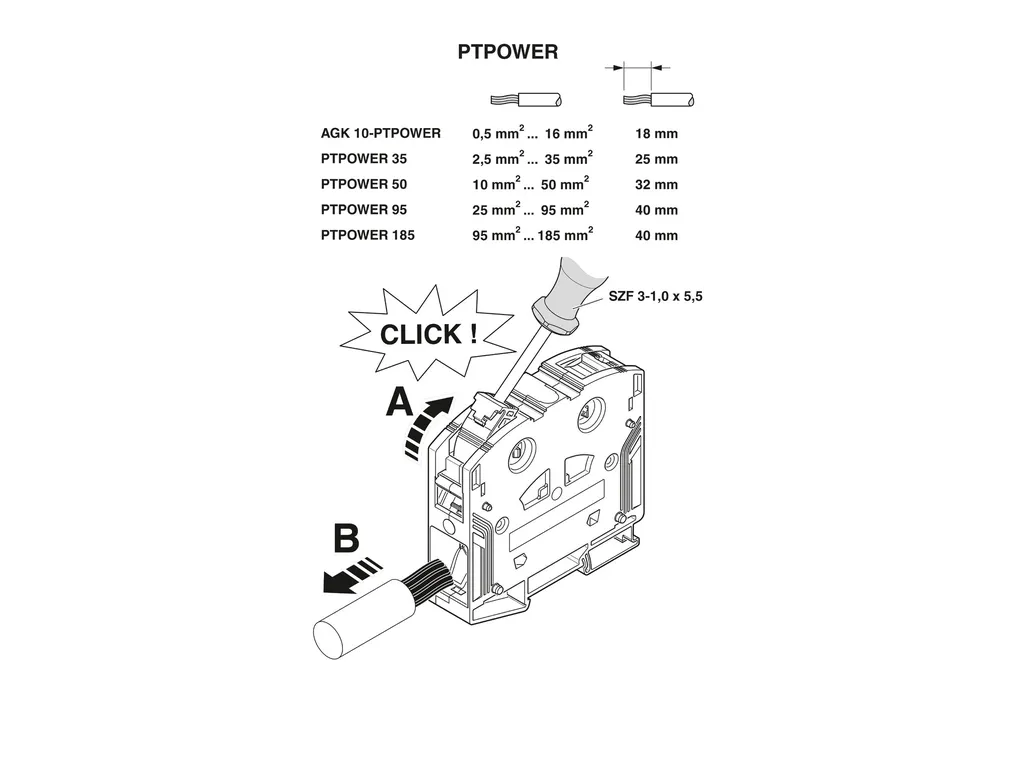

Connection data	Number of connections per level: 2 Nominal cross section: 95 mm² 1 level Stripping length: 40 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 25 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 2 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 25 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 25 mm² ... 95 mm² Cross-section with insertion bridge, rigid: 95 mm² Cross-section with insertion bridge, flexible: 70 mm² Nominal current: 232 A Maximum load current: 232 A (with 95 mm² conductor cross section) Nominal voltage: 1000 V 1 level Connection cross sections directly pluggable Conductor cross section rigid: 25 mm² ... 95 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 25 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 25 mm² ... 95 mm²
Dimensions	Width: 25 mm Height: 139.1 mm Drill hole spacing: 126.4 mm Hole diameter: 6.5 mm Pitch: 25 mm
Material specifications	Color: black/yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No Technical data Drill hole spacing: 126.4 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: direct screw connection
