| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/116c0b2d77485646837c297744f385c1/-S204x204-FJPG Width: 45 mm Height: 126 mm Depth: 79.1 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715). |
| Interfaces | PROFIBUS DP V0/V1 class 2 master Number of interfaces: 1 Connection method: D-SUB-9 female connector Transmission speed: 12 Mbps Transmission length: max. 100 m |
| System properties | System limits Number of supported devices: max. 125 |

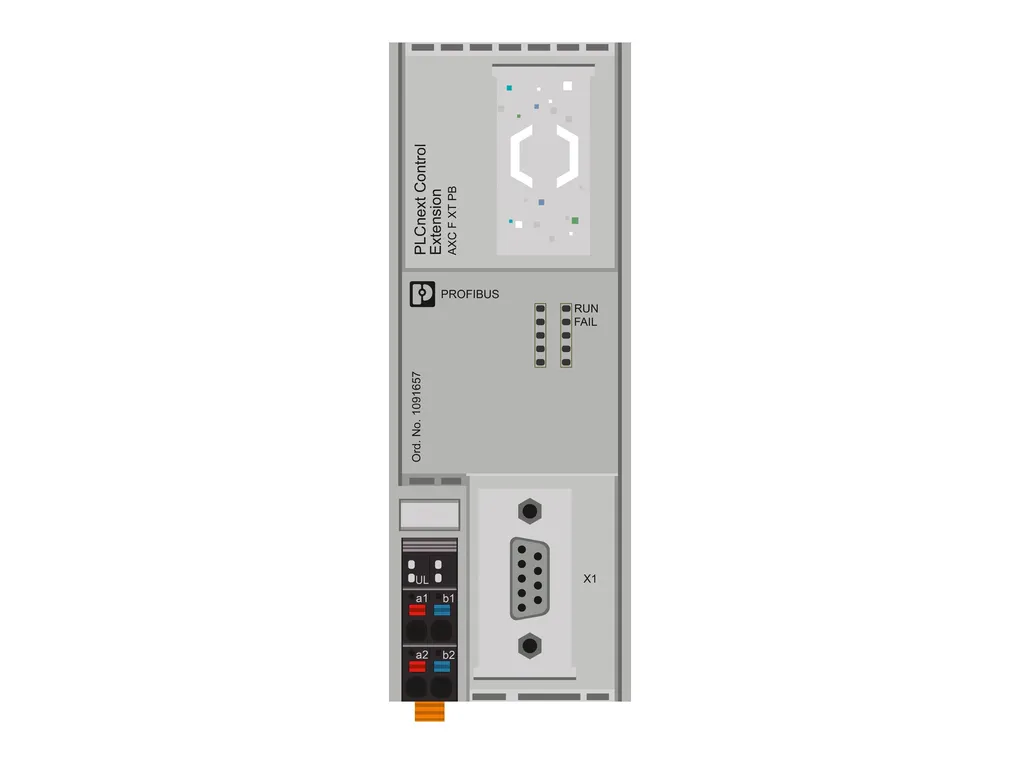

| Product properties | Type: modular Product type: I/O component Product family: PLCnext Control Extension Scope of delivery: including bus base module and AxiolineÃF connector |
| Electrical properties | Potentials: Supply of the logic voltage U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 220 mA typ. 70 mA Protective circuit: Reverse polarity protection; Polarity protection diode Transient protection; Suppressor diode |
| Connection data | Connection technology Connection name: AxiolineÃF connector Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineÃF connector Connection method: Push-in connection Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C (with 0.5Ãm/s ventilation speed up to 2,000ÃmÃabove mean sea level) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3,000Ãm above MSL (at an operating temperature of up toÃ55°C and with 0.5Ãms ventilation speed)) Permissible humidity (operation): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1) |
| Mounting | Mounting type: DIN rail mounting |
