1094477 PHOENIX CONTACT -

PTS 2,5-QUATTRO BK - Feed-through terminal block

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 4, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: black

Cod. Articolo: 1094477 copia - copy

Cod. Fornitore: 1094477 copia - copy

PHOENIX CONTACT

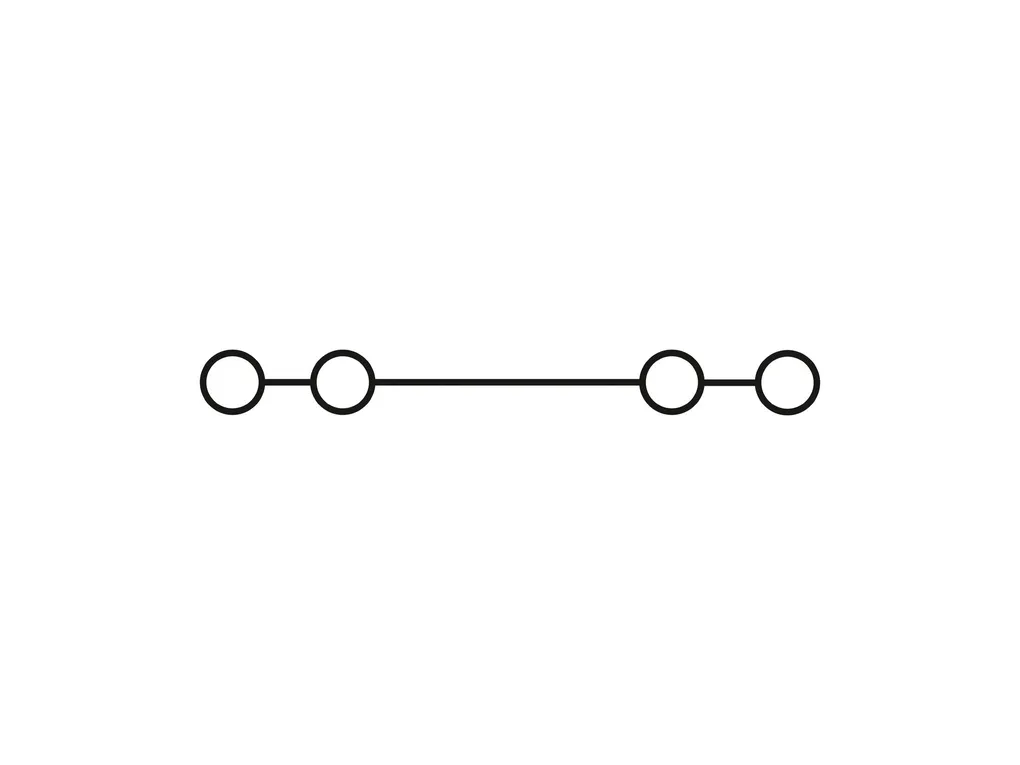

Product properties	Product type: Multi-conductor terminal block Product family: PTS Number of connections: 4 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 0.77 W
Connection data	Number of connections per level: 4 Nominal cross section: 2.5 mm² 1 level Stripping length: 8 mm ... 10 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.14 mm² ... 4 mm² Cross section AWG: 26 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 26 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² Nominal current: 24 A (with 4Ãmm² conductor cross section) Maximum load current: 28 A (with 4Ãmm² conductor cross section, rigid) Nominal voltage: 800 V Nominal cross section: 2.5 mm² 1 level Connection cross sections directly pluggable Conductor cross section rigid: 0.34 mm² ... 4 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 2.5 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯ÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 3031762 D-STS 2,5 1204517 SZF 1-0,6X3,5 3022276 CLIPFIX 35-5 3022218 CLIPFIX 35 Ex temperature increase: 40 K (23.8 A / 2.5 mm²) Rated voltage: 550 V Rated insulation voltage: 500 V output: (Permanent) Ex level General Rated current: 21 A Maximum load current: 25 A Contact resistance: 1.08 mÃ© Ex connection data General Nominal cross section: 2.5 mm² Rated cross section AWG: 14 Connection capacity rigid: 0.14 mm² ... 4 mm² Connection capacity AWG: 26 ... 12 26 ... 14 Connection capacity flexible: 0.14 mm² ... 2.5 mm²
Dimensions	Width: 5.2 mm End cover width: 2.2 mm Height: 49 mm Depth on NSÃ35/7,5: 43 mm Depth on NSÃ35/15: 50.5 mm
Material specifications	Color: black Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
