1096432 PHOENIX CONTACT -

Input data	AC operation Supply system configuration: Star network (TN, TT, IT (PE)) Nominal input voltage range: 100 VÃAC ... 240 VÃAC Input voltage range: 100 VÃAC ... 240 VÃAC -15Ã%Ã...Ã+10Ã% Derating: < 90 VÃAC (1Ã%/V) Typical national grid voltage: 120 VÃAC 230 VÃAC Voltage type of supply voltage: AC Inrush current: typ. 10 A (at 25Ã°C) Inrush current integral (I²t): < 0.2 A²s Frequency range (f_N): 50 Hz ... 60 Hz Ã±10Ã% Mains buffering time: typ. 16 ms (120ÃVÃAC) typ. 20 ms (230 V AC) Current consumption: 2.6 A (100ÃVÃAC) 2.2 A (120ÃVÃAC) 1.13 A (230 VÃAC) 1.2 A (240ÃVÃAC) Protective circuit: Transient surge protection; Varistor, gas-filled surge arrester Switch-on time: typ. 400 ms Device mains fuse: 5 A internal (device protection), fast-blow Recommended breaker for input protection: 6 A ... 16 A (Characteristic B, C, D, K or comparable) Discharge current to PE: < 3.5 mA
Output data	Efficiency: typ. 92 % (120ÃVÃAC) typ. 94 % (230 VÃAC) Nominal output voltage: 24 VÃDC Setting range of the output voltage (U_Set): 24 VÃDC ... 28 VÃDC (> 24 VÃDC, constant capacity restricted) Nominal output current (I_N): 10 A Short-circuit-proof: yes No-load proof: yes Crest factor: typ. 1.65 (120ÃVÃAC) typ. 1.63 (230 VÃAC) Output power (P_N): 240 W Connection in parallel: yes, for redundancy Connection in series: yes, for increased output voltage Feedback voltage resistance: Ã¢Ã¢°¤ 35 VÃDC Protection against overvoltage at the output (OVP): Ã¢Ã¢°¤ 35 VÃDC Residual ripple: typ. 50 mV_PP (with nominal values) Control deviation: < 1 % (change in load, static 10 % ... 90 %) < 3 % (change in load, dynamic 10 % ... 90 %) < 0.1 % (change in input voltage Ã±10 %) Rise time: < 1 s (U_OutÃ=Ã10Ã%Ã...Ã90Ã%) Minimum no-load power dissipation: < 4 W (120ÃVÃAC) Maximum no-load power dissipation: < 4 W (230 V AC) Minimum nominal load power dissipation: < 21 W (120ÃVÃAC) Power loss nominal load max.: < 16 W (230 VÃAC) Signal relay 13/14 Connection level: 3.x Connection labeling: 3.1 (13), 3.2 (14) Switch contact (floating): OptoMOS Switching voltage: max. 30 V AC/DC max. 60 VÃDC Current carrying capacity: max. 50 mA State condition: U_OUT >Ã0,9ÃxÃU_N (Contact closed) U_OUT <Ã0,9ÃxÃU_N (Contact open)
Connection data	Input Position: 1.x Identification: 1.1 (Ã¯Ã¢¬µ), 1.2 (L), 1.3 (N) Conductor connection Connection method: Screw connection rigid: 0.2 mm² ... 2.5 mm² flexible: 0.2 mm² ... 2.5 mm² flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² flexible with ferrule with plastic sleeve: 0.25 mm² ... 2.5 mm² rigid (AWG): 24 ... 14 (Cu) Stripping length: 6.5 mm Tightening torque: 0.5 Nm ... 0.6 Nm 4 lb_f-in. ... 5 lb_f-in. Drive form screw head: Slotted L Output Position: 2.x Identification: 2.1, 2.2 (+), 2.3, 2.4 (-) Conductor connectionÃ¢Ã¢¬Ã¢¹ Connection method: Screw connection rigid: 0.2 mm² ... 2.5 mm² flexible: 0.2 mm² ... 2.5 mm² flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² flexible with ferrule with plastic sleeve: 0.25 mm² ... 2.5 mm² rigid (AWG): 24 ... 14 (Cu) Stripping length: 6.5 mm Tightening torque: 0.5 Nm ... 0.6 Nm 4 lb_f-in. ... 5 lb_f-in. Drive form screw head: Slotted L Signal Position: 3.x Identification: 3.1 (13), 3.2 (14) Conductor connectionÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Connection method: Screw connection rigid: 0.2 mm² ... 2.5 mm² flexible: 0.2 mm² ... 2.5 mm² flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² flexible with ferrule with plastic sleeve: 0.25 mm² ... 2.5 mm² rigid (AWG): 24 ... 14 (Cu) Stripping length: 6.5 mm Tightening torque: 0.5 Nm ... 0.6 Nm 4 lb_f-in. ... 5 lb_f-in. Drive form screw head: Slotted L
Signaling	LED signaling Types of signaling: LED DCÃOK Ã¢Ã¢¬Ã¢ signal state operation (U_N = 24ÃVÃDC, I_Out = I_N) Function: Visual operating state display Color: green LED off: Supply voltage input AC not present (Off) LED on (green), DC OK: U_OUT >Ã0,9ÃxÃU_N (On (green), DC OK) LED on (flashing green) DC OK < 0.9 x UN: U_OUT <Ã0,9ÃxÃU_N (on (flashing green))
Electrical properties	Number of phases: 1.00 Insulation voltage input/output: 4 kV AC (type test) 3 kV AC (routine test) Insulation voltage input / PE: 3.5 kV AC (type test) 2.4 kV AC (routine test)
Product properties	Product type: Power supply Product family: UNO POWER MTBF (IEC 61709, SN 29500): > 1219000 h (25Ã°C) > 678000 h (40Ã°C) > 366000 h (55Ã°C) Environmental protection directive: RoHS Directive 2011/65/EU WEEE Reach Insulation characteristics Protection class: I Degree of pollution: 2

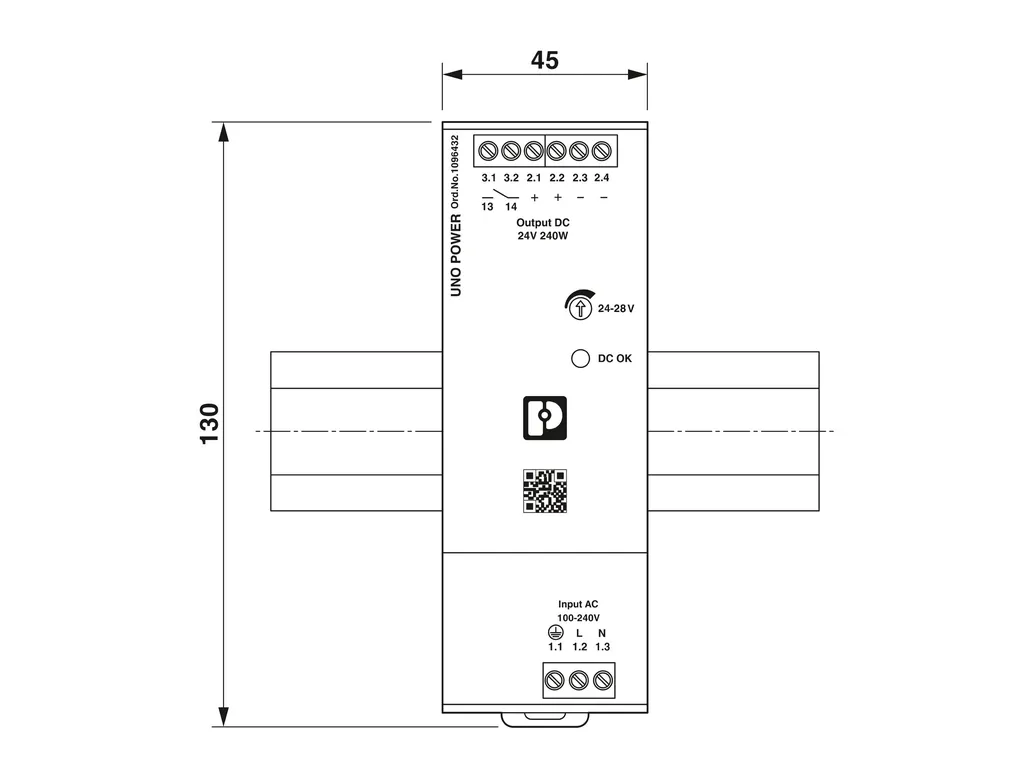

Dimensions	Item dimensions Width: 45 mm Height: 130 mm Depth: 129 mm 125 mm (Device depth (DIN rail mounting)) Installation dimensions Installation distance right/left (active, passive): 0 mm / 0 mm (P_OutÃÃ¢Ã¢°¥50%Ã) Installation distance top/bottom (active, passive): 30 mm / 30 mm (P_OutÃÃ¢Ã¢°¥50%Ã)
Mounting	Mounting type: DIN rail mounting Assembly instructions: alignable: 0Ãmm horizontally, 30Ãmm vertically Mounting position: horizontal DIN rail NS 35, EN 60715 With protective coating: No
Material specifications	Flammability rating according to UL 94: V0 (Housing, terminal blocks) Housing material: Metal Aluminum (AlMg3) / sheet steel, zinc-plated Hood version: Stainless steel Side element version: Aluminum Foot latch material: Sheet steel, zinc-plated
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (> 55°C Derating: 2.5 %/K) Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (start-up type tested): -40°C Maximum altitude: Ã¢Ã¢°¤ 3000 m (>Ã2000Ãm, Derating: 10Ã%/1000Ãm) Max. permissible relative humidity (operation): Ã¢Ã¢°¤ 95 % (at 25°C, non-condensing) Shock (operation): 18Ãms, 30g, per spatial direction (IEC 60068-2-27) Vibration (operation): 10ÃHzÃ...Ã50ÃHz, amplitude Ã±0.2Ãmm 50ÃHzÃtoÃ150ÃHz, 2.3Ãg, 90Ãmin.
Standards and regulations	Overvoltage category EN 61010-1: IIÃ(Ã¢Ã¢°¤Ã3000Ãm) Overvoltage categoryÃ¢Ã¢¬Ã¢¹ EN 62477-1: IIIÃ(Ã¢Ã¢°¤3000Ãm) Safety of power supply units up to 1100ÃV (insulation distances) Standard designation: Safety of power supply units up to 1100ÃV (insulation distances) Standards/specifications: DINÃENÃ61558-2-16 Electrical safety Standard designation: Electrical safety Standards/specifications: IEC 61010-2-201Ã(SELV) Electronic equipment for use in power installations Standard designation: Equipping high voltage installations with electronic equipment Standards/specifications: ENÃ50178/VDEÃ0160Ã(PELV) Safety for measurement, control, and laboratory equipment Standard designation: Safety for equipment for measurement, control, and laboratory use Standards/specifications: IEC 61010-1 Protective extra-low voltage Standard designation: Protective extra-low voltage Standards/specifications: IEC 61010-1 (SELV) IEC 61010-2-201 (PELV) Safe isolation Standard designation: Safe isolation Standards/specifications: IEC 61558-2-16 IEC 61010-2-201 Limitation of harmonic line currents Standard designation: Limitation of harmonic line currents Standards/specifications: ENÃ61000-3-2 Mains voltage dips Standard designation: Requirement of the semiconductor industry with regard to mains voltage dips Standards/specifications: SEMIÃF47Ã-Ã0706Ã(185ÃVÃAC)
Approvals	UL Identification: UL/C-UL Listed ULÃ61010-1 ULÃ¢Ã¢¬Ã¢¹ Identification: UL/C-UL Listed ULÃ61010-2-201 ULÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Identification: UL/C-UL Listed ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location) SIQ Identification: CB scheme (IEC 61010-1, IEC 61010-2-201)
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC Interference emission: Interference emission in accordance with ENÃ61000-6-3 (residential and commercial) and ENÃ61000-6-4 (industrial) EMC requirements for noise immunity: ENÃ61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Conducted noise emission: ENÃ55016 ENÃ61000-6-3 (Class B) Noise emission: ENÃ55016 ENÃ61000-6-3 (Class B) Harmonic currents Standards/regulations: ENÃ61000-3-2 ENÃ61000-3-2 (Class A) Frequency range: 0 kHz ... 2 kHz Flicker Standards/regulations: ENÃ61000-3-3 Frequency range: 0 kHz ... 2 kHz Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeÃ¢Ã¢¬Ã¢¹ Contact discharge: 6 kV (Test Level 3) Discharge in air: 8 kV (Test Level 3) Comments: Criterion A Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldÃ¢Ã¢¬Ã¢¹ Frequency range: 80 MHz ... 1 GHz 1 GHz ... 6 GHz Test field strength: 10 V/m (Test Level 3) Comments: Criterion A Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)Ã¢Ã¢¬Ã¢¹ Input: 4 kV (Test Level 4 - asymmetrical) Output: 2 kV (Test Level 3 - asymmetrical) Comments: Criterion A Surge voltage load (surge) Standards/regulations: ENÃ61000-4-5 Input: 2 kV (Test Level 4 - symmetrical) 4 kV (Test Level 4 - asymmetrical) Output: 1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical) Comments: Criterion A Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceÃ¢Ã¢¬Ã¢¹ Input/Output: asymmetrical Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Voltage dips Standards/regulations: ENÃ61000-4-11 Voltage: 230 VÃAC Frequency: 50 Hz Voltage dip: 70 % 40 % 0 % Number of periods: 25Ã/Ã30Ãperiods 12 periods 1 period Comments: Criterion A Criterion B Additional text: Test Level 2 Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself.
