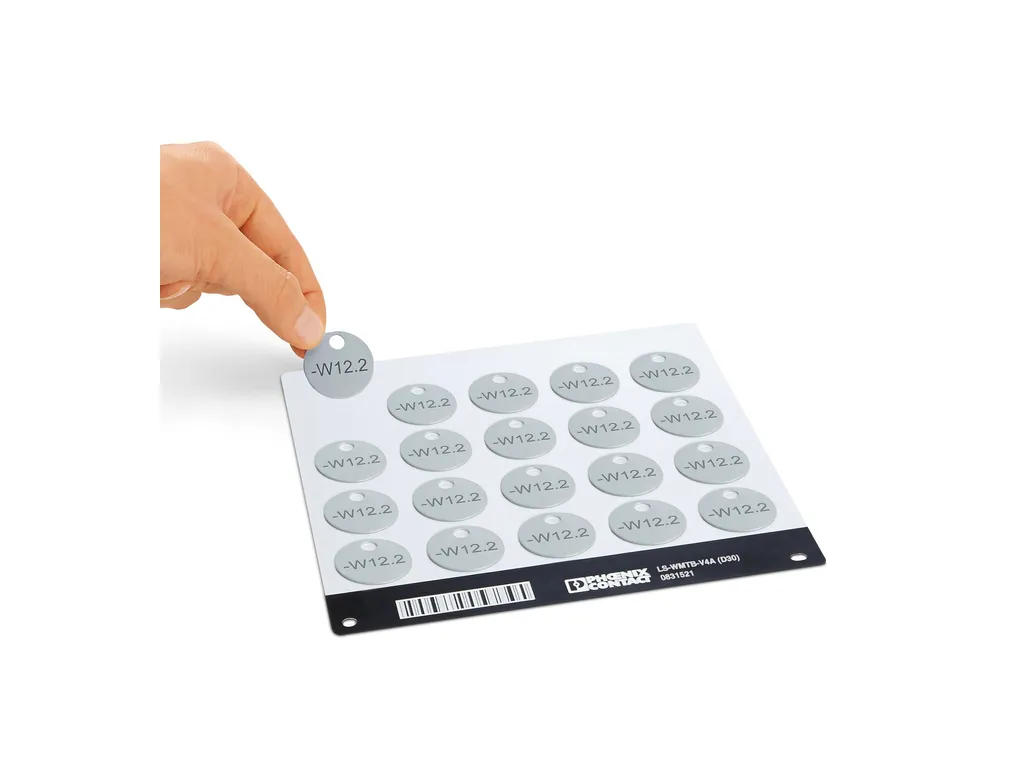

| Product properties | Type: circular Laser sheet Product type: Conductor marking Marking Number of individual labels: 9 Identification technology: Direct laser marking |
| Dimensions | Width: 50 mm Length: 50 mm Hole diameter: 5.00 mm Material strength: 0.50 mm External dimensions Outside diameter: 1 mm ... 136 mm |
| Material specifications | Color: silver Material: V4A (1.4404; AISI 316L) Components: free from silicone, halogen, and cadmium |
| Cable/line | External cable diameter: > 2.9 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed Test for substances that would hinder coating with paint or varnishââ¬Ã¢¹ Result: Test passed Scratch test for the determining scratch resistance Specification: DINÃENÃISOÃ1518-1:2019-10 (following) Requirements: ââ°¥Ã5ÃN Result: Test passed Tesafilm test Specification: DINÃENÃISOÃ2409:2013 (following) Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) IEC 60068-2-2:2007-07 Result: Test passed Test duration: 96 h Duration: 240Ãh Temperature for testing: 350°C Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) ISOÃ175:2010 (following) Test duration: 240 h 168 h Rating 225ðC (250ðC): Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 (following) Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h Salt spray testââ¬Ã¢¹ Specification: ISOÃ9227:2017-03 Result: Test passed Test duration: 336 h High pressure test Specification: ISOÃ20653:2013-02 Result: Test passed Ambient conditions Ambient temperature (operation): -80°C ... 350°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % (Storage in a dry and dark place in the original packaging is recommended) Shelf life: 24Ãmonths |
| Standards and regulations | Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1) |
| Mounting | Mounting type: Assembly with cable ties |
