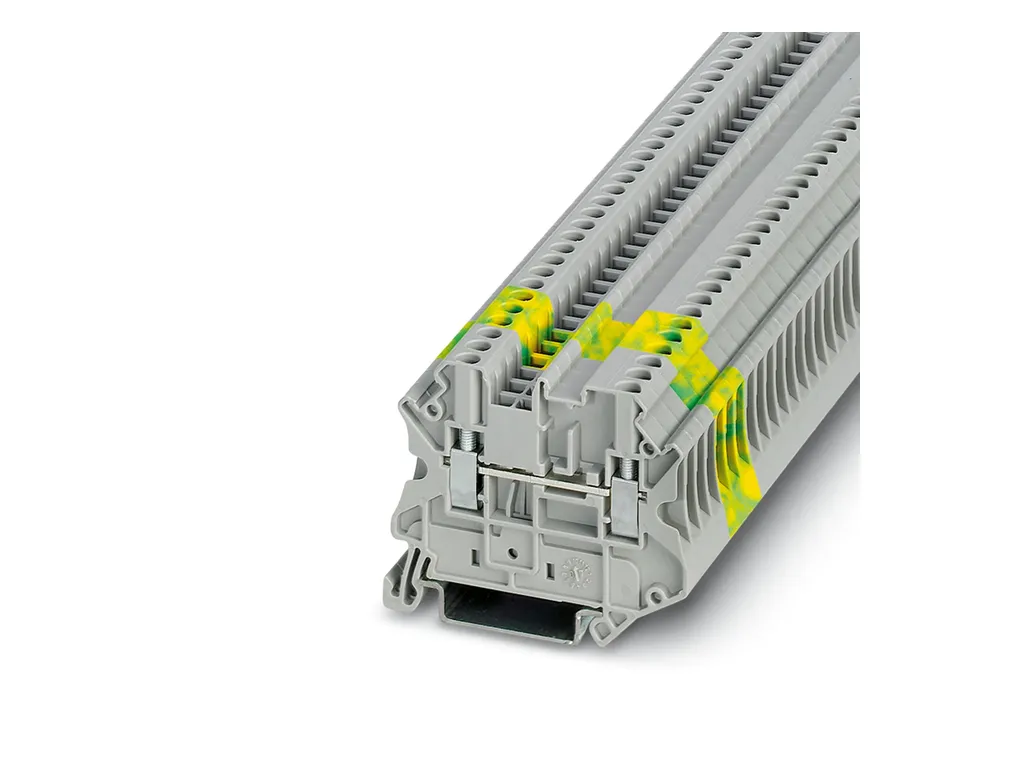

| Product properties | Product type: Disconnect terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Data management status Article revision: 03 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 0.77 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 2.5 mm² Rated cross section AWG: 12 Level 1 above 1 below 1 Screw thread: M3 Tightening torque: 0.5 ... 0.6 Nm Stripping length: 9 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.14 mm² ... 4 mm² Cross section AWG: 26 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 26 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 2.5 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Nominal current: 24 A Maximum load current: 32 A (with 4 mm² conductor cross section) Nominal voltage: 800 V Nominal cross section: 2.5 mm² |
| Dimensions | Width: 5.2 mm End cover width: 2.2 mm Height: 57.8 mm Depth on NS 35/7,5: 47.5 mm Depth on NS 35/15: 55 mm |
| Material specifications | Color: red (RAL 3001) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60 °C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C Relative insulation material temperature index (Elec., UL 746 B): 125 °C |
| Electrical tests | Surge voltage test Test voltage setpoint: 9.8 kV Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature ââ°¤ 45 K Result: Test passed Short-time withstand current 2.5 mm²: 0.3 kA Power-frequency withstand voltage Test voltage setpoint: 2 kV Result: Test passed |
| Mechanical properties | Mechanical data Open side panel: Yes |
| Mechanical tests | Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NS 35 Result: Test passed Test for conductor damage and slackening Rotation speed: 10 (+/- 2) rpm Revolutions: 135 Conductor cross section/weight: 0.14 mm² / 0.2 kg 2.5 mm² / 0.7 kg 4 mm² / 0.9 kg Result: Test passed |
| Environmental and real-life conditions | Needle-flame test Time of exposure: 30 s Result: Test passed Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NS 35/15 |
