1107460 PHOENIX CONTACT -

RPI-BC 107,6 EXT DEV-KIT KMGY - Electronic housing

DIN rail housing for Raspberry Pi computers (suitable for Raspberry Pi A+, B+, B2, B3, B4); set consisting of lower part, upper part, cover, perfboard, and holder for connecting the HBUS and GPIO strip; housing in accordance with DIN 43880

Cod. Articolo: 1107460 copia - copy

Cod. Fornitore: 1107460 copia - copy

PHOENIX CONTACT

Product properties	Product type: Stackable housing set Type: Housing set Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Ventilation openings present: yes Housing series: BC

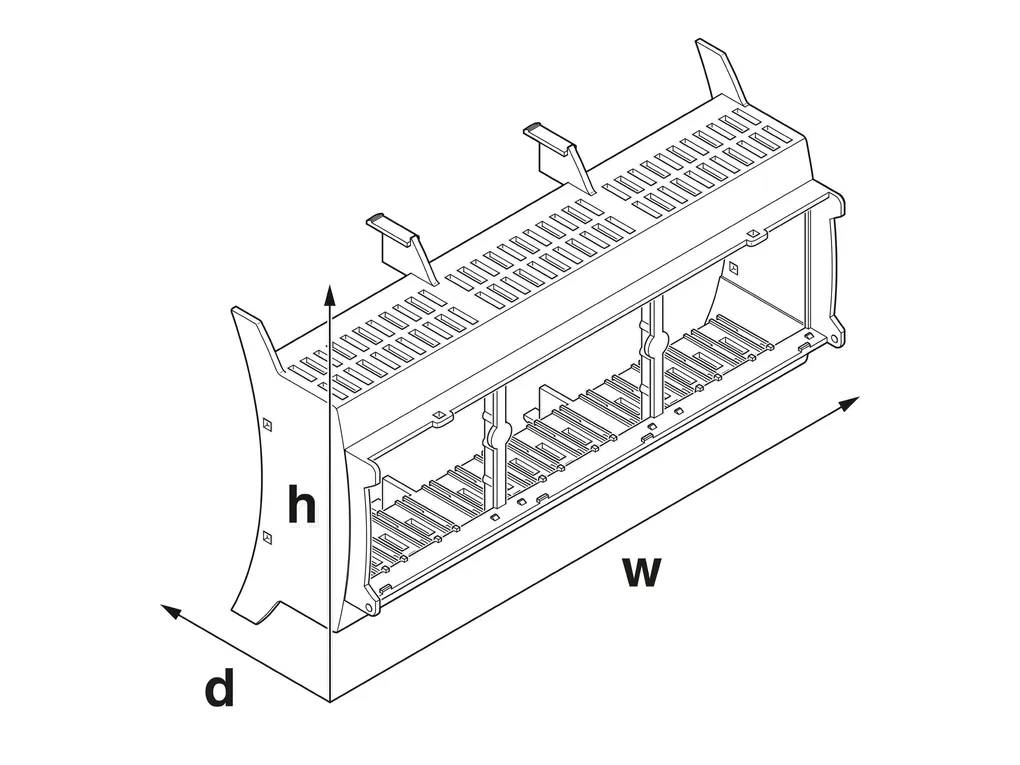

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5bbeb30e7209884fb76db1a26f2f02b4/-S204x204-FJPG Width: 107.6 mm Height: 89.7 mm Depth: 62.2 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 Housing material: Polycarbonate
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C
PCB data	Type of PCB mount: Latching
Mounting	Mounting type: DIN rail mounting/wall mounting Mounting position: parallel to the DIN rail
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
