1116189 PHOENIX CONTACT -

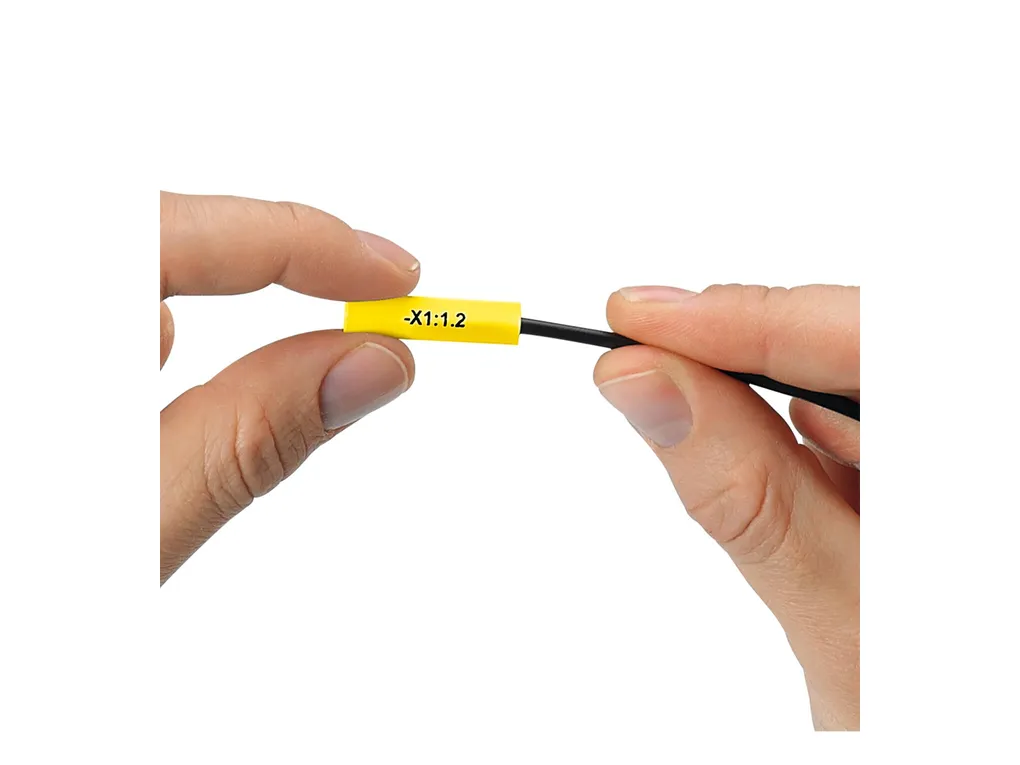

MM-WMS-2 9,5 (EX16)R C1 YE/BK - Shrink sleeve

Shrink sleeve, Roll, yellow/black, unlabeled, can be labeled with: THERMOMARKGO, THERMOFOX, THERMOMARK GO.K, mounting type: slide-on, cable diameter range: 4.8 ... 9.5 mm, lettering field size: continuous x 12.5mm, Number of individual labels: 1

Cod. Articolo: 1116189 copia - copy

Cod. Fornitore: 1116189 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Shrink sleeve Area of application: Railway industry Marking Number of individual labels: 1 Number of individual labels per row: 1 Identification technology: Thermal transfer
Dimensions	Width: 16.5 mm Length: 1.8 m External dimensions Outside diameter: 4.8 mm ... 9.5 mm
Material specifications	RoHS compliant: yes Color: yellow/black Material: Polyolefine Base element material: polyolefine Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 3 Components: free from silicone, halogen, and cadmium
Cable/line	External cable diameter: 4.8 mm ... 9.5 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -55°C ... 125°C Recommended storage conditions: 23Ã°C/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 12Ãmonths
Mounting	Mounting type: slide-on
