1117754 PHOENIX CONTACT -

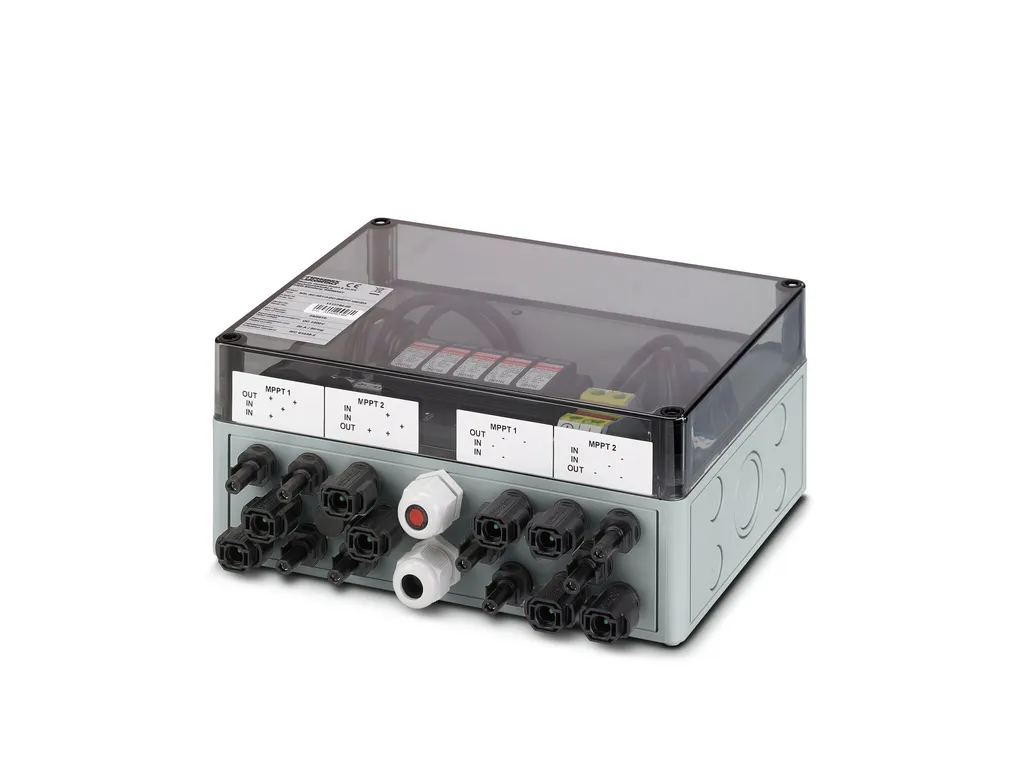

SOL-SC-2ST-0-DC-2MPPT-1001EQ - String combiner box (SCB)

String combiner box for photovoltaic systems up to 1,000VDC for connecting 2x 2strings. With surge protection (type1/2) and SUNCLIX DC connectors for the input and output side (SUNCLIX mating connectors supplied as standard).

Cod. Articolo: 1117754 copia - copy

Cod. Fornitore: 1117754 copia - copy

PHOENIX CONTACT

Product properties	Product type: String combiner box (SCB) Scope of delivery: SUNCLIX DC connector for connecting the SCB Insulation characteristics Protection class: II
Electrical properties	General MPP voltage U_N: max. 1000 VÃDC Non-load voltage U_OC: max. 1100 VÃDC Current per string I_max: max. 20 A Total current MPP tracker: max. 40 A Surge protection EN type: T1 IEC test classification: T1 Protection level U_p: Ã¢Ã¢°¤ 3.5 kV Total discharge current I_total (10/350)ÃÃµs: 5 kA Total discharge current I_total(8/20)ÃÃµs: 40 kA Short-circuit current rating I_SCPV: 40 A
Input data	DC Number of inputs: Strings: 2 (per MPP tracker) Number of supported MPP trackers: 2
Output data	DC Number of outputs: MPP tracker: 2 Number of outputs: Ã±: 2 (per MPP tracker)
Connection data	DC input Type of cable entry: SUNCLIX Cable cross section: 2.5 mm² ... 6 mm² Protective bonding and protective grounding conductor Type of cable entry: Cable gland Connection method: Screw connection Cable cross section: 2x 16 mm² External cable diameter: 2x 6 mm ... 12 mm DC output Type of cable entry: SUNCLIX Cable cross section: 2.5 mm² ... 6 mm²
Dimensions	Housing Width: 254 mm Height: 180 mm Depth: 111 mm
Material specifications	Material Housing: Polycarbonate Material Cover/door: Polycarbonate (transparent)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -20°C ... 55°C
