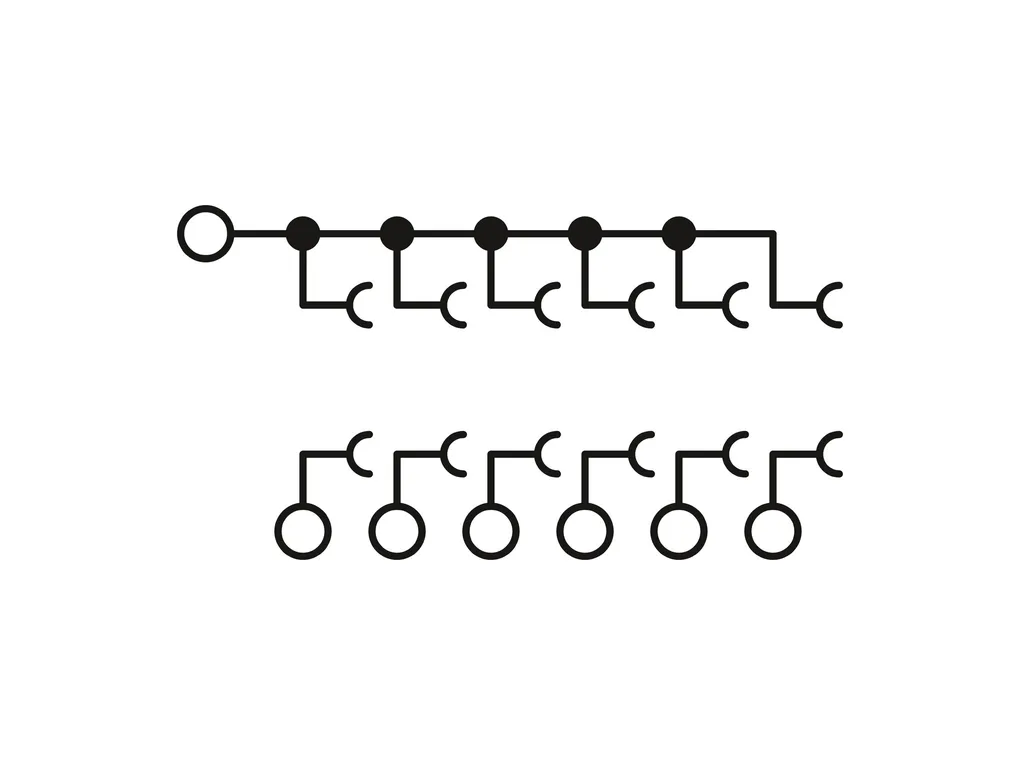

PTFIX 6/6X2,5-TG - Distribution block

Distribution block, Current and voltage are determined by the plug used., Basic terminal block with feed-in and multifunctional disconnect zone in the branches, nom. voltage:400 V, nominal current:20 A, Load contact, connection method: Push-in connection, Rated cross section:2.5 mm2, cross section:0.14 mm2-4 mm2, Line contact, connection method: Push-in connection, Rated cross section:6 mm2, cross section:0.5 mm2-10 mm2, mounting: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color:gray
Cod. Articolo: 1130751 copia - copy
Cod. Fornitore: 1130751 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Current and voltage are determined by the plug used.
Generalâۉ€¹
Note: The max. load current must not be exceeded by the total current of all connected conductors.
For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DINÂVDEÂ0100-430:2010-10) sectionÂ433.2 ff must be observed!
Product propertiesProduct type: Distributor terminal block
Number of connections: 7
Number of rows: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical propertiesRated surge voltage: 6 kV
Maximum power dissipation for nominal condition: 0.77 W
Connection dataService Entrance: yes
Number of connections per level: 7
Nominal cross section: 2.5 mm²
Rated cross section AWG: 14
Load contact
Stripping length: 8 mm ... 10 mm
Internal cylindrical gage: A3
B3
Connection in acc. with standard: IEC 60947-7-1
Conductor cross section rigid: 0.14 mm² ... 4 mm²
Cross section AWG: 26 ... 12 (converted acc. to IEC)
Conductor cross section flexible: 0.14 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]: 26 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 2.5 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.5 mm² ... 2.5 mm²
Nominal current: 20 A
Maximum load current: 20 A (with 4Âmm² conductor cross section)
Maximum total current: 57 A (with 10 mm² conductor cross section)
Nominal voltage: 400 V
Note: The IEC 60947-7-1 standard applies for the use of mounting accessories.
Nominal cross section: 2.5 mm²
Line contact
Stripping length: 10 mm ... 12 mm
Internal cylindrical gage: A5
B4
Conductor cross section rigid: 0.5 mm² ... 10 mm²
Cross section AWG: 20 ... 8 (converted acc. to IEC)
Conductor cross section flexible: 0.5 mm² ... 10 mm²
Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 6 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.5 mm² ... 1.5 mm²
Nominal cross section: 6 mm²
Connection in acc. with standard: IEC 60998-2-2
Nominal voltage: 450 V (in accordance with IEC 60998-2-2)
Load contact Connection cross sections directly pluggable
Conductor cross section rigid: 0.34 mm² ... 4 mm²
Conductor cross section, rigid [AWG]: 22 ... 18 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.75 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 2.5 mm²
Line contact Connection cross sections directly pluggable
Conductor cross section rigid: 1 mm² ... 10 mm²
Conductor cross section, rigid [AWG]: 18 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 1.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 1 mm² ... 6 mm²
DimensionsWidth: 47.6 mm
Height: 28.6 mm
Depth: 21.7 mm
Material specificationsColor: gray
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Static insulating material application in cold: -60°C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C
Relative insulation material temperature index (Elec., UL 746 B): 130°C
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162): passed
Specific optical density of smoke NFPA 130 (ASTM E 662): passed
Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical testsSurge voltage test
Result: Test passed
Temperature-rise test
Requirement temperature-rise test: Increase in temperature ≤Â45ÂK
Result: Test passed
Short-time withstand current 6 mm²: 0.72 kA
Short-time withstand current 2.5 mm²: 0.3 kA
Power-frequency withstand voltage
Test voltage setpoint: 1.89 kV
Result: Test passed
Mechanical propertiesMechanical data
Open side panel: No
Mechanical testsMechanical strength
Result: Test passed
Attachment on the carrier
DIN rail/fixing support: NSÂ35/NSÂ15
Result: Test passed
Note: When aligning several blocks, it is recommended to either place a DIN rail adapter underneath the connection point or a flange element between the blocks.
Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen.
When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half.
Test for conductor damage and slackening
Rotation speed: 10Ârpm
Revolutions: 135
Conductor cross section/weight: 0.5 mm² / 0.3 kg
6 mm² / 1.4 kg
10 mm² / 2 kg
Result: Test passed
Test for conductor damage and slackeningâۉ€¹
Rotation speed: 10Ârpm
Revolutions: 135
Conductor cross section/weight: 0.14 mm² / 0.2 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg
Result: Test passed
Environmental and real-life conditionsAging
Temperature cycles: 192
Result: Test passed
Needle-flame test
Time of exposure: 30 s
Result: Test passed
Oscillation/broadband noise
Specification: DINÂENÂ50155 (VDEÂ0115-200):2018-05
Spectrum: Service life test categoryÂ2, bogie-mounted
Service life test categoryÂ1, classÂB, body mounted
Frequency: f1 = 5 Hz to f2 = 250 Hz
f1 = 5 Hz to f2 = 150 Hz
ASD level: 6.12 (m/s²)²/Hz
0.964 (m/s²)²/Hz
Acceleration: 3.12g
0.58g
Test duration per axis: 5 h
Test directions: X-, Y- and Z-axis
Result: Test passed
Shocks
Specification: DINÂENÂ50155 (VDEÂ0115-200):2018-05
Pulse shape: Half-sine
Acceleration: 30g
5g
Shock duration: 18Âms
30Âms
Number of shocks per direction: 3
Test directions: X-, Y- and Z-axis (pos. and neg.)
Result: Test passed
Ambient conditions
Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Âh, -60°C to +70°C)
Ambient temperature (assembly): -5°C ... 70°C
Ambient temperature (actuation): -5°C ... 70°C
Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulationsConnection in acc. with standard: IEC 60947-7-1
IEC 60998-2-2
MountingMounting type: for snapping onto a DIN rail adapter
Direct mounting with flange
Free-hanging
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00909.pdf

Approvals_01708.pdf

Manufacturer_declaration_02826.pdf

Manufacturer_declaration_04514.pdf

Safety_notes_00001.pdf

Technical_drawing_09054.pdf
