1145419 PHOENIX CONTACT -

DMCV 0,5/ 4-G1SHL-2,54P20THR24 - PCB header

PCB headers, nominal cross section: 0.34 mm², color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact surface: Gold, contact connection type: Pin, number of positions: 4, product range: DMCV 0,5/..-G1SHL-THR, pitch: 2.54 mm, mounting: THR soldering, solder pin [P]: 2 mm, plug-in system: COMBICON DFMC 0,5 lock & shielded, Electrical properties: shielded, Pin connector pattern alignment: Standard, locking: shielded connection, mounting: Lock & Shield, type of packaging: 24 mm wide tape, Suitable for CAT5

Cod. Articolo: 1145419 copia - copy

Cod. Fornitore: 1145419 copia - copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Connectors XS Product type: PCB headers Product family: DMCV 0,5/..-G1SHL-THR Number of positions: 4 Pitch: 2.54 mm Electrical characteristic: shielded
Electrical properties	Nominal current I_N: 5 A Nominal voltage U_N: 160 V Degree of pollution: 3 Contact resistance: 5 mÃ© Rated voltage (III/3): 50 V Rated surge voltage (III/3): 0.8 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 160 V Rated surge voltage (II/2): 1.5 kV Electrical characteristic: shielded
Mounting	Mounting type: THR soldering Processing notes Process: Reflow/wave soldering Moisture Sensitive Level: MSL 1 Classification temperature T_c: 260°C Solder cycles in the reflow: 3
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Completely gold-plated Metal surface contact area (top layer): Gold (0.25 Au) Metal surface contact area (middle layer): Nickel (2 - 4 Ãµm Ni) Metal surface soldering area (top layer): Gold (0.25 Au) Metal surface soldering area (middle layer): Nickel (2 - 4 Ãµm Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIa CTI according to IEC 60112: 175 Flammability rating according to UL 94: V0
Notes	General: The item is qualified for CAT5 Ethernet applications. For this reason, it is suited for use in IoT devices.
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70e0f23c282363459709fcfe7d5e7131/-S204x204-FJPG Pitch: 2.54 mm Width [w]: 14.74 mm Height [h]: 11.91 mm Length [l]: 8.19 mm Installed height: 9.91 mm Solder pin length [P]: 2 mm PCB design Hole diameter: 1.2 mm
Mechanical tests	Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 100 Insertion strength per pos. approx.: 3 N Withdraw strength per pos. approx.: 3 N
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 4 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI 175 Rated insulation voltage (III/3): 50 V Rated surge voltage (III/3): 0.8 kV minimum clearance value - non-homogenous field (III/3): 0.8 mm minimum creepage distance (III/3): 1.25 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 160 V Rated surge voltage (II/2): 1.5 kV minimum clearance value - non-homogenous field (II/2): 0.5 mm minimum creepage distance (II/2): 1.6 mm

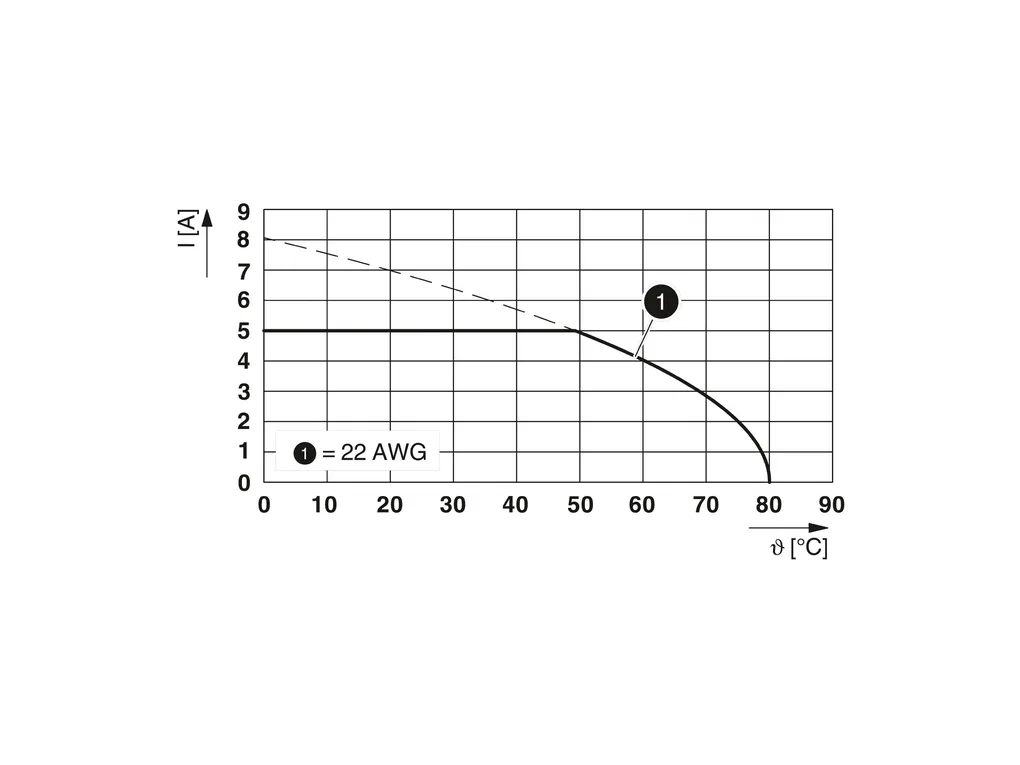

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 50Ãm/s² (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 5 mÃ© Contact resistance R₂: 4.6 mÃ© Insertion/withdrawal cycles: 100 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Climatic test Specification: ISOÃ6988:1985-02 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40°C/1 cycle Thermal stress: 80Ã°C/168Ãh Power-frequency withstand voltage: 1.39 kV Ambient conditions Ambient temperature (storage/transport): -20°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 80°C Ambient temperature (installation): -40°C ... 80°C (dependent on the derating curve) Ambient temperature (mobile installation): -20°C 80°C dependent on the derating curve
Packaging specifications	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5c9d0417f989e646afbbef42108ede86/-S204x204-FJPG Type of packaging: 24 mm wide tape [W] tape width: 24 mm [W2] coil overall dimension: 3.4 mm [A] coil diameter: 330 mm Outer packaging type: Transparent-Bag ESD level: (D) electrostatically conductive Specification: DINÃENÃ61340-5-1 (VDEÃ0300-5-1): 2008-07
