1150801 PHOENIX CONTACT -

DMC 0,5/ 1-G1SHL-2,54P20THRR24 - PCB header

PCB headers, nominal cross section: 0.34 mm², color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of positions: 1, product range: DMC 0,5/..-G1SHL-THR, pitch: 2.54 mm, mounting: THR soldering, plug-in system: COMBICON DFMC 0,5 lock & shielded, Electrical properties: shielded, Pin connector pattern alignment: Standard, locking: shielded connection, mounting: without, type of packaging: 24 mm wide tape

Cod. Articolo: 1150801 copia - copy

Cod. Fornitore: 1150801 copia - copy

PHOENIX CONTACT

Product properties	Product type: PCB headers Product family: DMC 0,5/..-G1SHL-THR Product line: COMBICON Connectors XS Number of positions: 1 Pitch: 2.54 mm Electrical characteristic: shielded Data management status Article revision: 01
Electrical properties	Nominal current I_N: 5 A Nominal voltage U_N: 160 V Contact resistance: 5.3 mÃ© Rated voltage (III/3): 50 V Rated surge voltage (III/3): 0.8 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 160 V Rated surge voltage (II/2): 1.5 kV Electrical characteristic: shielded
Mounting	Mounting type: THR soldering Processing notes Process: Reflow/wave soldering Moisture Sensitive Level: MSL 1 Classification temperature T_c: 260 °C Solder cycles in the reflow: 3
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Completely gold-plated Metal surface contact area (top layer): Gold (0.25 Au) Metal surface contact area (middle layer): Nickel (2 - 4 Ãµm Ni) Metal surface soldering area (top layer): Gold (0.25 Au) Metal surface soldering area (middle layer): Nickel (2 - 4 Ãµm Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIa CTI according to IEC 60112: 175 Flammability rating according to UL 94: V0
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/53110/full/b1500?format=jpg Pitch: 2.54 mm Width [w]: 7.1 mm Height [h]: 8.29 mm Length [l]: 14.35 mm
Mechanical tests	Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 100 Insertion strength per pos. approx.: 4 N Withdraw strength per pos. approx.: 3 N
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 1 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: > 5 MÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI 175 Rated insulation voltage (III/3): 50 V Rated surge voltage (III/3): 0.8 kV minimum clearance value - non-homogenous field (III/3): 0.8 mm minimum creepage distance (III/3): 1.25 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 160 V Rated surge voltage (II/2): 1.5 kV minimum clearance value - non-homogenous field (II/2): 0.5 mm minimum creepage distance (II/2): 1.6 mm

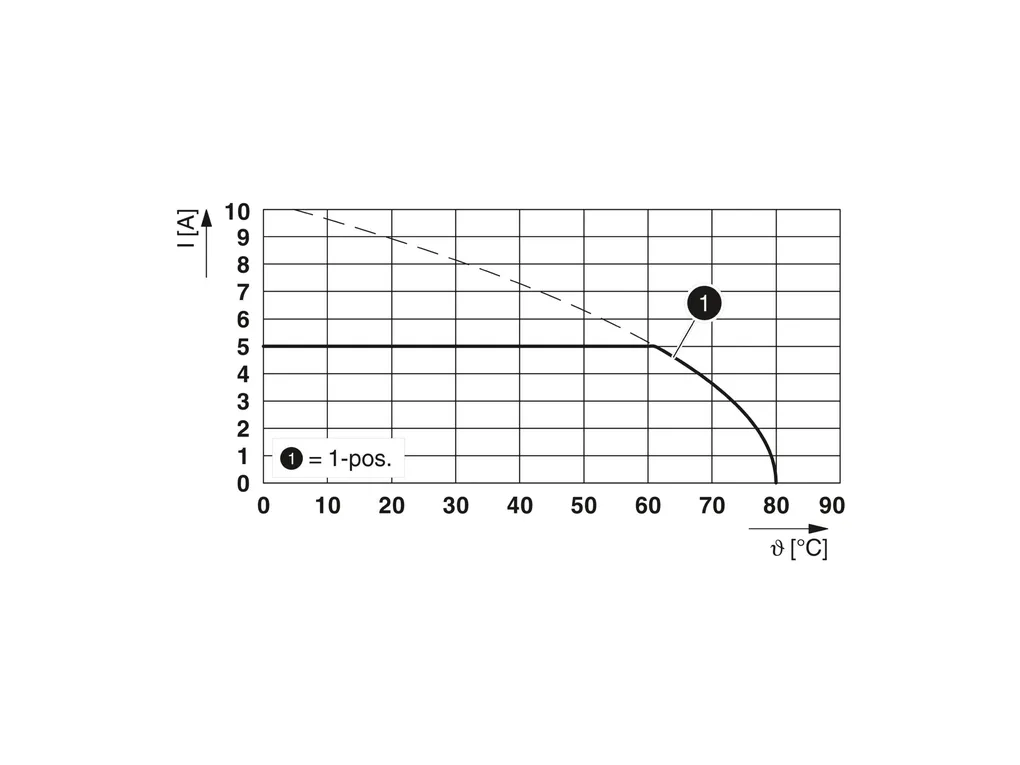

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1 octave/min Amplitude: 0.35 mm (10 Hz ... 60.1 Hz) Acceleration: 50 m/s² (60.1 Hz ... 150 Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 5.3 mÃ© Contact resistance R₂: 4.7 mÃ© Insertion/withdrawal cycles: 100 Insulation resistance, neighboring positions: > 5 MÃ© Climatic test Specification: ISO 6988:1985-02 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40 °C/1 cycle Thermal stress: 80 °C/168 h Power-frequency withstand voltage: 1.39 kV Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 300 m/s² Shock duration: 18 ms Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (storage/transport): -30 °C ... 70 °C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5 °C ... 80 °C Ambient temperature (installation): -40 °C ... 80 °C (dependent on the derating curve) Ambient temperature (mobile installation): -30 °C 80 °C dependent on the derating curve
Packaging specifications	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/95342/full/b1500?format=jpg Type of packaging: 24 mm wide tape [W] tape width: 24 mm [W2] coil overall dimension: 30.4 mm [A] coil diameter: 330 mm Outer packaging type: Transparent-Bag ESD level: (D) electrostatically conductive Specification: DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07
