1152030 PHOENIX CONTACT -

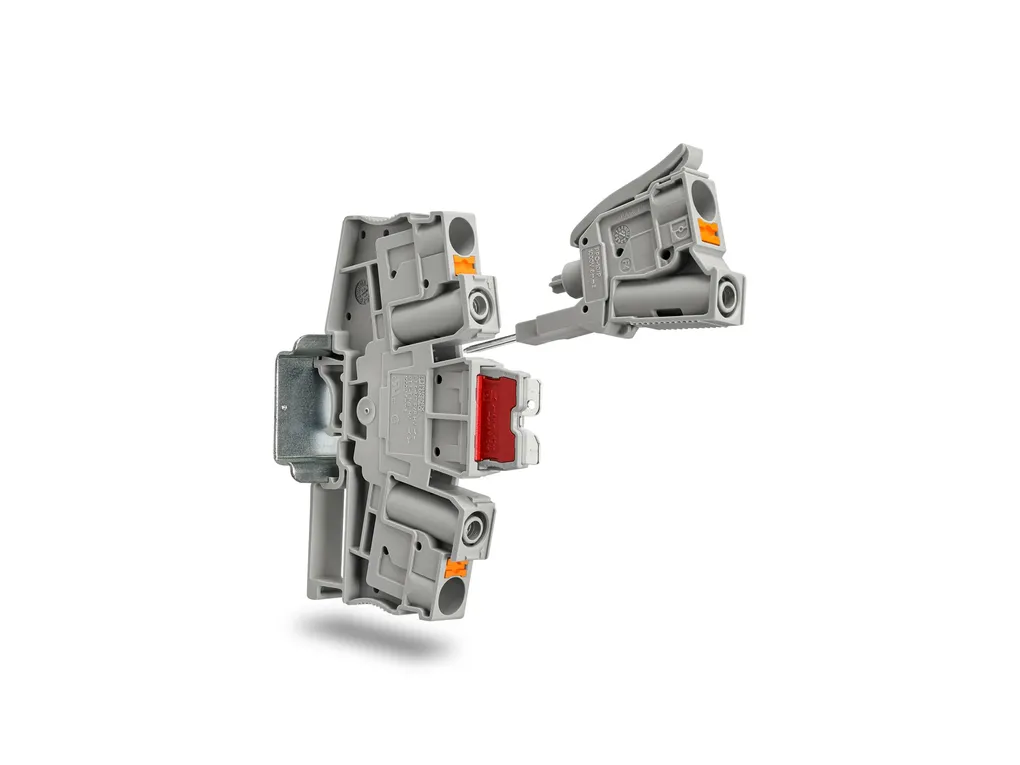

PPO-10/P OG - Pick-off terminal block

Pick-off terminal block, nom. voltage: 1000 V, nominal current: 32 A, number of connections: 2, connection method: Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: Plug-in mounting, color: orange

Cod. Articolo: 1152030 copia - copy

Cod. Fornitore: 1152030 copia - copy

PHOENIX CONTACT

Product properties	Product type: Pick-off terminal Number of connections: 2 Number of rows: 1 Data management status Article revision: 01 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.31 W
Connection data	Number of connections per level: 2 Nominal cross section: 6 mm² 1 level Stripping length: 10 mm ... 12 mm Internal cylindrical gage: A5 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 10 mm² Cross section AWG: 20 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 2.5 mm² When using TWIN ferrules, we recommend a minimum ferrule length of 13 mm. Nominal current: 32 A Maximum load current: 32 A Nominal voltage: 1000 V Nominal cross section: 6 mm² 1 level Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 10 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 1.5 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1.5 mm² ... 6 mm²
Dimensions	Width: 10.2 mm Height: 35.2 mm Depth: 69.26 mm
Material specifications	Color: orange (RAL 2003) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: Plug-in mounting
