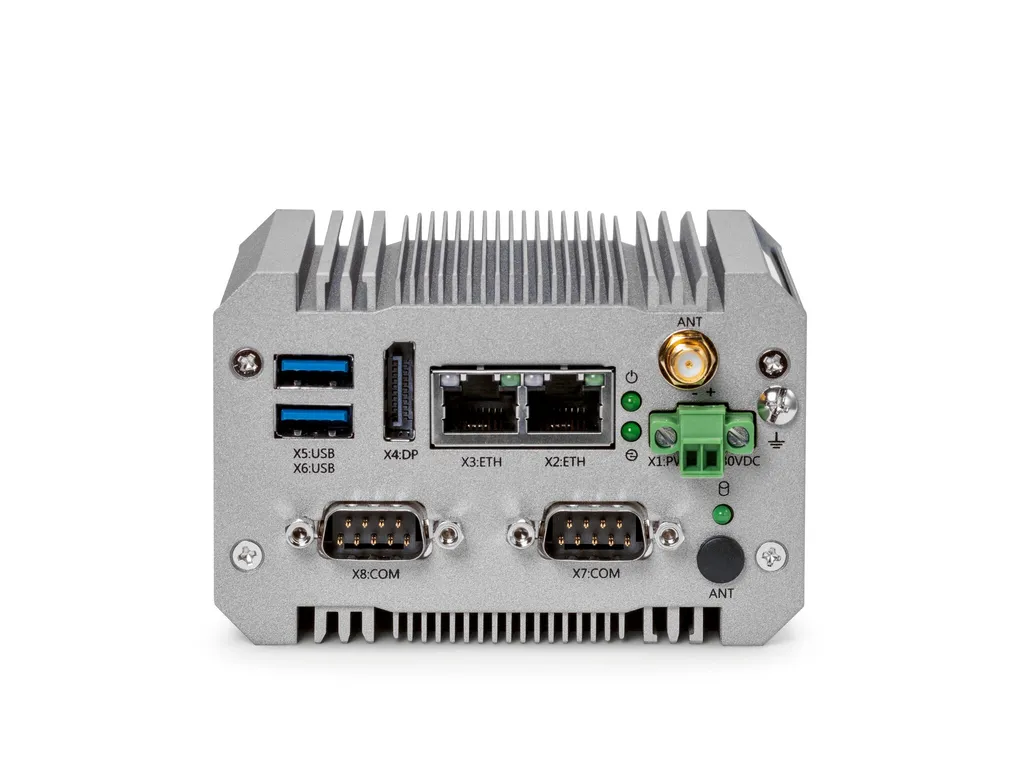

| Product properties | Product type: Box PC Computer data Processor: Intelî Celeronî N3350 1.10/2.4ÃGHz Operating system: Windowsî 10 IoT Enterprise LTSC 2019 (64-bit), Multi-language Cooling: passive RAM: 4 GB LPDDR4 Data storage system: eMMC internal, 32ÃGB 128 GB M.2 SSD Display Display type: none |
| System properties | User software: without user software |
| Electrical properties | Maximum power dissipation for nominal condition: 16.8 W Supply Supply voltage (DC): 24 VÃDC (CE rating) Supply voltage range: 12 VÃDC ... 30 VÃDC (Labeled operational voltage is 12 â⬦ 30ÃVÃDC) Max. current consumption: 0.7 A (24ÃVÃDC) Typical current consumption: 0.53 A (24ÃVÃDC) |
| Connection data | Screw connection Connection method: Screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 25 ... 14 |
| Interfaces | Interfaces: 1x DP++ 2x USB 3.0 2x COM ports 1x Wireless LAN Network: 2x Ethernet (10/100/1000 Mbps), RJ45 LAN chipset: Intelî I210-AT |
| Dimensions | External dimensions Width / Height / Depth: 99 mm / 92 mm / 63 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 Ambient temperature (operation): -20°C ... 50°C (with 0.5 m/s airflow) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 85 % (non-condensing) Shock: 15g, 11 ms in accordance with IEC 60068-2-27 Vibration (operation): 1g, according to ENÃ60068-2-6 |
| Approvals | Conformity/Approvals Conformance: CE-compliant FCC: Title 47 Part 15 Subpart B:2018 Class A |
| Mounting | Mounting type: DIN rail mounting Wall mounting (Accessories required) |
