PHOENIX CONTACT 1172135
PHOENIX CONTACT 1172135
PHOENIX CONTACTNon disponibile

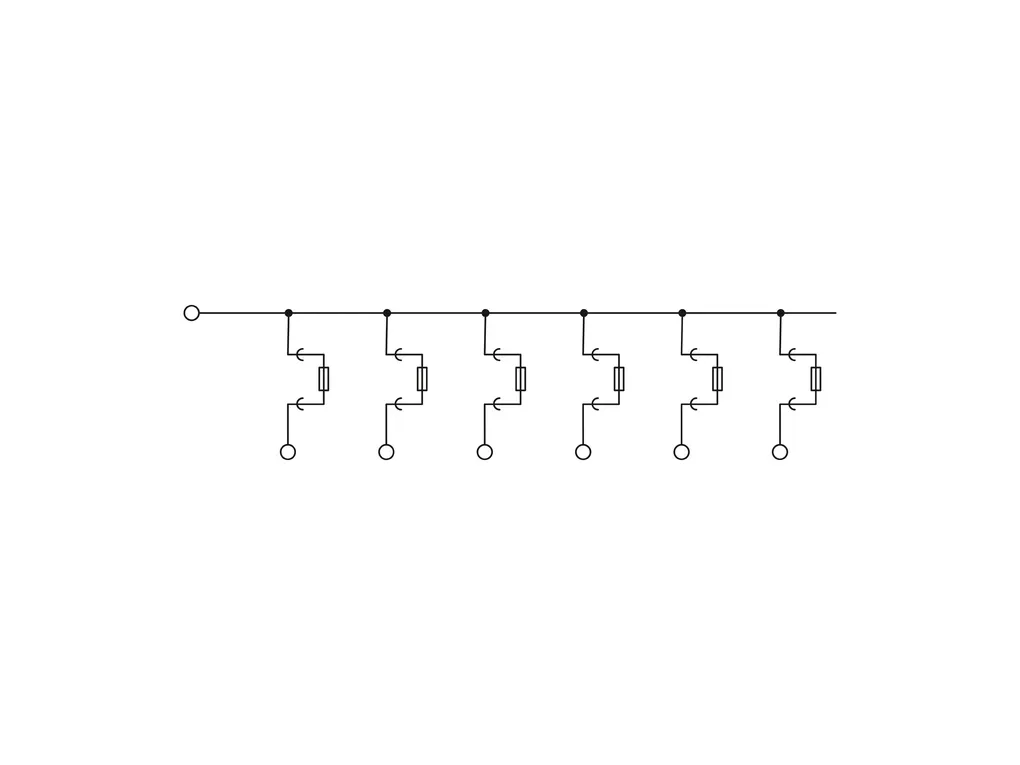

PTFIX 10/6X4-SI (5X20) - Distribution block

Distribution block, fuse type: G / 5 x 20, nom. voltage: 250 V, nominal current: 6.3 A, connection method: Push-in connection, Load contact, Rated cross section: 4 mm2, cross section:0.2 mm2- 6 mm2, connection method: Push-in connection, Line contact, Rated cross section: 10 mm2, cross section:0.5 mm2- 16 mm2, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black
Cod. Articolo: 1172135 copia - copy
Cod. Fornitore: 1172135 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral
Note: The current is determined by the fuse used, the voltage by the fuse or selected light indicator.
The maximum load current of a single clamping unit must not be exceeded.
For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DINÂVDEÂ0100-430:2010-10) sectionÂ433.2 ff must be observed!
Product propertiesProduct type: Distributor terminal block
Number of connections: 7
Number of rows: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical propertiesRated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 1.02 W
Fuse: G / 5 x 20
Maximum power dissipation: max. 1.6 W (with single arrangement of the fuse terminal block in the event of overload)
max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit)
max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
Connection dataNumber of connections per level: 7
Load contact
Stripping length: 10 mm ... 12 mm
Internal cylindrical gage: A4
Connection in acc. with standard: IEC 60947-7-3
Conductor cross section rigid: 0.2 mm² ... 6 mm²
Cross section AWG: 24 ... 10 (converted acc. to IEC)
Conductor cross section flexible: 0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]: 24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.2 mm² ... 0.4 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.2 mm² ... 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm²
Nominal current: 6.3 A (the current is determined by the fuse used)
Maximum load current: 6.3 A (with 4Âmm² conductor cross section)
Maximum total current: 37.8 A (The maximum load current of the individual terminal point must not be exceeded.)
Nominal voltage: 250 V (the voltage is determined by the fuse used)
Nominal cross section: 4 mm²
Line contact
Stripping length: 12 mm ... 14 mm
Conductor cross section rigid: 0.5 mm² ... 16 mm²
Cross section AWG: 20 ... 6 (converted acc. to IEC)
Conductor cross section flexible: 0.5 mm² ... 10 mm²
Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 4 mm²
Nominal current: 37.8 A
Maximum load current: 37.8 A (with 10 mm² conductor cross section)
Maximum total current: The maximum load current of the individual terminal point must not be exceeded.
Nominal cross section: 10 mm²
Load contact Connection cross sections directly pluggable
Conductor cross section rigid: 0.5 mm² ... 6 mm²
Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 4 mm²
Line contact Connection cross sections directly pluggable
Conductor cross section rigid: 1.5 mm² ... 10 mm²
Conductor cross section, rigid [AWG]: 16 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 1.5 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 1.5 mm² ... 10 mm²
DimensionsWidth: 87.8 mm
Height: 28.6 mm
Depth: 35.4 mm
Material specificationsColor: black
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Static insulating material application in cold: -60°C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C
Relative insulation material temperature index (Elec., UL 746 B): 130°C
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162): passed
Specific optical density of smoke NFPA 130 (ASTM E 662): passed
Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical propertiesMechanical data
Open side panel: No
Environmental and real-life conditionsOscillation/broadband noise
Specification: DINÂENÂ50155 (VDEÂ0115-200):2018-05
Spectrum: Service life test categoryÂ2, bogie-mounted
Frequency: f1 = 5 Hz to f2 = 250 Hz
ASD level: 6.12 (m/s²)²/Hz
Acceleration: 3.12g
Test duration per axis: 5 h
Test directions: X-, Y- and Z-axis
Result: Test passed
Shocks
Specification: DINÂENÂ50155 (VDEÂ0115-200):2018-05
Pulse shape: Half-sine
Acceleration: 30g
Shock duration: 18Âms
Number of shocks per direction: 3
Test directions: X-, Y- and Z-axis (pos. and neg.)
Result: Test passed
Ambient conditions
Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Âh, -60°C to +70°C)
Ambient temperature (assembly): -5°C ... 70°C
Ambient temperature (actuation): -5°C ... 70°C
Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulationsConnection in acc. with standard: IEC 60947-7-3
MountingMounting type: for snapping onto a DIN rail adapter
Direct mounting with flange
Free-hanging
