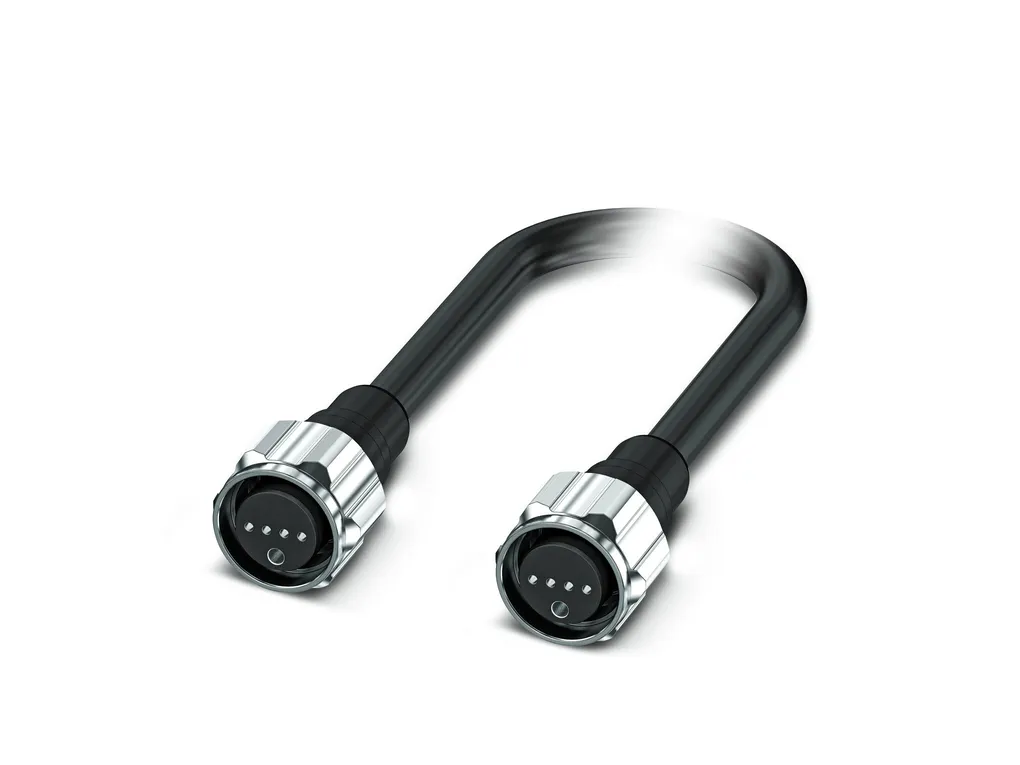

| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 2 Application: Standard Cable outlet: straight |
| Electrical properties | Transmission medium: PCF fiber Transmission speed: 100 Mbps |
| Connector | Connection 2 Type: Plug |
| Cable/line | Cable length: 13.00 m Cable weight: 45 kg/km Short symbol: AT-V(ZN)YY 2K200/230 HCS External cable diameter: 7.2 mm Outer sheath, material: PVC External sheath, strain relief elements: Non-metallic, aramide fiber Single wire, number of litz wires: 2 Single wire, material: PVC Individual wire diameter: 2.2 mm ñ0.1Ãmm Tensile strength short-term/long-term: 800 N / 100 N Lateral pressure short term: 500 N/cm Lateral pressure, long-term: 300 N/cm Bending radius, single element: 30 mm (Short-term) Bending radius, entire cable: 70 mm (Short-term) 660 nm: 10 dB/km 850 nm: 8 dB/km Resistance to oil: very good oil and chemical resistance Behavior in fire: Flame-resistant as per IEEE and IEC 60 332-3 test type C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 |
