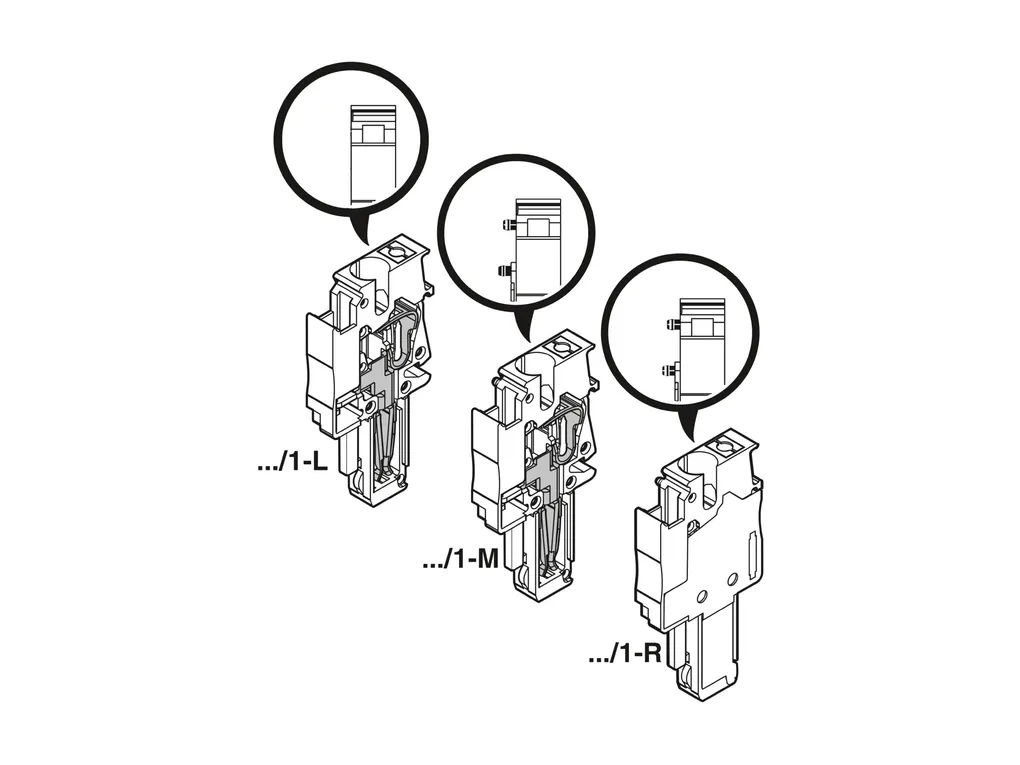

| Product properties | Product type: Terminal plug Area of application: Railway industry Machine building Plant engineering Number of positions: 1 Pitch: 3.5 mm Number of connections: 1 Number of rows: 1 Type: other Potentials: 1 Data management status Article revision: 00 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 0.56 W |
| Connection data | Number of connections per level: 1 Nominal cross section: 1.5 mm² 1 level Stripping length: 8 mm ... 10 mm Internal cylindrical gage: A1 / B1 Connection in acc. with standard: IEC 61984 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Cross section AWG: 26 ... 16 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section, flexible [AWG]: 26 ... 16 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 1.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 1 mm² Nominal current: 17.5 A (observe derating) Maximum load current: 17.5 A (with 1.5 mm² conductor cross section) Nominal voltage: 500 V Nominal cross section: 1.5 mm² 1 level Connection cross sections directly pluggable Conductor cross section rigid: 0.25 mm² ... 1.5 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 1.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 1 mm² |
| Dimensions | Width: 3.5 mm Height: 16.5 mm Depth: 31.3 mm Pitch: 3.5 mm |
| Material specifications | Color: gray (RAL 7042) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA |
| Mechanical properties | Mechanical data Open side panel: Yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60 °C (max. operating temperature see derating curve) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 61984 |
| Mounting | Assembly note: Use of a parallel pressing tool is recommended for easy latching of the COMBI connector and coupling elements for self-assembly |
