| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Application: Standard, U.S. cables Shielded: yes Coding: A |
| Interfaces | Bus system: Ethernet Signal type/category: Ethernet CAT5e, 1 Gbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 2 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) Transmission medium: Copper |
| Material specifications | Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Plug angled M12 / IP65 Coding type: A (Standard) Degree of protection: IP65 Connection 2 Type: Plug angled M12 / IP65 Coding type: A (Standard) Degree of protection: IP65 |

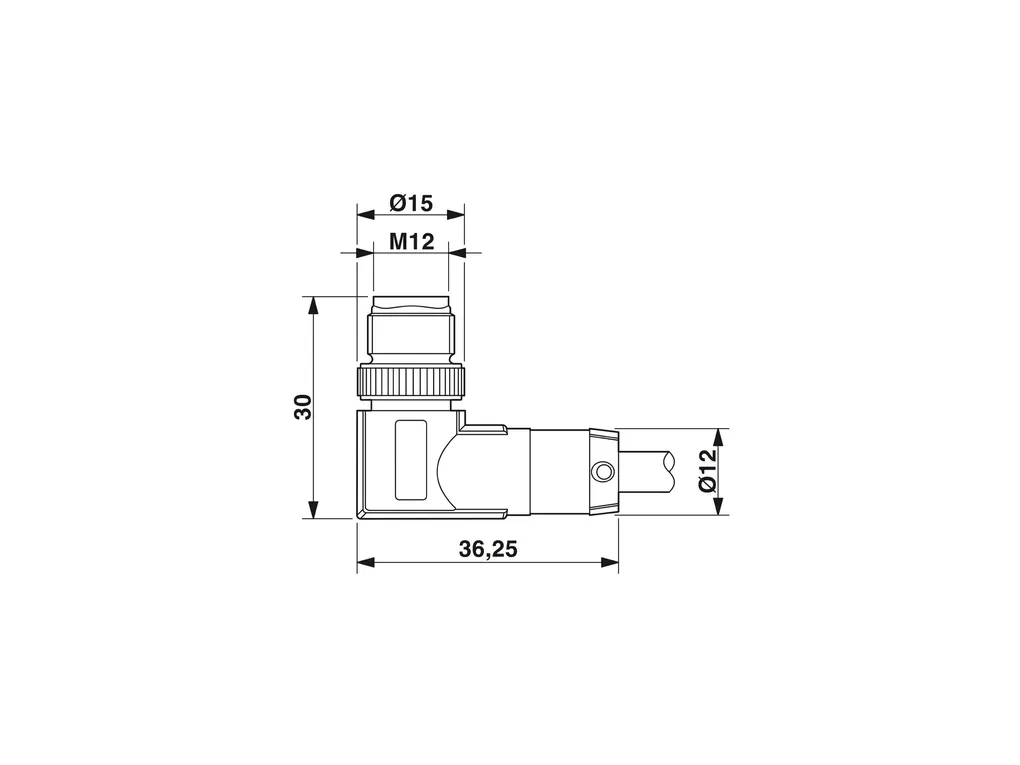

| Cable/line | Cable length: 0.5 m Highly flexible Ethernet CAT5eÃ[94L] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG UL AWM Style: 2463 (80°C / 600 V) Number of positions: 8 Shielded: yes Cable type: Highly flexible Ethernet CAT5eÃ[94L] Conductor structure: 4x2xAWG24/7; SF/UTP Conductor structure signal line: 7x 0.20 mm (7x32) AWG signal line: 24 Conductor cross section: 4x 2x 0.2 mm² Wire diameter incl. insulation: 1.2 mm External cable diameter: 7.4 mm ñ0.25Ãmm Outer sheath, material: TPE External sheath, color: Teal Conductor material: Tin-plated Cu litz wires Material wire insulation: PE Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Optical shield covering: 75 % Wave impedance: 100 é ñ15Ãé (at 100 MHz) Cable impedance: 100 é ñ15Ãé (at 1 ... 100 MHz) Nominal voltage, cable: 600 V Test voltage: 2000 V Max. bending cycles: 1000000 10000000 (126 cycles/min. @ 20°C) Torsion force: 360°/m (1 lb. load) Torsion cycles: 4800000 Torsional frequency: 71 (cycles/min) Ambient temperature (operation): 20°C -40°C ... 80°C (Cable, flexible installation) Near end crosstalk attenuation (NEXT): 50 dB (with 100 MHz (IEC 62153-4-9)) Return attenuation (RL): 20 dB (at 10 Ãà Hz (+6LOG)) 26 dB (at 20ÃÃà Hz) 26 dB (at 100 MHz (-5LOG)) Flame resistance: VW-1 Other resistance: Resistant to welding splashes Abrasion and oil resistance UV resistant CMX outdoor |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 85°C (M12 connector) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
